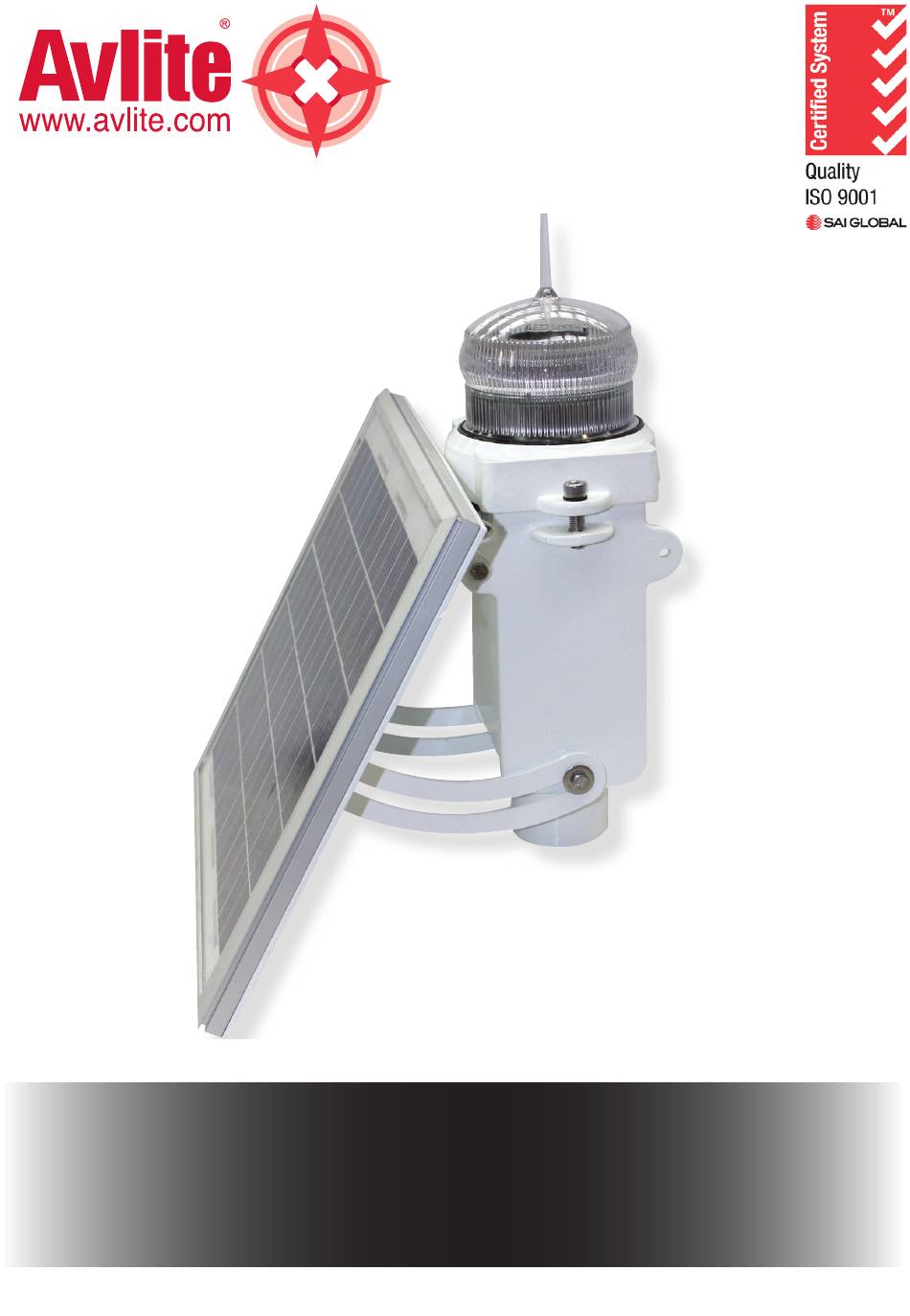

- Page 1 AV23 Solar Obstruction Light Installation & Service Manual Version 2.2...
- Page 2 AV23 Solar Obstruction Light Interchangeable LED flasher unit, and replaceable lens assembly Large 10watt adjustable tilt solar module to maximise solar radiation collection for charging the battery User-replaceable battery in large high-impact resistant housing...
-
Page 3: Table Of Contents
Flash Codes ..................Page 9 Maintenance and Servicing ..............Page 14 Troubleshooting ................Page 15 Avlite Light Warranty .................Page 18 Version No. Description Date Approved Manual Update July 2010 K. Paton Updated light head November 2010 M. Henry Latest products and information available at www.avlite.com... -
Page 4: Introduction
Precision Construction Commitment to investing in the design and construction of injection-moulded parts including optic lenses, light bases and a range of other components ensures that all Avlite products are of a consistent and superior quality. Optical Performance Avlite manufactures a range of aviation LED lenses moulded from multi-cavity dies. -
Page 5: Av23 Model

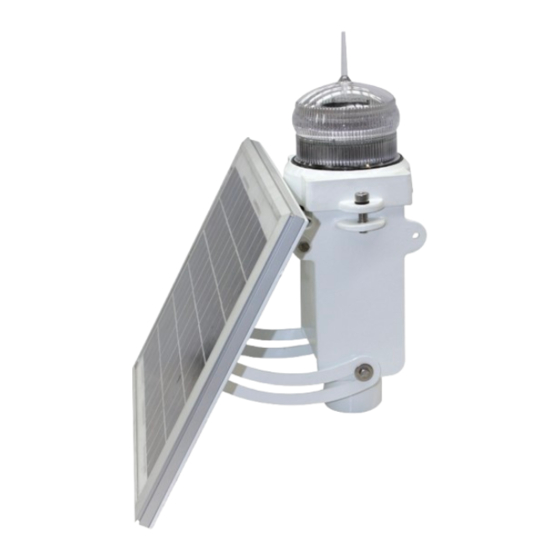

AV23 Solar Obstruction Light AV23 Model The AV23 is a low intensity solar-powered obstruction light designed to offer users years of maintenance-free operation. The unit is completely self-contained and incorporates a large 10watt solar module, 7.5Ah battery, LED light source and advanced driving circuitry. - Page 6 Quality Assurance ISO9001:2008 Intellectual Property Patents US Pat. No. 6,667,582. AU Pat. No. 778,918 Trademarks AVLITE® is a registered trademark of Avlite Systems Warranty * Full 3 year warranty Options Available • 200mm OD mounting plate (AV/04) • IR (AV23.IR) •...
-
Page 7: Installation
Care must be taken to observe the polarity of each wire before they are connected. To ensure waterproofing of the unit, make sure that no wires are protruding and that there is an even seal when reattaching the lens cover to the unit body. Latest products and information available at www.avlite.com... -
Page 8: Selecting An Intensity/Power Setting
AV23 Solar Obstruction Light Selecting an Intensity/Power Setting Pulse settings on Avlite lights operate via DIP switches, located near the rotary switches on the flasher unit. The pulse settings may be used to reduce the power consumption and intensity of the light. -
Page 9: Flash Codes
It is best to operate at the lowest duty cycle appropriate to the actual needs of the application. Please note, Avlite models will retain full autonomy in normal operating conditions with duty-cycles up to approximately 30%. In applications whereby duty cycles exceed this limit, a reduction in light intensity is recommended. - Page 10 FL 5 S FL 15 S 14.0 FL 5 S LFL 15 S 11.0 FL 5 S OC 15 S FL 5 S LFL 20 S 18.0 FL 5 S FL 26 S 25.0 Latest products and information available at www.avlite.com...
- Page 11 15.0 FL (2) 25 S 22.0 SWITCH FLASH CODE Q (3) 5 S VQ (3) 5 S VQ (3) 5 S VQ (3) 5 S FL (3) 6 S FL (2+1) 6 S Latest products and information available at www.avlite.com...
- Page 12 FL (4) 20 S FL (4) 20 S 13.5 FL (4) 20 S 10.5 FL (4) 20 S Q (4) 20 S 16.5 Q (4) 28 S 24.5 FL (4) 30 S 26.5 Latest products and information available at www.avlite.com...
- Page 13 MO (A) 10 S MO (D) 10 S MO (A) 15 S 11.0 MO (U) 15 S 11.8 MO (U) 15 S 10.7 MO (U) 15 S 10.1 MO (B) 15 S 10.5 Latest products and information available at www.avlite.com...
-
Page 14: Maintenance And Servicing
Always discard old batteries in a safe manner. Long Term Storage Instructions If the AV23 is to be placed in storage for an extended period, being more than 5 months, please follow the below steps. -
Page 15: Troubleshooting
• Expose light to direct sunlight and monitor operation for several days. entire night. Avlite products typically require 3.0 hours of direct sunlight per day to retain full autonomy. From a discharged state, the light may require several days of operational conditions to ‘cycle’ up to full autonomy. - Page 16 AV23 Solar Obstruction Light Notes Latest products and information available at www.avlite.com...
- Page 17 AV23 Solar Obstruction Light Notes Latest products and information available at www.avlite.com...
-
Page 18: Avlite Light Warranty
Avlite or authorised Avlite repair personnel. - Page 19 5. No modifications to the original specifications determined by Avlite shall be made without written approval of Avlite Systems. 6. Avlite lights can be fitted with 3rd party power supplies and accessories but are covered by the 3rd party warranty terms and conditions.
- Page 20 • Barricade, hazard & perimeter lighting • Obstruction Lighting Area & Sign Lighting For a complete list of product compliances including ICAO & FAA, please contact Avlite today Head Office Avlite Systems Tel: +61 (0)3 5977 6128 Fax: +61 (0)3 5977 6124...
