1 Product overview

®
The flashlink HD-EO-2 is a dual multi bit-rate electrical to optical converter
module providing high performance media conversion for various signal
formats from 19.4Mbps up to 1485Mbps. Unmatched signal accuracy, even
in critical applications with pathological signal patterns makes the HD-EO-2
the first choice for all optical transport demands.
The HD-EO-2 can transport all HD and SD signal formats in addition to DVB-
ASI and SMPTE 310. It performs electrical equalizing and signal reclocking,
both selectable on application. High quality optical transmitters using Fabry-
Perot lasers are suitable short and medium haul applications. The open system
®
platform of Network Electronics flashlink system allows easy interoperability
with third party fiber optical systems.
The HD-EO-2 unit has also one electrical output for each channel, which
reduces the need for additional DA's. The electrical input is equipped with a
multi rate cable equalizer providing an equalization of typically 100m of high
quality coax cable at 1485Mbps.

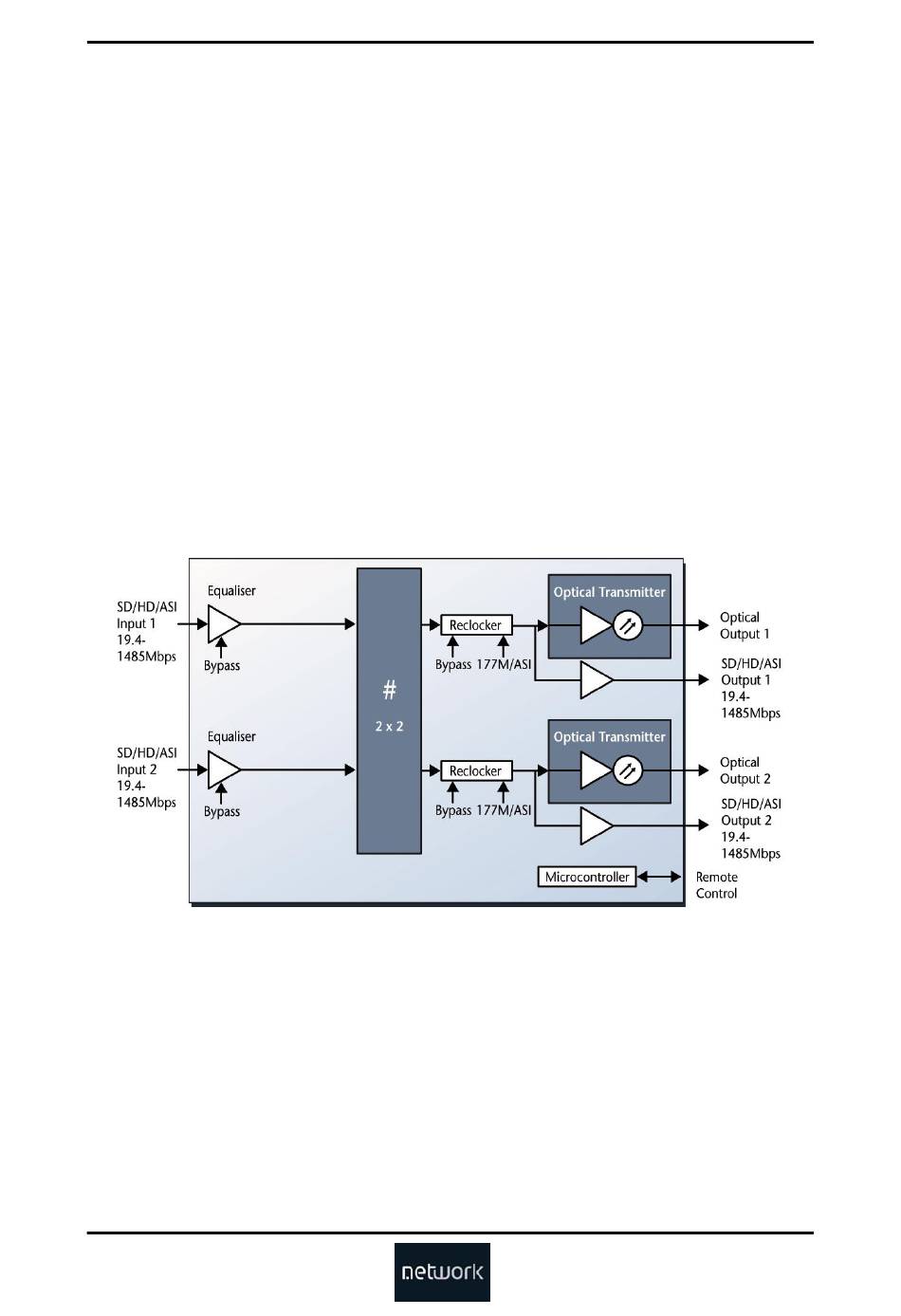

Figure 1: HD-EO-2 Dual High Definition E/O converter.
