HD-EO-2

5 Module status

The status of the module can be monitored in three ways.
1. GYDA System Controller (optional).
2. GPI at the rear of the sub-rack.
3. LED's at the front of the sub-rack.
Of these three, the GPI and the LED's are mounted on the module itself,
whereas the GYDA System Controller is a separate module giving detailed
information on the card status. The functions of the GPI and the LED's are
described in sections 5.1 and 5.2. The GYDA controller is described in a
separate user manual.
5.1 GPI Alarm – Module status outputs
These outputs can be used for wiring up alarms for third party control
systems. The GPI outputs are open collector outputs, sinking to ground when

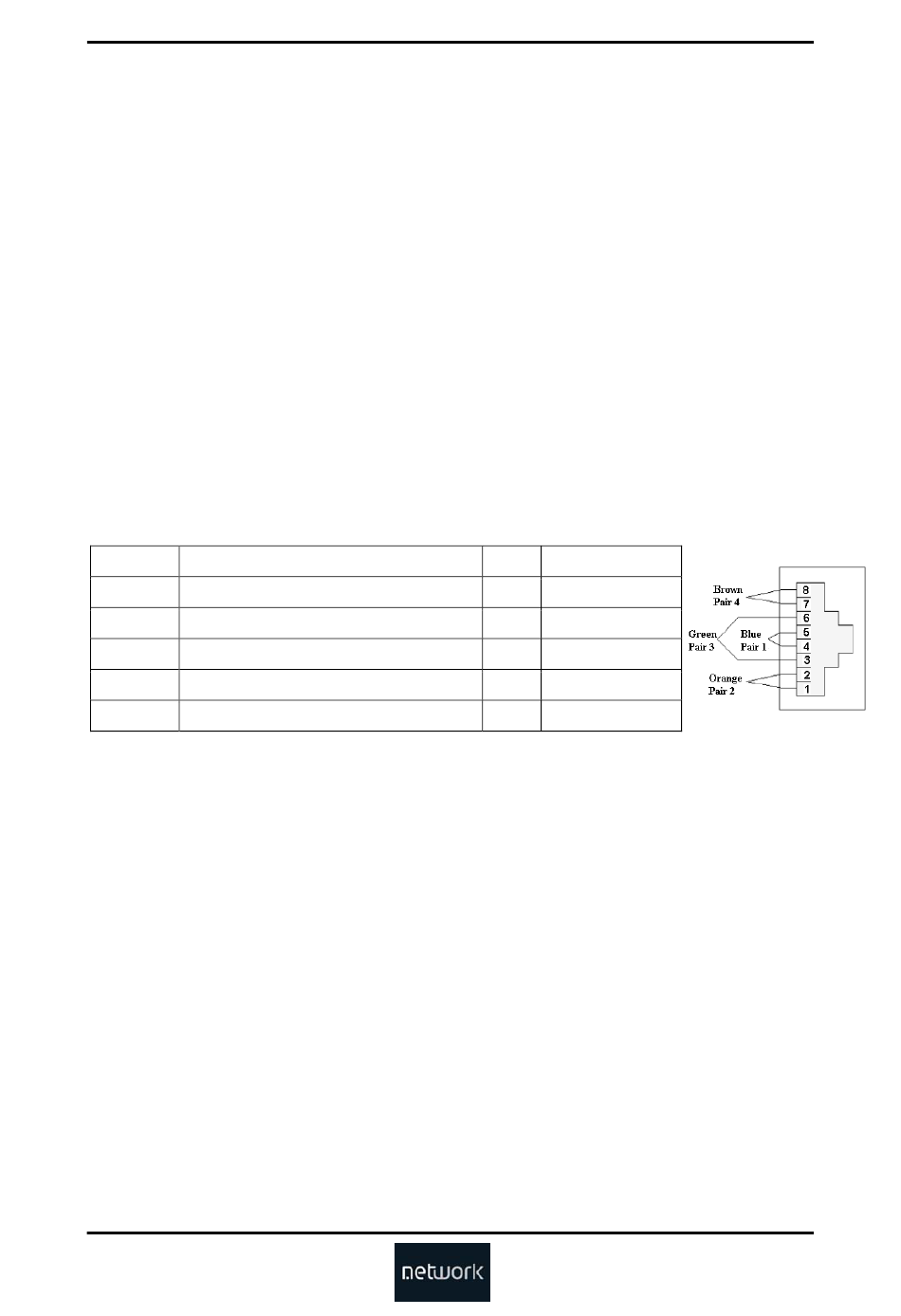

an alarm is triggered. The GPI connector is shown in figure below.
HD-EO-2 module GPI pinning:
Signal Name
Status General error status for the module
LOS1 Loss of Signal 1
LOS2 Loss of Signal 2
Laser fail Laser fail
Ground 0 volt pin
Electrical Maximums for GPI outputs
Max current: 100mA
Max voltage: 30V
Pin # Mode
Pin 1 Open Collector
Pin 2 Open Collector
Pin 3 Open Collector
Pin 4 Open Collector
Pin 8 0V.
Figure 4: GPI output.
