DLP LightCrafter Single DLPC900 EVM Overview

1.2 DLP LightCrafter Single DLPC900 Evaluation Module (EVM) Hardware

The DLP LightCrafter Single DLPC900 EVM is one half of a complete DMD imaging electronics subsystem. The
DLP LightCrafter Single DLPC900 EVM consists of the single DLPC900 board which includes a single DLPC900
Digital Controller, a digital video receiver, flash memory, power management circuits, and supporting digital logic.
Also needed to complete the imaging subsystem is a DLP LightCrafter Single Controller DMD EVM which is
compatible with the LightCrafter Single DLPC900 EVM. A DMD EVM consists of a DMD, a DMD board (pcb)
containing on-board DMD power circuits, DMD mounting hardware when necessary, and a flexible (pcb) cable
for connections to the Single DLPC900 board.

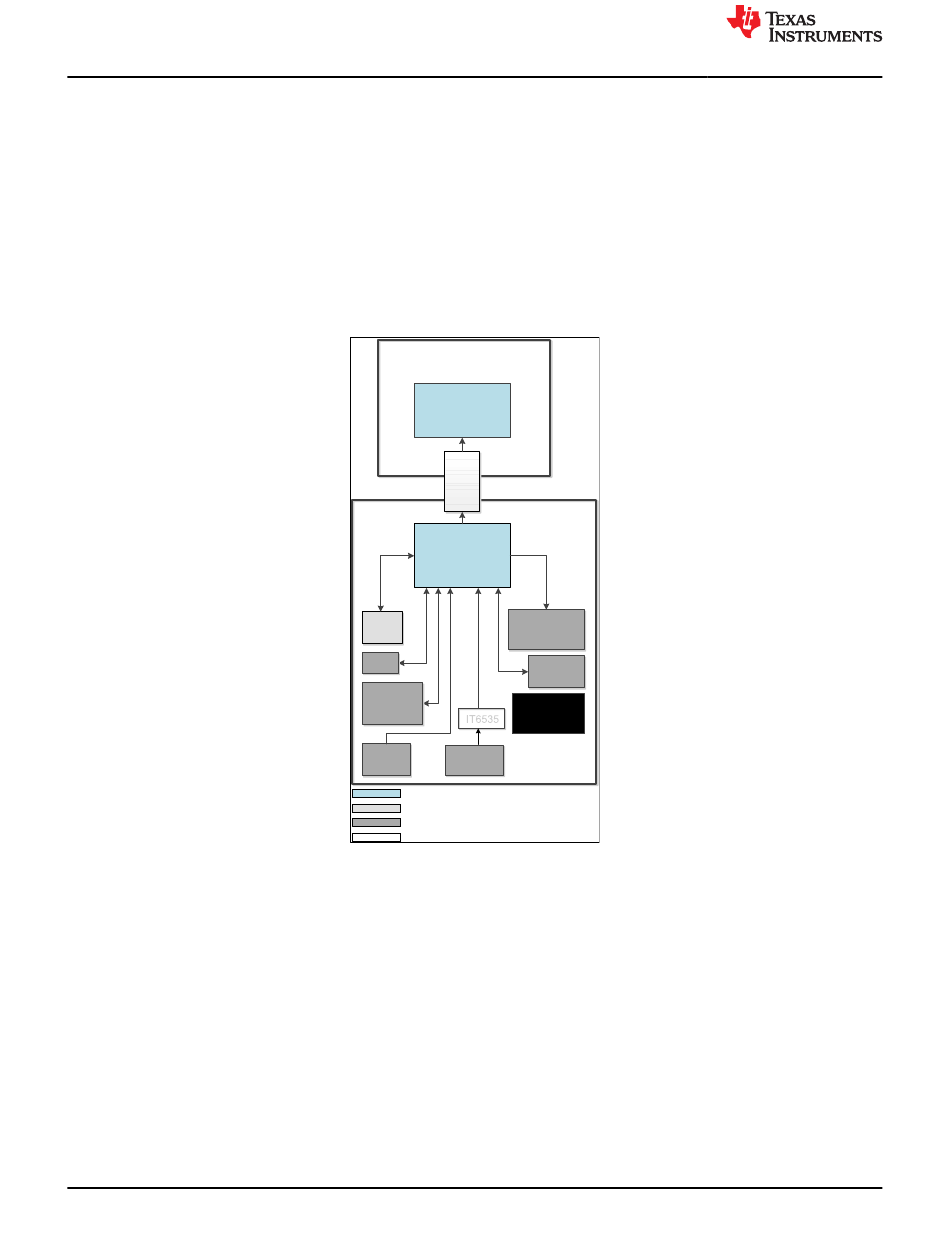

Figure 1-1 is a block diagram outlining the major hardware components of a DLP LightCrafter Single DLPC900
System Hardware Components

Figure 1-1. DLP LightCrafter Single DLPC900 Hardware Components

8 DLP® LightCrafter™ Single DLPC900 Evaluation Module (EVM) User's Guide
Supported
DMD EVM Board
Supported DMD
Cable
DLPC900
LED Enable
Flash
and PWM
2
I C
Host
Connector
JTAG/ICE
IT6535
Management
HDMI
USB DLPC900
DisplayPort
EVM Board
TI DLP chipset TI DLP chipset
Solid state memory Solid state memory
Connectors Connectors
Other Other
Copyright © 2022 Texas Instruments Incorporated
Control
Triggers
Power
Single
