www.ti.com
EVM User's Guide: DLPC4430EVM
DLP
®
Display ≥0.47-in Array WUXGA/1080p/WXGA/XGA/
SVGA Evaluation Module
Description
The DLPC4430EVM provides a design for driving the
above DMDs, and allow for testing of customer front
end systems. The combination of the DLPC4430EVM
with any of these DMD EVMs can display SPLASH,
test patterns or video from HDMI source on the DMD.
The DLPC4430EVM controller evaluation module
(EVM) can accelerate the prototyping time of DLP
1080p (1920x1080), WUXGA (1920x1200), WXGA
(1280x800), XGA (1024x768), and SVGA (800x600)
systems over 2000 lumens when combined with the
DLP650NEEVM, DLP780NEEVM, DLP470NEEVM,
DLP670REEVM, DLP800REEVM, DLP480REEVM,
DLP550JEEVM, DLP550HEEVM, or DLP650LEEVM
digital micromirror device (DMD) EVMs.
Get Started
1. Order
DLPC4430
chipset EVMs (controller and
DMD) and an applicable power supply.
2. Read this user's guide completely and the
DLPC4430 Software Programmer's Guide.
3. Download the DLPC44xx-GUI and the
DLPC4430EVM-SW from the product page
(DLPC4430).
DLPU127 – DECEMBER 2023
Submit Document Feedback

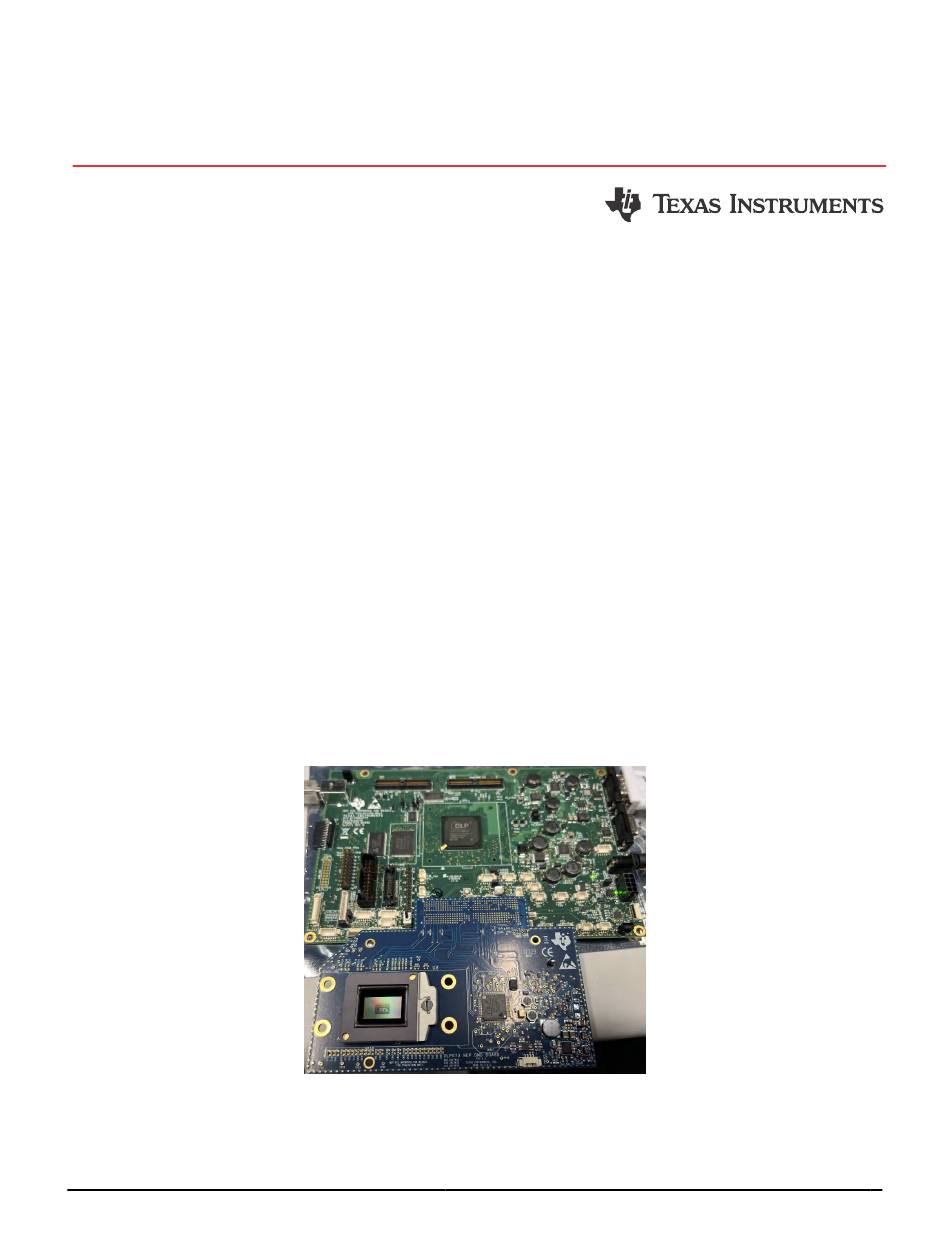

DLP800REEVM and DLPC4430EVM Evaluation Module
Copyright © 2023 Texas Instruments Incorporated
4. Download the DMD EVM and the controller
design
files.
Features
Supports up to WUXGA resolution at 1920x1200
at 120 Hz (2D and 3D)
Designed to be used with a 1080p, WUXGA and
SVGA/XGA/WXGA EVM
Includes one DLPC4430 controller and one
DLPA100 controller PMIC and motor driver
Power supply, optics, illumination source, and
extension cables are not included
Offers several interface options for USB, I2C and
trigger inputs and outputs
Applications
Laser TV
Educational projectors
Digital signage
Gaming machines
Smart lighting
Stage lighting systems
DLP
®
Display ≥0.47-in Array WUXGA/1080p/WXGA/XGA/SVGA Evaluation
Description
EVM
1
Module

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DLPC4430EVM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Texas Instruments DLPC4430EVM

  • Page 1 SVGA Evaluation Module 4. Download the DMD EVM and the controller Description design files. The DLPC4430EVM provides a design for driving the Features above DMDs, and allow for testing of customer front end systems. The combination of the DLPC4430EVM •...
  • Page 2: Kit Contents

    Section 1.5. The DLP Products listed in paired with DLPC4430EVM offer a reference design to enable faster development cycles for users of the DLPC4430 controllers and allow evaluation of DLPC4430 chipsets. The combination of DMD and controller is referred to as a chipset.
  • Page 3: Specification

    Figure 1-3. DLP470NEEVM/DLP480REEVM Figure 1-4. DLP550HEEVM/DLP550JEEVM/ DLP650LEEVM Figure 1-5. DLP650NEEVM/DLP670REEVM 1.3 Specification INPUT PARAMETERS CONDITIONS UNIT Section 3.2 11.4 13.2 DLPU127 – DECEMBER 2023 ® Display ≥0.47-in Array WUXGA/1080p/WXGA/XGA/SVGA Evaluation Submit Document Feedback Module Copyright © 2023 Texas Instruments Incorporated...
  • Page 4: Device Information

    Evaluation Module Overview www.ti.com 1.4 Device Information The DMD EVMs and DLPC4430EVM contain the electronics required to drive any DMD found in Table 1-1. The DLPC4430EVM offers several interface options for USB, I2C, and trigger inputs and outputs. Table 1-1. DMD EVMs...
  • Page 5: Other Items Needed For Operation

    1.5 Other Items Needed for Operation The DMD EVMs and the DLPC4430EVM are capable of displaying images on to the DMD. The EVMs are meant to accelerate initial system design. The EVMs are meant to accelerate initial system design. However, these EVMs do not ship with optics, illumination source, cables, power supplies, or additional hardware components.
  • Page 6: Quick Start

    The EVM needs to look like Figure 2-1 after the FMC cables have been properly connected between the DLP650NEEVM and the DLPC4430EVM. The process is the same for use with the other DMDs seen in . Figure 2-1. EVMs Connected 2.2 Quick Start This section details a quick start guide on how to: •...
  • Page 7 To power up the DLPC4430EVM, a 12 V, 5 A power supply is needed. Make sure the power supply is functional and the switch SW1 on the EVM is set to off before connecting the power supply to the EVM. Connecting the power supply when the switch is in the off position can prevent damage to the DLPC4430EVM from poor power connections.
  • Page 8 Software www.ti.com 2.2.3 Programming the DLPC4430EVM and Displaying a SPLASH Image Follow these steps to download and configure the DLPC44xx GUI: 1. Download and install the associated Firmware SW package. The Projector Control (.projector) and Firmware binary (.img) files are located in the install directory. The same procedure applies to the other supported DMDs within the appropriate firmware install directory.
  • Page 9 Select Open Projector File then select Add. Navigate to the .projector file location installed in step 1. Figure 2-7. Adding DLPC4430 Projector Control File DLPU127 – DECEMBER 2023 ® Display ≥0.47-in Array WUXGA/1080p/WXGA/XGA/SVGA Evaluation Submit Document Feedback Module Copyright © 2023 Texas Instruments Incorporated...
  • Page 10 Once this file is loaded, the user can navigate through the pages to control a DLPC4430 controller. Figure 2-9. DLPC4430 Projector Control Menu ® Display ≥0.47-in Array WUXGA/1080p/WXGA/XGA/SVGA Evaluation DLPU127 – DECEMBER 2023 Module Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
  • Page 11 Check Skip Boot Loader Area only if you need to upgrade the bootloader. Figure 2-11. Downloading Image unto the EVM DLPU127 – DECEMBER 2023 ® Display ≥0.47-in Array WUXGA/1080p/WXGA/XGA/SVGA Evaluation Submit Document Feedback Module Copyright © 2023 Texas Instruments Incorporated...
  • Page 12 Red LED appears after a few seconds. The Red LED shuts off and a green LED begins blinking. After the blinking LED appears, the DLP Texas Instruments logo is visible on the DMD for a few seconds. The DMD appears as seen in...
  • Page 13 J31 on the DLPC4420AEVM and connect the JTAG signals at J37 on the DLPC4420AEVM to the UM232H module as shown in Figure 2-15. Finally, connect the UM232H to the PC with USB cable. DLPU127 – DECEMBER 2023 ® Display ≥0.47-in Array WUXGA/1080p/WXGA/XGA/SVGA Evaluation Submit Document Feedback Module Copyright © 2023 Texas Instruments Incorporated...
  • Page 14 For EVM use with several different flash memory parts, the user can edit the FlashDeviceParameters.txt file to match the flash memory part that has been installed with the EVM. This file is located in the DLPC4430EVM- SW\DLPC44xxGUI_Files of the DLPC4430EVM-SW bundle. An example with the ISSI IS29GL128P part is...
  • Page 15: Troubleshooting

    If communication with the EVM has been lost, then consider re-flashing the bootloader following the JTAG Flash Programming Guide found within the Software package: Section 2.2.4. DLPU127 – DECEMBER 2023 ® Display ≥0.47-in Array WUXGA/1080p/WXGA/XGA/SVGA Evaluation Submit Document Feedback Module Copyright © 2023 Texas Instruments Incorporated...
  • Page 16 Hardware www.ti.com 3 Hardware 3.1 Connections This chapter introduces all the connections and test points available on the DLPC4430EVM, DLP780NEEVM, DLP800REEVM, DLP470NEEVM, DLP480REEVM, DLP550HEEVM, DLP550JEEVM, DLP650LEEVM, DLP650NEEVM, and DLP670REEVM. 3.1.1 DLPC4430EVM Connections Figure 3-1 depicts the switches and connectors with their respective locations. Note that neither cables nor the power supply is included with the module.
  • Page 17 Formatter Only I/F Cable FAN #4 Cable FAN #5 Cable Cable FAN #6 Blue_LED_EN / Lamp Mode Jumper selection Cable LED_EN DLPU127 – DECEMBER 2023 ® Display ≥0.47-in Array WUXGA/1080p/WXGA/XGA/SVGA Evaluation Submit Document Feedback Module Copyright © 2023 Texas Instruments Incorporated...
  • Page 18 Cable FAN #1 Cable FAN #2 Cable Cable FAN #3 Cable 5 V FAN CableBlue_LED_EN / Lamp Mode FMC Connector ® Display ≥0.47-in Array WUXGA/1080p/WXGA/XGA/SVGA Evaluation DLPU127 – DECEMBER 2023 Module Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
  • Page 19: Lamp Control

    TP38 ADC_RST/COMP_PWM TP39 2.5V SWREG TP40 1.8V TP41 SSP0_CSZ2 TP42 3.3V SWREG TP43 12V_FIL TP44 SSP0_CSZ0 TP45 12V_SOURCE TP46 SSP0_CLK DLPU127 – DECEMBER 2023 ® Display ≥0.47-in Array WUXGA/1080p/WXGA/XGA/SVGA Evaluation Submit Document Feedback Module Copyright © 2023 Texas Instruments Incorporated...
  • Page 20 TP55 ADC_RST/COMP_PWM TP56 ADC_SCLK TP57 ADC_SDIN TP58 ADC_SDO TP59 CW2_Potentiometer TP60 CW_INDEX2 CW_INDEX1 TP61 CW1_Potentiometer TP62 TP63 LAMPLITZ_FILTER TP64 ADC_CSZ ® Display ≥0.47-in Array WUXGA/1080p/WXGA/XGA/SVGA Evaluation DLPU127 – DECEMBER 2023 Module Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
  • Page 21 Figure 3-2. DLP780NEEVM/DLP800REEVM Test Points and Connectors 3.1.2.1 DLP780NEEVM/DLP800REEVM Connectors Reference Designator Description Physical Connection Type Cable J500 FMC Connector Cable DLPU127 – DECEMBER 2023 ® Display ≥0.47-in Array WUXGA/1080p/WXGA/XGA/SVGA Evaluation Submit Document Feedback Module Copyright © 2023 Texas Instruments Incorporated...
  • Page 22 TP23 MBRST0 TP24 V_OFFSET TP25 VRESET_RAIL TP26 VBIAS TP27 VRESET_DAD TP30 PROG_FUSE_EN TP33 SCP_TEST_MUX TP37 TEMP_ALERT TP38 THERMAL_FLAG TP41 VRESET_EXT ® Display ≥0.47-in Array WUXGA/1080p/WXGA/XGA/SVGA Evaluation DLPU127 – DECEMBER 2023 Module Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
  • Page 23 TP23- TP26 TP28 TP27 TP10 J500 Figure 3-3. DLP470NEEVM/DLP480REEVM Test Points and Connectors DLPU127 – DECEMBER 2023 ® Display ≥0.47-in Array WUXGA/1080p/WXGA/XGA/SVGA Evaluation Submit Document Feedback Module Copyright © 2023 Texas Instruments Incorporated...
  • Page 24 Reference Designator Description DMD_P3P3V DMD_P1P8V VOFFSET EN_OFFSET VRESET VBIAS PG_OFFSET TP10 TP23 BIST_A TP24 BIST_B TP25 BIST_C TP26 BIST_D TP27 TP28 ® Display ≥0.47-in Array WUXGA/1080p/WXGA/XGA/SVGA Evaluation DLPU127 – DECEMBER 2023 Module Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
  • Page 25 Physical Connection Type J500 FMC Connector Cable 3.1.4.2 DLP550HEEVM/DLP550JEEVM/DLP650LEEVM Test Points Reference Designator Description MBRST8 MBRST15 MBRST0 VBIAS VCC2 VRESET DLPU127 – DECEMBER 2023 ® Display ≥0.47-in Array WUXGA/1080p/WXGA/XGA/SVGA Evaluation Submit Document Feedback Module Copyright © 2023 Texas Instruments Incorporated...
  • Page 26 TP23, TP1, TP2, TP20, TP13 TP14 TP31 TP5, TP6, TP24, TP26 TP34- TP37 Figure 3-5. DLP650NEEVM/DLP670REEVM Test Points and Connectors ® Display ≥0.47-in Array WUXGA/1080p/WXGA/XGA/SVGA Evaluation DLPU127 – DECEMBER 2023 Module Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
  • Page 27: Power Supply Requirements

    TP37 M_SSP1_RXD TP38 MODE_B 3.2 Power Supply Requirements 3.2.1 External Power Supply Requirements The DLPC4430EVM does not include a power supply. The external power supply requirements are: • Nominal voltage: 12-V DC -5%/+10% • Maximum Output Current: 7 A •...
  • Page 28: Additional Information

    4 Hardware Design Files 4.1 Schematics Please see design files referenced in controller or associated DMD on the product page of DLPC4430EVM. 4.2 PCB Layouts Please see design files referenced in controller or associated DMD on the product page of DLPC4430EVM.
  • Page 29: Related Documentation

    DLPA300 Data Sheet: DLPA300 DLP HEP DMD Driver, DLPS227 TPS65145 Data Sheet: TPS65145 Triple Output LCD Supply with Linear Regulator and Power, DLPS053 DLPU127 – DECEMBER 2023 ® Display ≥0.47-in Array WUXGA/1080p/WXGA/XGA/SVGA Evaluation Submit Document Feedback Module Copyright © 2023 Texas Instruments Incorporated...
  • Page 30 STANDARD TERMS FOR EVALUATION MODULES Delivery: TI delivers TI evaluation boards, kits, or modules, including any accompanying demonstration software, components, and/or documentation which may be provided together or separately (collectively, an “EVM” or “EVMs”) to the User (“User”) in accordance with the terms set forth herein.
  • Page 31 www.ti.com Regulatory Notices: 3.1 United States 3.1.1 Notice applicable to EVMs not FCC-Approved: FCC NOTICE: This kit is designed to allow product developers to evaluate electronic components, circuitry, or software associated with the kit to determine whether to incorporate such items in a finished product and software developers to write software applications for use with the end product.
  • Page 32 www.ti.com Concernant les EVMs avec antennes détachables Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à...
  • Page 33 www.ti.com EVM Use Restrictions and Warnings: 4.1 EVMS ARE NOT FOR USE IN FUNCTIONAL SAFETY AND/OR SAFETY CRITICAL EVALUATIONS, INCLUDING BUT NOT LIMITED TO EVALUATIONS OF LIFE SUPPORT APPLICATIONS. 4.2 User must read and apply the user guide and other available documentation provided by TI regarding the EVM prior to handling or using the EVM, including without limitation any warning or restriction notices.
  • Page 34 Notwithstanding the foregoing, any judgment may be enforced in any United States or foreign court, and TI may seek injunctive relief in any United States or foreign court. Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2023, Texas Instruments Incorporated...
  • Page 35: Important Notice

    TI products. TI’s provision of these resources does not expand or otherwise alter TI’s applicable warranties or warranty disclaimers for TI products. TI objects to and rejects any additional or different terms you may have proposed. IMPORTANT NOTICE Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2023, Texas Instruments Incorporated...
