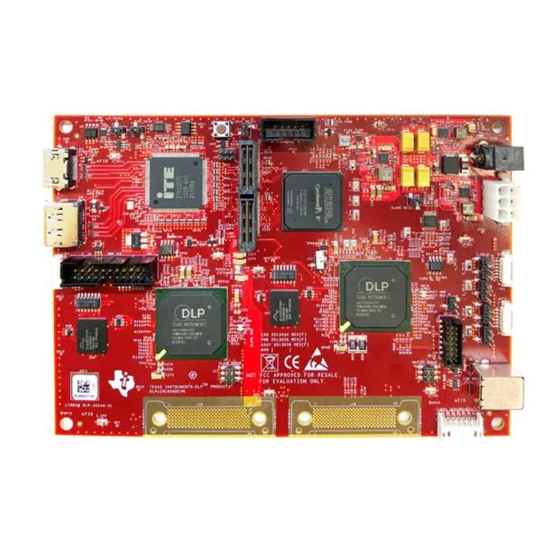

  4. Controller
  5. DLP LightCrafter Dual DLPC900
  6. Read this first manual

Texas Instruments DLPC900 Read This First Manual

Hide thumbs Also See for DLPC900:
Table of Contents

Advertisement

Quick Links

Download this manual
About This Manual
This document specifies the command and control interface to the DLPC900 controller and defines all
applicable commands, default settings, and control register bit definitions.
Related Documents from Texas Instruments
•
DLPC900 Data Sheet.
•
DLP6500FLQ Data Sheet.
•
DLP6500FYE Data Sheet
•
DLP9000FLS Data Sheet.
If You Need Assistance
See the
DLP and MEMS TI E2E Community
LightCrafter is a trademark of Texas Instruments.
DLP is a registered trademark of Texas Instruments.
All other trademarks are the property of their respective owners.
DLPU018 – October 2014
Submit Documentation Feedback
DLPS037
DLPS040
DLPS053
DLPS036
support forums.
Copyright © 2014, Texas Instruments Incorporated
Preface
DLPU018 – October 2014
Read This First
Read This First
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DLPC900 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Texas Instruments DLPC900

Summary of Contents for Texas Instruments DLPC900

  • Page 1 DLPU018 – October 2014 Read This First About This Manual This document specifies the command and control interface to the DLPC900 controller and defines all applicable commands, default settings, and control register bit definitions. Related Documents from Texas Instruments •...

  • Page 2: Interface Protocol

    SDA line, followed by a low-to-high transition on the SCL line. 1.1.3 DLPC900 Slave Address The DLPC900 offers a programmable slave address. Refer to the App Defaults Settings found in the DLP ® LightCrafter™ 6500 & 9000 GUI Firmware tab to set a different slave address. The default I...
  • Page 3 C format where the most significant byte is first. The DLPC900 internal command buffer has a maximum of 512 bytes and it is shared between the Read and Write commands; therefore, whenever a Read command is executed it must be followed by I operation with the Read Slave Address to retrieve the data otherwise the data will be overwritten by the next command executed.
  • Page 4 Figure Table 4. Write Command Sequence Example Slave Sub-address Data Address All values shown are in HEX notation. Interface Protocol DLPU018 – October 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...

  • Page 5: Usb Interface

    2) Sequence Byte. The sequence byte can be a rolling counter. It is used primarily when the host wants a response from the DLPC900. The DLPC900 will respond with the same sequence byte that the host sent. The host can then match the sequence byte from the command it sent with the sequence byte from the DLPC900 response.
  • Page 6 Read command. Therefore, both Write and Read transactions are considered "writes" to the DLPC900 where the host performs an API level "Writefile" to the HID driver. The difference is when the DLPC900 executes a Read operation, where the DLPC900 places the response into its internal buffer and waits for the host to perform an API level "Readfile"...
  • Page 7 5. USB Command: Two byte USB command. 6. Once the host transmits the data over the USB interface, the DLPC900 will respond to the Read operation by placing the response data in its internal buffer. The host must then perform a HID driver read operation.
  • Page 8 USB Interface www.ti.com 5. USB Command: Two byte USB command. 6. Data: The data appropriate to the command. Interface Protocol DLPU018 – October 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...

  • Page 9: Hardware Status

    DLPC900 Control Commands This chapter lists the DLPC900 control commands. The following sections list the supported control commands of the DLPC900. In the Type column, ‘wr’ type is writeable field through I C or USB write transactions. Data can also be read through I C or USB read transactions for ‘wr’...

  • Page 10: System Status

    When the DLPC900 is combined with a DLP6500, this bit will be 0. When two DLPC900 controllers are combined with a DLP9000, this bit must be 1 for proper operation. If the bit is 0 and the DLPC900 is combined with a DLP9000, indicates a malfunction in one or both controllers.
  • Page 11 Video Frozen Flag 0 = Video is running (Normal frame change) 1 = Video is frozen (Displaying single frame) Reserved Retrieve Firmware Version This command reads the version information of the DLPC900 firmware. Command Read 0x0205 0x11 Table 11. Get Version Command Definition...
  • Page 12 17-254 Not defined Internal Error 1.5.2 Read Error Description This command retrieves the error descriptive string from the DLPC900 of the last executed command. The string is composed of character bytes ending with a null termination character. Command Read 0x0101 0x33 Table 13.

  • Page 13: Read Status

    The Programming commands manage downloading a new firmware image into flash memory. This can be done over I C or USB interfaces. The commands in the DLPC900 Programming Commands section are only valid in program mode except for Enter Program Mode (I C: 0x30 or USB 0x3001), which exits normal mode and enters program mode.

  • Page 14: Read Control

    The user must avoid erasing the first 64k bytes of the boot flash as this contains the boot image. The user must also avoid erasing other sectors that contain firmware that are required for proper controller operation. Command Read 0x0032 0x32 DLPC900 Control Commands DLPU018 – October 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...

  • Page 15: Download Data

    512 bytes, which corresponds to a data length of 514. The number of bytes downloaded by consecutive download data commands must match the predefined Flash Data Size for the operation to be successful. Command Write 0x0025 0x25 DLPU018 – October 2014 DLPC900 Control Commands Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
  • Page 16 This command stops the given controller from executing any further commands until enabled by the same command. This command is intended to be used when two DLPC900 controllers are combined with one DLP9000 DMD, where one controller is the master and the other is the slave.
  • Page 17 3.1.1 Power Mode The Power Control places the DLPC900 in a standby state and powers down the DMD interface. Standby mode should only be enabled after all data for the last frame to be displayed has been transferred to the DLPC900.
  • Page 18 7 - Reserved Reserved Input Source Commands The Input Source Selection determines the input source for the DLPC900 data display. 3.3.1 Port and Clock Configuration This command selects which port the RGB data is on and which pixel clock, data enable, and syncs to use.
  • Page 19 3.3.2 Input Source Configuration The Input Source Configuration command selects the input source to be displayed by the DLPC900: 30-bit parallel port, Internal Test Pattern or flash memory. After executing this command, the host may poll the system status using I C commands: 0x20, 0x21, and 0x22, or the respective USB commands: 0x1A0A, 0x1A0b, and 0x1A0C.
  • Page 20 The background color setting affects those test patterns that have a foreground and background component, such as, Horizontal Lines, Diagonal Lines, Vertical Lines, Grid, and Checkerboard. DLPC900 Control Commands DLPU018 – October 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
  • Page 21 RESET TYPE Image Index. Loads the image at this index. Reading this back provides the index that was loaded most recently through this command. DLPU018 – October 2014 DLPC900 Control Commands Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...

  • Page 22: Image Flip

    Chipset Control Commands www.ti.com Image Flip The DLPC900 supports long- and short-axis image flips to support rear- and front-projection, as well as, table- and ceiling-mounted projection. NOTE: If showing image from Flash, load image (I C: 0x7F, USB: 0x1A39), this must be called to update the image flip setting.
  • Page 23 4. Turn ON the DLP display sequence (see Section 4.1). The LED-current software-control parameters define PWM values that drive corresponding LED current. The LED enables indicate which LED will be activated. DLPU018 – October 2014 DLPC900 Control Commands Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
  • Page 24 LED specifications, selected display mode, and so forth). Therefore, the recommended and absolute-maximum settings vary greatly. 3.5.1 LED Enable Outputs The DLPC900 offers three sets of pins to control the LED enables: • LEDR_EN for the red LED • LEDG_EN for the green LED •...
  • Page 25 The current level corresponding to the selected PWM duty cycle is a function of the specific LED driver design and thus varies by design. DLPU018 – October 2014 DLPC900 Control Commands Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...

  • Page 26: Gpio Commands

    LED driver design and thus varies by design. GPIO Commands DLPC900 offers 9 general-purpose input/output pins (GPIO). Some of these pins can be configured for PWM output, PWM input, or clock output functionality. By default, all pins are configured as GPIO inputs.
  • Page 27 0xFF:0x80 = Reserved Pulse Width Modulated (PWM) Control DLPC900 provides four general-purpose PWM channels that can be used for a variety of control applications, such as fan speed. If the PWM functionality is not needed, these signals can be programmed as GPIO pins.
  • Page 28 The set of commands are created and saved in a text file. The text file then becomes an additional part of the firmware and updated into the flash memory. The user can also specify a default batch file that the DLPC900 will execute during its power-up sequence. 3.8.1 Batch File Name This is a read command that returns the name of the given batch file index.
  • Page 29 DELAY 0xC8 Delay 200 ms. CHANNEL_SWAP 0x04 Select input data channel swap to ABC = BAC FLIP_LONG 0x01 Flip the image on long axis. DLPU018 – October 2014 DLPC900 Control Commands Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
  • Page 30 0x04 FLIP_LONG: 0x01 Display Mode Commands The DLPC900 display consists of several parameters which dictate the loading of the DMD and the control of PWM to the LEDs. The DLPC900 supports four main display modes: • Normal Video mode •...
  • Page 31 Numbers are based on uncompressed patterns. In Normal Video mode, the DLPC900 operates on a per-frame basis where it takes the input data and appropriately allocates it in a frame. For example, a 24-bit RGB input image is allocated into a 60-Hz frame by dividing each color (red, green, and blue) into specific percentages of the frame.

  • Page 32: Display Mode Selection

    With binary pulsewidth modulation, the intensity level of the color is reproduced by controlling the amount of time the mirror is on. For a 24-bit RGB frame image inputted to the DLPC900 controller, the DLPC900 controller creates 24 bit-planes, stores them in internal embedded DRAM, and sends them to the DMD, one bitplane at a time.
  • Page 33 Maximum 1080 or 1600. Pattern Display Commands In pattern display modes 0,2, and 3, the DLPC900 supports 1-, 2-, 3-, 4-, 5-, 6-, 7-, and 8-bit images with a 1080p or WQXGA pixel resolution streamed through the 24-bit RGB parallel interface, pre-stored patterns in the flash memory, or dynamically with Pattern On-The-Fly.
  • Page 34 0x1A24 before calling these commands. 4.2.1 Trigger Commands To synchronize a camera with the displayed patterns, the DLPC900 supports three pattern modes: • Video Pattern Mode (applicable when pattern data from RGB parallel port): – VSYNC used as trigger input.
  • Page 35 DMD. Before executing this command, stop the current pattern sequence. Command Read Write 0x1A1E 0x6B 0xEB DLPU018 – October 2014 DLPC900 Control Commands Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
  • Page 36 TYPE 0 – Pattern started on rising edge stopped on falling edge 1 – Pattern started on falling edge stopped on rising edge Reserved DLPC900 Control Commands DLPU018 – October 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
  • Page 37 The Blue LED Enable Delay command sets the rising and falling edge delay of the Blue LED enable signal. Command Read Write 0x1A21 0x6E 0xEE DLPU018 – October 2014 DLPC900 Control Commands Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
  • Page 38 4.2.3.2 Pattern Display Invert Data The Pattern Display Invert Data command dictates how the DLPC900 interprets a value of 0 or 1 to control mirror position for displayed patterns. Before executing this command, stop the current pattern sequence. Once the command has been sent to the DLPC900, the Pattern Display LUT Definition for all the patterns must be re-sent to the DLPC900.
  • Page 39 LUT definition data. If the Pattern Display Data Input Source is set to streaming, the image indexes do not need to be set. Regardless of the input source, the pattern definition must be set. Command Write 0x1A34 0xF8 DLPU018 – October 2014 DLPC900 Control Commands Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
  • Page 40 The images should be loaded in the reverse order. Suppose there are 3 images 0,1 and 2 then the order for loading the image is 2, 1 and 0. When the DLPC900 is combined with a DLP9000 DMD, the user must perform the same operation on both the master and slave controllers by choosing the appropriate command in the command table.
  • Page 41 This command is used for updating the pattern images on-the-fly. This loads the full compressed 24bit BMP images into the internal memory of the DLPC900. This command is issued after the Init pattern BMP command and multiple times until all the bytes are sent. Images should be compressed using Run-Length...
  • Page 42 C Pass Through Read Command Definition BYTE BITS DESCRIPTION RESET TYPE 15:0 Number of bytes to write (1-512) 15:0 Number of bytes to read (1-512) DLPC900 Control Commands DLPU018 – October 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
  • Page 43 0 - Invalid Port 1 - Port 1 2 - Port 2 Reserved 10:0 Slave Address 15:11 Reserved Data to be written Data bytes read DLPU018 – October 2014 DLPC900 Control Commands Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...

  • Page 44: Power Down

    Detailed power-up timing is given in the DLPC900 data sheet, DLPS037. Power Down No commands are required at power down of the DLPC900. The DC power supplies must be turned off, and PWRGOOD must be set low, according to the timing in the DLPC900 data sheet, DLPS037.

  • Page 45: Command Examples

    00 00 FA 00 00 10 00 00 00 00 00 00 Define pattern 0 from image 0 (200 us red 1 bit) All bytes are in HEX notation. DLPU018 – October 2014 Command Examples Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
  • Page 46 C Pass Through Write Example The following table lists the steps to communicate with an external device using one of the DLPC900 I ports. The example shows how to write 16 bytes to an EEPROM starting at address location 16.

  • Page 47: Register Quick Reference

    Load 0xAC 0x1A2C Initialize Pattern See Command Description BMP Load 0xAD 0x1A2D Pattern BMP See Command Description Load 0x3A 0x1A14 Batch File Name Index DLPU018 – October 2014 Register Quick Reference Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...

  • Page 48: Command Guide

    Pattern On- Command Power Power Video Pattern Pattern The-Fly Name Mode Mode Mode Mode Mode Mode Read Write Input Source 0x00 0x80 0x1A00 Select Register Quick Reference DLPU018 – October 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
  • Page 49 Batch File 0xBB 0x1A15 Execute Batch File 0xBC 0x1A16 Delay PWM Enable 0x40 0xC0 0x1A10 PWM Setup 0x41 0xC1 0x1A11 GPIO 0x44 0xC4 0x1A38 Configuration DLPU018 – October 2014 Register Quick Reference Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
  • Page 50 Trigger In 1 0x79 0xF9 0x1A35 Trigger In 2 0x7A 0xFA 0x1A36 Manual Input 0x7E 0xFE 0x1000 Display Resolution Image Load 0x7F 0xFF 0x1A39 Register Quick Reference DLPU018 – October 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
  • Page 51 MBOX_DATA Pattern LUT Definition SPLASH_LOAD Image Load GPCLK_CONFIG Clock Output Configuration TPG_COLOR Test Pattern Color I2C_PASSTHRU C Pass Through VIDEO_CONT_SEL IT6535 Power Mode DLPU018 – October 2014 Batch File Command Descriptors Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
  • Page 52 Curtain Color BATCHFILE_EXECUTE Batch File Execute These commands are not allowed to be included in a batch file that is added to the firmware. Batch File Command Descriptors DLPU018 – October 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
  • Page 53 In order to minimize Flash storage requirements, it is recommended (but not required) that pattern images be stored in a compressed format. The compression format supported by the DLPC900 is a subset of BMP Run-Length Encoding (RLE). The DLPC900 is able to perform the decompression of pattern images as they are loaded from external flash or when using Pattern On-The-Fly mode to its internal memory.
  • Page 54 2-line packed 24-bit compressed bitmap. The compressed data on the left is stored sequentially in Flash memory. The DLPC900 firmware automatically expands the data as shown on the right which is store in internal memory.
  • Page 55 00 01 00 (End-of-Image Padding) End-of-Line Command and End-of-Line Padding is optional for this RLE compression. NOTE: All padding should end on a 4 byte boundary. DLPU018 – October 2014 Pattern Image Compression Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
