Summary of Contents for RTA Products Techni Mobili RTA-8070

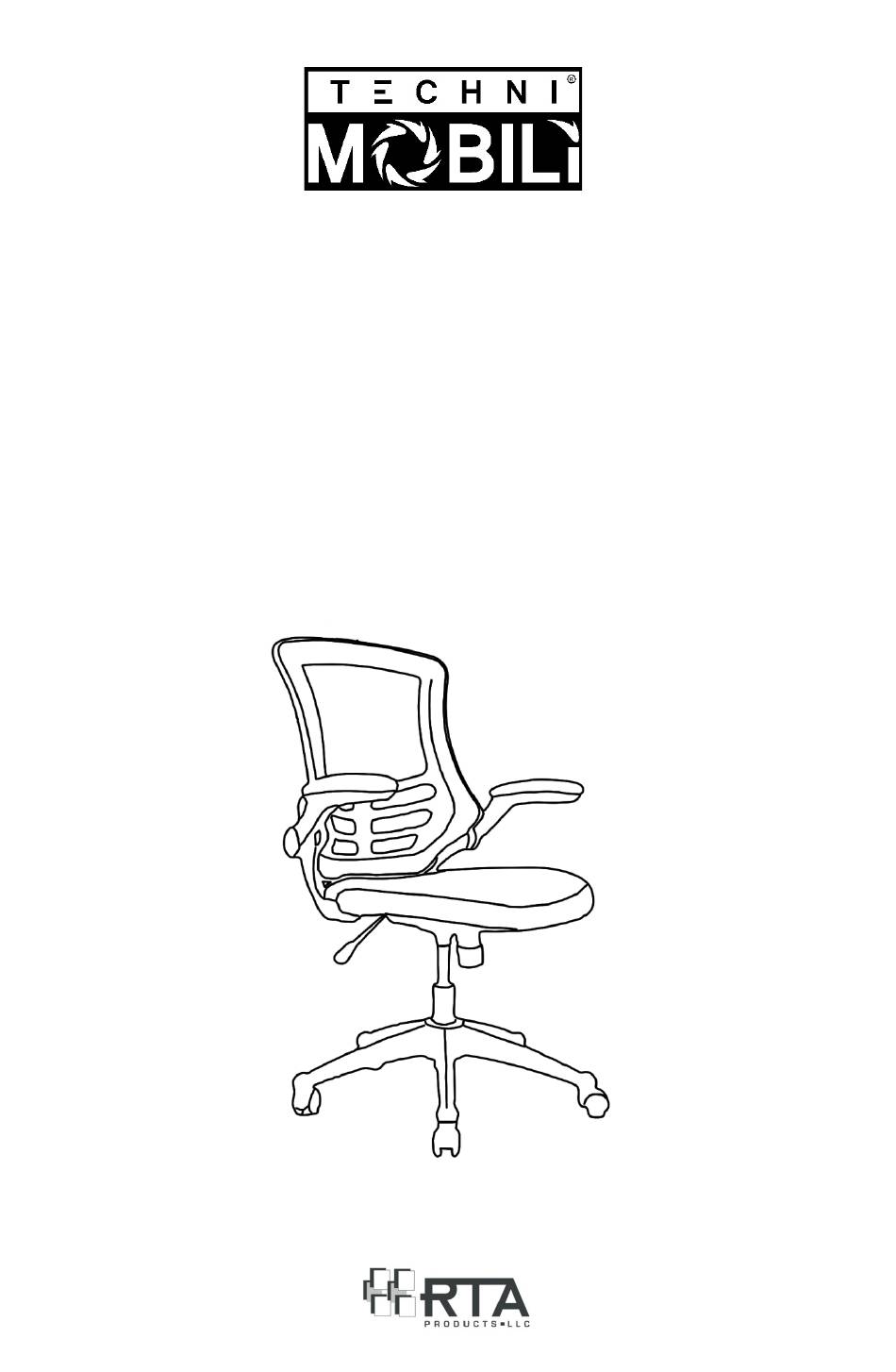

- Page 1 MODEL RTA-8070 ASSEMBLY INSTRUCTIONS Thank you for purchasing our product. REV.122020-1...
-
Page 2: Main Parts List
RTA-8070 MAIN PARTS LIST Backrest Seat Hydraulic gas 5-Leg star Mechanism lift base Casters Left Right armrest armrest Sitting on the chair, not looking at it LIST OF HARDWARE PART ITEM USE IN 6x25mm Armrests to backrest 6x20mm Mechanism 6x20mm Armrests to seat Hole covers: Armrests... - Page 3 RTA-8070 BEFORE YOU START THE ASSEMBLY, PLEASE READ THE FOLLOWING TIPS AND WARNINGS. ❶ ❻ Do a quick inventory to Make sure you make sure the package understand which hardware contains all the parts and will be used on each step. hardware listed in the Using the wrong size of assembly instructions.
- Page 4 RTA-8070 ASSEMBLY STEPS Insert the casters F into the STEP 1 legs of the base C using pressure, then place the gas lift E in the middle of the base as shown. STEP 2 Assemble the mechanism D to the seat B using screws I. Hardware (Front) 6x20mm...
- Page 5 RTA-8070 STEP 4 Place the seat over the base parts making sure the tip of the gas lift E (Front) enters into the hole of the mechanism D. ���� ���� STEP 5 Assemble the backrest A to the armrests G using screws H. Hardware NOTE: 6x25mm...
-
Page 6: Care And Maintenance
RTA-8070 CHAIR’S FUNCTIONS ① To raise or lower the chair’s height, pull UP the lever that is under the seat. The chair goes down while sitting on it, or up if you lift your body. ② To make the chair tilt freely, pull the same lever OUT horizontally to unlock this function. - Page 7 9.Report any defects to RTA Products, LLC together with your sales receipt or other proof of purchase. If the chair is defective within the terms of the warranty, RTA Products, LLC will furnish a replacement chair (at its option) at no cost of equal or similar value and design.
- Page 8 RTA-8070 FOR SEVERAL HELP OPTIONS INCLUDING REPLACEMENT PARTS ORDERS _________________________________________________________________ WWW.TECHNIMOBILI.COM VISIT: CLICK ON SUPPORT TAB Scan QR Code to order replacement parts SUPPORT@RTAPRODUCTS.COM OR EMAIL US:...
