5.6. RELEASE LEVER

This operation applies to Leg Curl, Leg Extension Lower Back, and Glute.

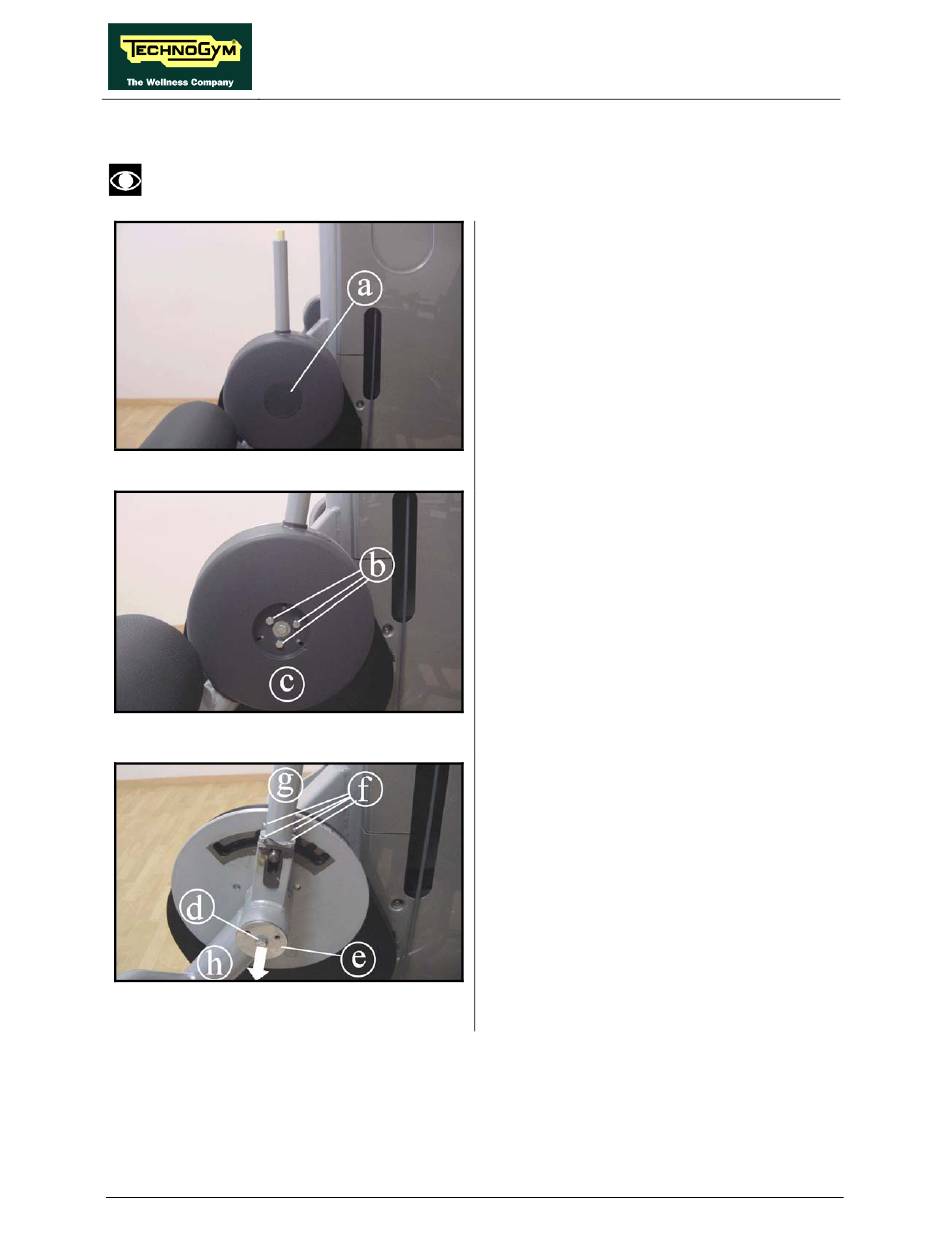

Figure 5.6-1
Figure 5.6-2
Figure 5.6-3
Page 5.8
All manuals and user guides at all-guides.com
ELEMENT LINE: Service & Maintenance Manual - rev. 1.2
1. Remove the plastic cap (a) using a flat
2. Use a 10-mm wrench to back off the 3
3. Remove the plastic cover (c).
4. Back off the screw (d) using a 13-mm
5. Remove the plate (e).
6. Back off the 4 screws (f) using a 4-mm hex
7. Remove the tube (g) sliding it upward.
8. Slide the lever (h) a couple of cm toward the
screwdriver.
screws (b).
wrench.
wrench.
external side, following the direction of the
arrow.
Continued on next page
→
