BIOSTRENGTH LINE: Service & Maintenance manual - rev. 2.1
7.2.28. D
ISASSEMBLING THE RELEASE LEVER CABLE

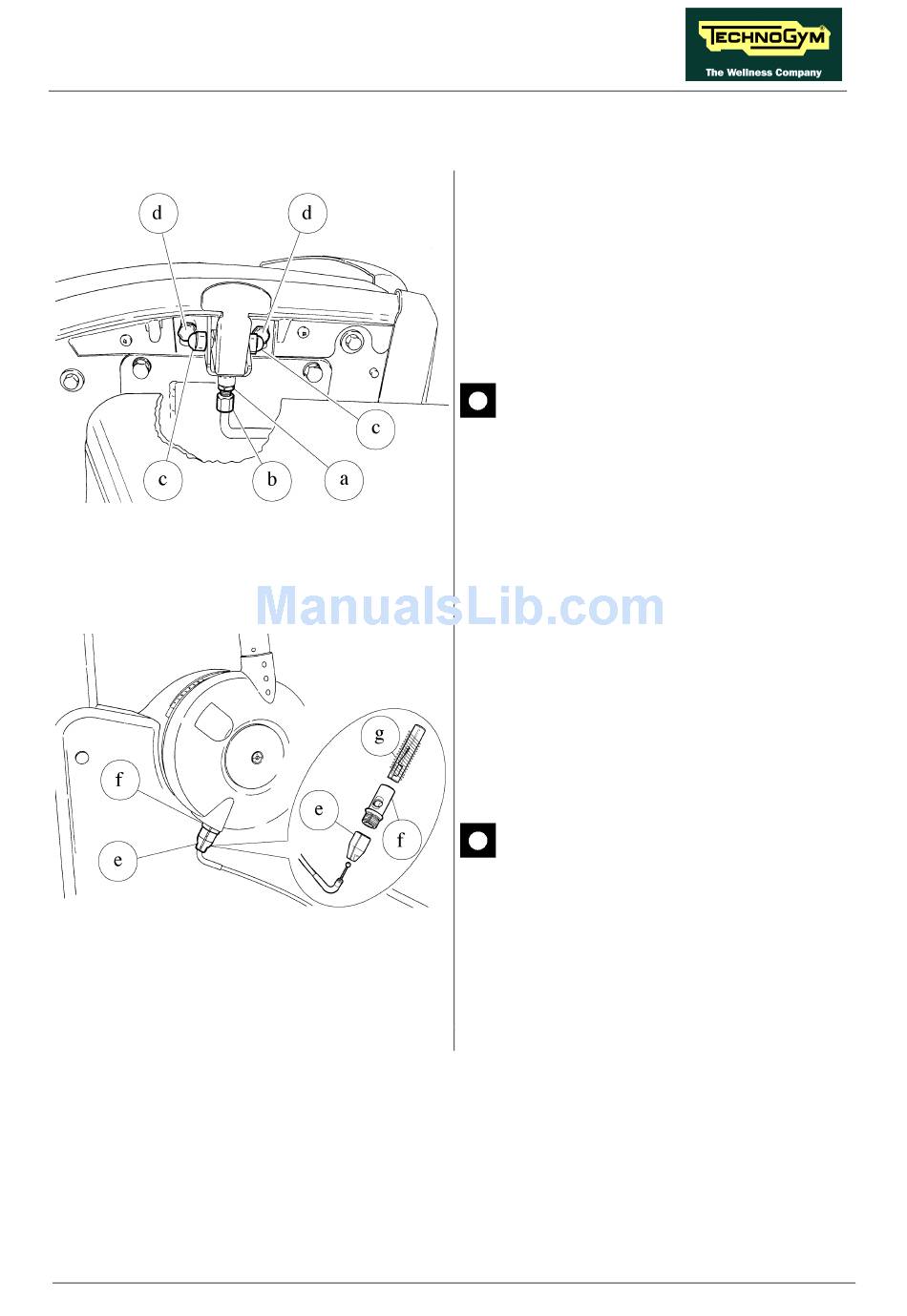

Figure 7.2.28-1
Figure 7.2.28-2
1. Unscrew the setting screw of the LEVER
RELEASE CABLE, using a 13-gauge
wrench on the counter-nut a and screw b.
2. Remove the 2 nut covers c.
3. Use a 17-gauge wrench to unscrew the 2
screws d, located under the nut covers.
4. Remove the release handle and set it on the
floor.
Hold the release handle up before
unscrewing the last screw.
5. Pull the cable from the release handle,
passing the blocking ball through the holes
provided.
6. Pulling the cable outward, turn the threaded
part e to create a space of 2-3 mm near the
bell.
7. Align the slot in part e with the one in the
screw f below.
8. Move the cable along the slot to the space
created.
9. Fully unscrew part e.
10. Pull the black plastic part g outward, and
remove the cable, making the blocking ball
pass through the hole provided.
Lock the part g in place, to prevent the
spring from pulling it inward and
making it
disassembling the bell as described in
paragraph 7.2.29. .
11. Remove the LEVER RELEASE CABLE.
inaccessible without
Continued on next page →
Page 7.71
