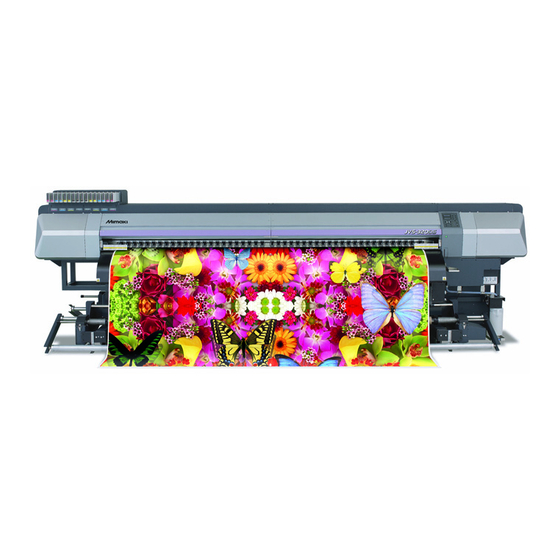

MIMAKI JV5 Series Replacement Manualline

USA Document#20110329001
JV5/JV33/CJV30 Main PCB replacement guideline JV5/JV33/CJV30 Main PCB replacement guideline JV5/JV33/CJV30 Main PCB replacement guideline JV5/JV33/CJV30 Main PCB replacement guideline

1. 1. 1. 1. Introduction

Introduction
Introduction Introduction
Main PCB replacement regularly requires downloading backed-up parameter file to make it as same
condition as before replacement. However, parameter backing-up is unable sometimes due to not
powering up.
The brand new main PCBs come with initialized parameter setting that will cause strange
phenomenon.
So there will be some settings need to be performed at replacement.
The document explains necessary settings for main PCB replacement.

2. 2. 2. 2. Example of phenomenon

Example of phenomenon occur
Example of phenomenon Example of phenomenon
The following phenomenon may occur at Main PCB replacement without downloading backed-up
parameter.
A. Equipment displays different equipment name or size other than what you have
B. Equipment displays language other than English
C. Equipment becomes stand-by without initializing process
D. Warning/Error display relating ink system
E. There are noises or vibrations occurring on X and/or Y axis and/or error messages
relating X/Y axis occur immediately after these noises or vibrations
F. Capping/Wiper position off or Cleaning function failure
G. Any other adjustment problems
H. Any other print setting differences such as heater temp., overprint and so on
Please read from next section to clear up the phenomenon above.
JV5/JV33/CJV30 Main PCB replacement guideline
occur at Main PCB replacement at Main PCB replacement
occur occur at Main PCB replacement at Main PCB replacement
1
Mar.29 .2011
th
Mimaki USA Tech Center
