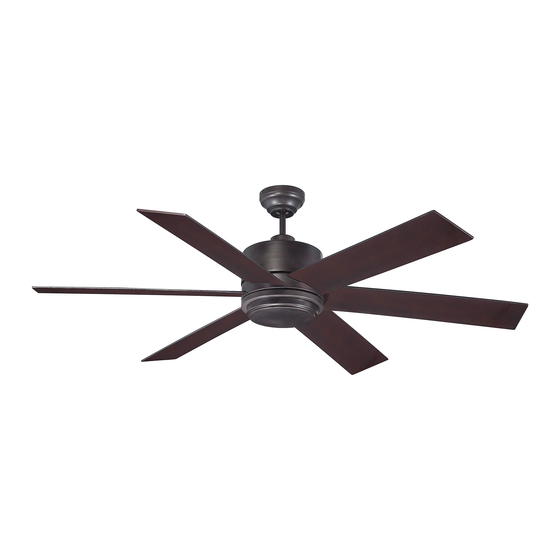

- Page 1 CEILING FAN OWNER'S MANUAL READ AND SAVE THESE INSTRUCTIONS MODEL: 60-820-613-13 60-820-6SV-SN FAN RATING AC 120V. 60Hz CUL LISTED MODEL : AC-568F760...
-
Page 2: Tools And Materials Required
1. TOOLS AND MATERIALS REQUIRED Philips screw driver Blade screw driver 11 mm wrench Step ladder Wire cutters 2. PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items; a. Set of blades assembly (6) b. -
Page 3: Safety Rules
3. SAFETY RULES 1. To reduce the risk of electric shock, ensure 10. Do not use water or detergents when electricity has been turned off at the circuit cleaning the fan or fan blades. A dry dust breaker or fuse box before beginning. cloth or lightly dampened cloth will be suitable for most cleaning. -
Page 4: Mounting Options
4. MOUNTING OPTIONS If there isn't an existing UL listed mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers. Secure the outlet box directly to the Outlet box building structure. appropriate fasteners and building materials. -
Page 5: Hanging The Fan
5. HANGING THE FAN REMEMBER to turn off the power. Follow the steps below to hang your fan properly. CUL Listed electrical box NOTE: This ceiling fan is supplied with two Hanger types of hanging assemblies; the standard bracket ceiling installation using the downrod with ball and socket mounting and the Mounting screws "close-to-ceiling"... - Page 6 CLOSE-TO-CEILING INSTALLATION 1. Pass the 120-volt supply wires through Canopy the center hole in the ceiling hanger bracket as shown in Fig. 5. Decorative canopy cover Figure 8 2. Remove the decorative canopy cover from the canopy. (Fig. 8) 3. Secure the hanger bracket to the ceiling Screw and lockwasher (3 of 6 places) outlet box with the screws and washers...
-
Page 7: Installation Of Safety Support
6. INSTALLATION OF SAFETY SUPPORT An additional safety support is provided to Hanger bracket Safety cable prevent the fan from falling. Secure the safety cable to the ceiling joist with screw and washer, as illustrated in Figure 11. Figure 11 7. -
Page 8: Finishing The Installation
Step 3. (Figure 14) Receiver to House Outlet box Supply Wires Electrical Connections: Connect the black (hot) wire from the White (neutral) Black (hot) ceiling to the black wire marked "AC in Green or bare L" from the receiver. Connect the copper (ground) Black ("AC IN L") white(neutral) wire from the ceiling to the... -
Page 9: Attaching The Fan Blades
CLOSE-TO-CEILING INSTALLATION Outlet box Screws Hanger Remove the fan from the hook on the bracket hanger bracket. Secure the canopy to the hanger bracket as shown in Figure 16 with Ceiling canopy four screws included with your fan. Figure 16 9. -
Page 10: Installing The Light Kit
11. INSTALLING THE LIGHT NOTE: Before starting installation, disconnect the power by turning off the circuit breaker or removing the fuse at fuse box. Turning power off using the fan switch is not sufficient to prevent electric shock. Step 1. Remove the 1 of 3 screws from the mounting plate and keep it for future use. -
Page 11: Installing The Battery
13. INSTALLING THE BATTERY Insert the 23A/12V battery (included) and make sure they are seated correctly in recess. (Fig. 21) Figure 21 14. OPERATING INSTRUCTIONS Restore power to ceiling fan and test for proper operation. , and buttons: These three buttons are used to set the fan speed as follows: = high speed = medium speed... -
Page 12: Care Of Your Fan
The Reverse switch is located on the motor housing. Slide the switch to the Left for warm weather operation. Slide the switch to the Right for cool weather operation. Speed settings for warm or cool weather depend on factors such as the room size, ceiling height and number of fans. -
Page 13: Troubleshooting
16. TROUBLESHOOTING Problem Solution Fan will not start. 1. Check circuit fuses or breakers. 2. Check line wire connections to the fan and switch wire connections in the switch housing. CAUTION: Make sure main power is off. 3. Check to make sure the dip switches from the transmitter and receiver are set to the same frequency.
