Savoy House M2010 Series Owner's Manual

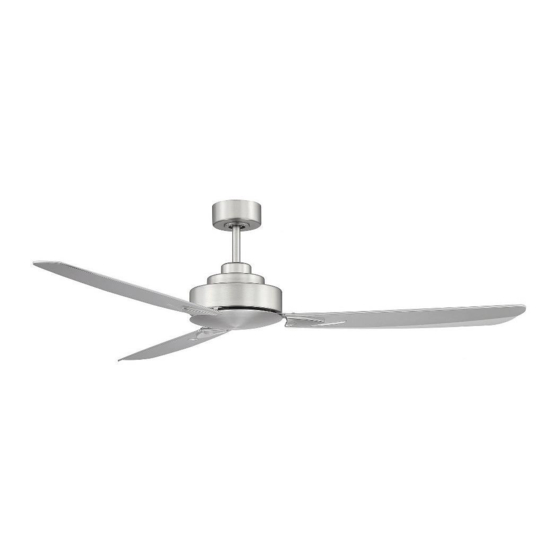

58” ceiling fan
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
58" CEILING FAN
OWNER'S MANUAL
READ AND SAVE THESE INSTRUCTIONS
MODEL: M2010XX
FAN RATING AC 120V. 60Hz
UL LISTED MODEL : AC-552DL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M2010 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Savoy House M2010 Series

Summary of Contents for Savoy House M2010 Series

  • Page 1 58” CEILING FAN OWNER'S MANUAL READ AND SAVE THESE INSTRUCTIONS MODEL: M2010XX FAN RATING AC 120V. 60Hz UL LISTED MODEL : AC-552DL...

  • Page 2: Tools And Materials Required

    1. TOOLS AND MATERIALS REQUIRED Philips screw driver Blade screw driver 11 mm wrench Step ladder Wire cutters 2. PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: a. Set of blades assembly (3) b.

  • Page 3: Safety Rules

    3. SAFETY RULES 1. To reduce the risk of electric shock, insure 10. Do not use water or detergents when electricity has been turned off at the circuit cleaning the fan or fan blades. A dry dust breaker or fuse box before beginning. cloth or lightly dampened cloth will be suitable for most cleaning.

  • Page 4: Mounting Options

    4. MOUNTING OPTIONS If there isn't an existing UL listed mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers. Secure the outlet box directly to the Outlet box building structure. Use appropriate fasteners and building materials.

  • Page 5: Hanging The Fan

    5. HANGING THE FAN Hanger REMEMBER to turn off the power. Follow the bracket steps below to hang your fan properly: Step 1. Remove the decorative canopy Ceiling canopy bottom cover from the canopy by turning the cover counter clockwise. (Fig. 5) Canopy Step 2.

  • Page 6: Make The Electric Connections

    6. MAKE THE ELECTRIC CONNECTIONS Code switch WARNING: To avoid possible electrical shock, be sure electricity is turned off at the main fuse box before wiring. NOTE: This remote control unit is equipped with 16 code combinations to prevent Figure 9 possible interference from or to other remote units.
  • Page 7 Step 2. (Figure 11) Motor to Receiver Electrical Connections: Connect the black wire from the Outlet box fan to black wire marked "TO MOTOR L". Connect the white wire from the fan to the White (neutral) Black (hot) white wire marked "TO MOTOR N" from the Green or bare copper (ground) Black ("AC IN L")

  • Page 8: Finishing The Installation

    7. FINISHING THE INSTALLATION Step 1. Tuck connections neatly into Outlet box ceiling outlet box. Hanger Step 2. Slide the canopy up to hanger bracket bracket and place the key hole on the Screws canopy over the screw on the hanger bracket, turn canopy until it locks in place at the narrow section of the key holes.
  • Page 9 9. INSTALLING THE DECORATIVE COVER Raise decorative cover up against the mounting ring and secure it to fan by turning decorative cover clockwise until snug. Do not overtighten. (Fig. 14) Mounting ring Decorative cover Figure 14...

  • Page 10: Installing The Battery

    10. INSTALLING THE BATTERY Insert the 3 volt battery (included) and make sure they are seated correctly in each recess with the Positive + sign facing up. (Fig. 15) 11. OPERATING Figure 15 INSTRUCTIONS Restore power to ceiling fan and test for proper operation.
  • Page 11 Speed settings for warm or cool weather depend on factors such as the room size, ceiling height, number of fans and so on. NOTE: To operate the reverse function on this fan, press the reverse button while the fan is running. Warm weather - (Forward) A downward airflow creates a cooling effect as shown in Fig.

  • Page 12: Care Of Your Fan

    12. CARE OF YOUR FAN Here are some suggestions to help you maintain your fan 1. Because of the fan's natural movement, some connections may become loose. Check the support connections, brackets, and blade attachments twice a year. Make sure they are secure.

  • Page 13: Troubleshooting

    13. TROUBLESHOOTING Problem Solution Fan will not start. 1. Check circuit fuses or breakers. 2. Check line wire connections to the fan and switch wire connections in the switch housing. CAUTION: Make sure main power is off. 3. Check to make sure the dip switches from the transmitter and receiver are set to the same frequency.
