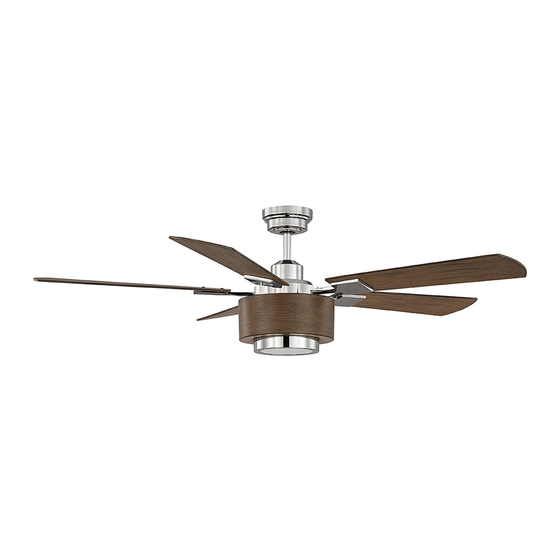

CEILING FAN
OWNER'S MANUAL
READ AND SAVE THESE INSTRUCTIONS
MODELS: 54-6000-5DW-109
54-6000-5RW-196
FAN RATING AC 120V. 60Hz
CUL LISTED MODEL: AC-552

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 54-6000-5DW-109 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Savoy House 54-6000-5DW-109

Summary of Contents for Savoy House 54-6000-5DW-109

  • Page 1 CEILING FAN OWNER'S MANUAL READ AND SAVE THESE INSTRUCTIONS MODELS: 54-6000-5DW-109 54-6000-5RW-196 FAN RATING AC 120V. 60Hz CUL LISTED MODEL: AC-552...

  • Page 2: Tools And Materials Required

    1. TOOLS AND MATERIALS REQUIRED Philips screw driver Blade screw driver 11 mm wrench Step ladder Wire cutters 2. PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: a. Blade set (5) b. Hanger bracket assembly c.

  • Page 3: Safety Rules

    3. SAFETY RULES 1. To reduce the risk of electric shock, insure To operate the reverse function on this fan, press the reverse button while the electricity has been turned off at the circuit fan is running. breaker or fuse box before beginning. Avoid placing objects in the path of the 2.

  • Page 4: Mounting Options

    4. MOUNTING OPTIONS If there isn't an existing UL listed mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers. Secure the outlet box directly to the Outlet box building structure. Use appropriate fasteners and building materials.

  • Page 5: Attaching The Fan Blades

    5. ATTACHING THE FAN BLADES Step 1. Attach the blade to the blade Screws bracket using the screws and fiber Fiber washers as shown in Figure 5. Start screw washers Screws Blade into bracket. Repeat for the two remaining screws. Step 2.

  • Page 6: Hanging The Fan

    6. HANGING THE FAN Hanger bracket REMEMBER to turn off the power. Follow the steps below to hang your fan properly: Ceiling canopy Step 1. Remove the decorative canopy bottom cover from the canopy by turning the cover counter clockwise. (Fig. 6) Canopy Step 2.

  • Page 7: Make The Electric Connections

    7. MAKE THE ELECTRIC CONNECTIONS WARNING: To avoid possible electrical Code switch shock, be sure electricity is turned off at the main fuse box before wiring. NOTE: This remote control unit is equipped with 16 code combinations to prevent possible interference from or to other remote units.
  • Page 8 Step 2. (Figure 12) Motor to Receiver Electrical Connections: Connect the black Outlet box wire from the fan to black wire marked "TO MOTOR L". Connect the white wire White (neutral) Black (hot) Green or bare from the fan to the white wire marked "TO copper (ground) Black ("AC IN L") MOTOR N"...

  • Page 9: Finishing The Installation

    8. FINISHING THE INSTALLATION Outlet box Step 1. Tuck connections neatly into ceiling outlet box. Hanger bracket Step 2. Slide the canopy up to hanger Screws bracket and place the key hole on the canopy over the screw on the hanger bracket, turn canopy until it locks in place Canopy at the narrow section of the key holes.

  • Page 10: Installing The Led Light Kit

    10. INSTALLING THE LED LIGHT KIT NOTE: Before starting installation, discon- nect the power by turning off the circuit breaker or removing the fuse at fuse box. Turning power off using the fan switch is not sufficient to prevent electric shock. Step 1.

  • Page 11: Installing The Battery

    12. INSTALLING THE BATTERY Insert the 3 volt battery (included) and make sure they are seated correctly in each recess with the Positive + sign facing up. (Fig. 17) 13. OPERATING Figure 17 INSTRUCTIONS Restore power to ceiling fan and test for proper operation.

  • Page 12: Care Of Your Fan

    Speed settings for warm or cool weather depend on factors such as the room size. Ceiling height, number of fans and so on. NOTE: To operate the reverse function on this fan, press the reverse button while the fan is running. Warm weather - (Forward) A downward airflow creates a cooling effect as shown in Fig.

  • Page 13: Troubleshooting

    15. TROUBLESHOOTING Problem Solution Fan will not start. 1. Check circuit fuses or breakers. 2. Check line wire connections to the fan and switch wire connections in the switch housing. CAUTION: Make sure main power is off. 3. Check to make sure the dip switches from the transmitter and receiver are set to the same frequency.
