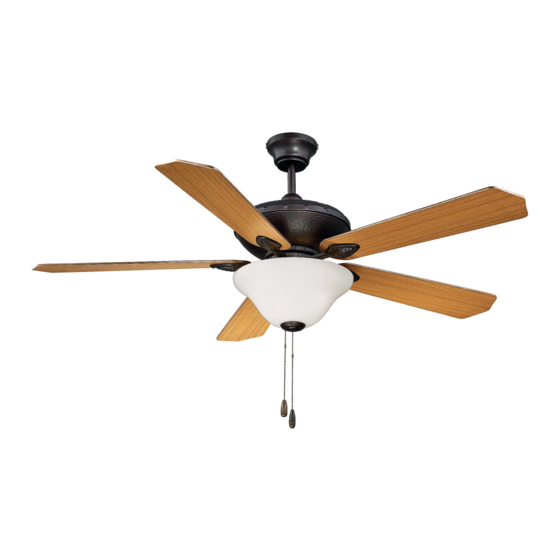

CEILING FAN
OWNER'S MANUAL
READ AND SAVE THESE INSTRUCTIONS
MODEL: 52-160-5RV-13
FAN RATING AC 120V. 60Hz
UL LISTED MODEL : AC-552

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 52-160-5RV-13 and is the answer not in the manual?

Questions and answers

Related Manuals for Savoy House 52-160-5RV-13

Summary of Contents for Savoy House 52-160-5RV-13

  • Page 1 CEILING FAN OWNER'S MANUAL READ AND SAVE THESE INSTRUCTIONS MODEL: 52-160-5RV-13 FAN RATING AC 120V. 60Hz UL LISTED MODEL : AC-552...

  • Page 2: Tools And Materials Required

    1. TOOLS AND MATERIALS REQUIRED Philips screw driver Blade screw driver 11 mm wrench Step ladder Wire cutters 2. PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: a. Set of blades assembly (5) b.

  • Page 3: Safety Rules

    3. SAFETY RULES 1. To reduce the risk of electric shock, insure 9. To avoid personal injury or damage to the electricity has been turned off at the circuit fan and other items, be cautious when breaker or fuse box before beginning. working around or cleaning the fan.

  • Page 4: Mounting Options

    4. MOUNTING OPTIONS If there isn't an existing UL listed mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers. Secure the outlet box directly to the Outlet box building structure. Use appropriate fasteners and building materials.

  • Page 5: Hanging The Fan

    5. HANGING THE FAN REMEMBER to turn off the power. Follow the steps below to hang your fan properly. UL Listed electrical box NOTE: This ceiling fan is supplied with two Hanger types of hanging assemblies; the standard bracket ceiling installation using the downrod with ball and socket mounting and the "close Mounting screws -to-ceiling"...
  • Page 6 CLOSE-TO-CEILING INSTALLATION 1. Pass the 120-volt supply wires through Canopy the center hole in the ceiling hanger bracket as shown in Fig. 5. Decorative canopy cover Figure 8 2. Remove the decorative canopy cover from the canopy. (Fig. 8) Screw and lockwasher 3.

  • Page 7: Make The Electric Connections

    6. MAKE THE ELECTRIC SUPPLY CIRCUIT CONNECTIONS Ground Remember to disconnect the power. Conductor Follow the steps below to connect the fan to your household wiring. Use the wire connecting nuts supplied with your fan. Outlet Box Secure the connectors with electrical tape. Green Make sure there are no loose strands or Ground...

  • Page 8: Finishing The Installation

    7. FINISHING THE INSTALLATION Outlet box Screws STANDARD CEILING INSTALLATION Hanger bracket Slide canopy up to the ceiling as shown in Figure 12. Make sure you place the wires Ceiling canopy safely into the outlet box. Secure the canopy to the hanger bracket with the four screws with your fan.

  • Page 9: Attaching The Fan Blades

    8. ATTACHING THE FAN BLADES Caution: Remove the screws from the motor support plate, discard the screws and motor support plate. Step 1. Attach the blade to the blade bracket using the screws and fiber washers as shown in Figure 14. Start screw into bracket.

  • Page 10: Installing The Light Kit

    10. INSTALLING THE LIGHT KIT NOTE: Before starting installation, disconnect the power by turning off the circuit breaker or removing the fuse at fuse box. Turning power off using the fan switch is not sufficient to prevent electric shock. 1. Remove the screws from the mounting plate under the fan motor.

  • Page 11: Operating Your Fan

    12. FAN WITHOUT LIGHT (OPTIONAL) 1. Disassemble the switch housing from the light kit by removing nut and washer on the center of switch housing, you can keep the light kit for future use. 2. While holding the swith housing under your fan, snap together the wire connection plug.
  • Page 12 14. CARE OF YOUR FAN Here are some suggestions to help you maintain your fan 1. Because of the fan's natural movement, some connections may become loose. Check the support connections, brackets, and blade attachments twice a year. Make sure they are secure.

  • Page 13: Troubleshooting

    15. TROUBLESHOOTING Problem Solution Fan will not start. 1. Check circuit fuses or breakers. 2. Check line wire connections to the fan and switch wire connections in the switch housing. CAUTION: Make sure main power is off. Fan sounds 1. Make sure all motor housing screws are snug. noisy.
