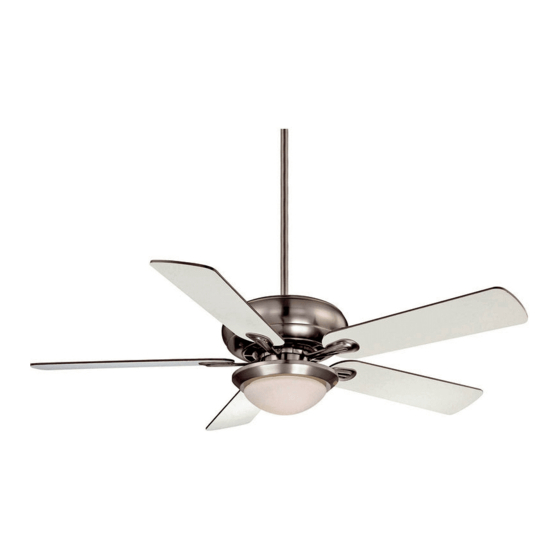

CEILING FAN
OWNER'S MANUAL
READ AND SAVE THESE INSTRUCTIONS
MODEL: 52-CDC-5RV-13
52-CDC-5RV-SN
FAN RATING AC 120V. 60Hz
UL LISTED MODEL : AC-552

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 52-CDC-5RV-13 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Savoy House 52-CDC-5RV-13

  • Page 1 CEILING FAN OWNER'S MANUAL READ AND SAVE THESE INSTRUCTIONS MODEL: 52-CDC-5RV-13 52-CDC-5RV-SN FAN RATING AC 120V. 60Hz UL LISTED MODEL : AC-552...
  • Page 2: Tools And Materials Required

    1. TOOLS AND MATERIALS REQUIRED Philips screw driver Blade screw driver 11 mm wrench Step ladder Wire cutters 2. PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items; a. Set of blades assembly (5) b.
  • Page 3: Safety Rules

    3. SAFETY RULES 1. To reduce the risk of electric shock, insure To avoid personal injury or damage to the electricity has been turned off at the fan and other items, be cautious when circuit breaker or fuse box before working around or cleaning the fan.
  • Page 4: Mounting Options

    4. MOUNTING OPTIONS If there isn't an existing UL listed mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers. Secure the outlet box directly to the Outlet box building structure. appropriate fasteners and building materials.
  • Page 5: Hanging The Fan

    5. HANGING THE FAN REMEMBER to turn off the power. Follow the steps below to hang your fan properly. CUL Listed electrical box NOTE: This ceiling fan is supplied with two Hanger types of hanging assemblies; the standard bracket ceiling installation using the downrod with ball and socket mounting and the Mounting screws "close-to-ceiling"...
  • Page 6 CLOSE-TO-CEILING INSTALLATION 1. Pass the 120-volt supply wires through Canopy the center hole in the ceiling hanger bracket as shown in Fig. 5. Decorative canopy cover Figure 8 2. Remove the decorative canopy cover from the canopy. (Fig. 8) 3. Secure the hanger bracket to the ceiling Screw and lockwasher outlet box with the screws and washers (3 of 6 places)
  • Page 7: Make The Electric Connections

    POWER LINES 120V NOTE: LIGHT KITS ARE AVAILABLE AT YOU GREEN SAVOY HOUSE RETAILER. THE FAN IS GROUND ALREADY WIRED TO SUPPORT THE LIGHT WIRING LIGHT KIT OPTION.
  • Page 8: Finishing The Installation

    7. FINISHING THE INSTALLATION Outlet box Screws Hanger bracket STANDARD CEILING INSTALLATION Slide canopy up to the ceiling as shown in Figure 14. Make sure you place the wires Ceiling canopy safely into the outlet box. Secure the canopy to the hanger bracket with the four screws with your fan.
  • Page 9: Attaching The Fan Blades

    8. ATTACHING THE FAN BLADES Caution: Remove 5 rubber packing mounts and discard before installation. Step 1. Attach the blade to the blade bracket using the screws and fiber washers as shown in Figure 16. Start screw into bracket. Repeat for the two Screws remaining screws.
  • Page 10: Installing The Light Kit

    10. INSTALLING THE LIGHT KIT NOTE: Before starting installation, disconnect the power by turning off the circuit breaker or removing the fuse at fuse box. Turning power off using the fan switch is not sufficient to prevent electric shock. Step 1. While holding the light kit assembly under the fan, snap together the Wire connection...
  • Page 11: Operating Your Fan

    12. OPERATING YOUR FAN NOTE: Wait for fan to stop before changing the setting of the slide switch. Turn on the power and check the operation of your fan. The pull chain controls the fan speed as follows: 1 pull- High, 2 pulls-Medium, 3 pulls- Low, and 4 pulls-Off.
  • Page 12: Troubleshooting

    14. TROUBLESHOOTING Problem Solution Fan will not start. 1. Check circuit fuses or breakers. 2. Check line wire connections to the fan and switch wire connections in the switch housing. CAUTION: Make sure main power is off. Fan sounds 1. Make sure all motor housing screws are snug. noisy.
