Page 1: Ceiling Fan

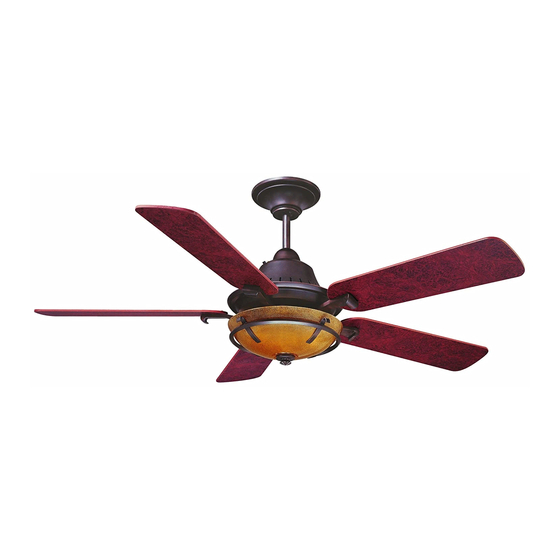

CEILING FAN OWNER'S MANUAL READ AND SAVE THESE INSTRUCTIONS MODEL: 52P-620-5BC-13 52P-620-5WA-SN FAN RATING AC 120V. 60Hz CUL LISTED MODEL : AC-416... -
Page 2: Tools And Materials Required
1. TOOLS AND MATERIALS REQUIRED Philips screw driver Blade screw driver 11 mm wrench Step ladder Wire cutters 2. PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: a. Blade set (5) b. Hanger bracket c. -
Page 3: Safety Rules
3. SAFETY RULES 1. To reduce the risk of electric shock, insure 9. To avoid personal injury or damage to the electricity has been turned off at the fan and other items, be cautious when circuit breaker or fuse box before working around or cleaning the fan. -
Page 4: Mounting Options
4. MOUNTING OPTIONS If there isn't an existing CUL listed mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers. Secure the outlet box directly to the Outlet box building structure. Use appropriate fasteners and building materials. -
Page 5: Hanging The Fan
5. HANGING THE FAN REMEMBER to turn off the power. Follow CUL Listed electrical box the steps below to hang your fan properly. Hanger NOTE: This ceiling fan is supplied with two bracket types of hanging assemblies; the standard ceiling installation using the downrod with Mounting screws ball and socket mounting and the "close- (supplied with... - Page 6 CLOSE-TO-CEILING INSTALLATION 1. Remove the decorative canopy bottom cover from the canopy by depressing Canopy the three studs. (Fig. 8) 2. Pass the 120-volt supply wires through Canopy bottom cover the center hole in the ceiling hanger Figure 8 bracket as shown in Fig. 5. 3.
-
Page 7: Installation Of Safety Support
6. INSTALLATION OF SAFETY SUPPORT An additional safety support is provided to Hanger bracket Safety cable prevent the fan from falling. Secure the safety cable to the ceiling joist with screw and washer, as illustrated in Figure 11. Figure 11 7. - Page 8 Step 3. (Fig. 14 & 15) Receiver to House Supply Wires Electrical Connections: Outlet box Connect the black (hot) wire from the ceiling to the black wire marked "AC in L" White (neutral) Black (hot) from the receiver. Connect the white Green or bare copper (ground) (neutral) wire from the ceiling to the white...
-
Page 9: Installing The Wall Transmitter
8. INSTALLING THE WALL TRANSMITTER REMEMBER to Shut the Power Off at the Circuit Breaker or Fuse Box. WARNING: HOOK UP IN "SERIES ONLY" DO NOT CONNECT THE HOT AND NEUTRAL WIRES OF ELECTRIC CIRCUIT TO THE TRANSMITTER WALL SWITCH - DAMAGE TO THE SWITCH AND POSSIBLE FIRE COULD OCCUR. -
Page 10: Attaching The Fan Blades
10. ATTACHING THE FAN BLADES Caution: Remove 5 rubber packing mounts and discard before installation. Step 1 Attach the blade to the blade bracket using the screws and fiber washers as shown in Figure 19. Start screw into bracket. Repeat for the two remaining screws. -
Page 11: Installing The Light Bulbs & Glass Shade
12. INSTALLING THE LIGHT BULBS & GLASS SHADE 1. Install 3 x 40W candelabra bulbs (included). (Fig. 21) 2. Remove the decorative nut from the light kit. Place glass shade assembly over the light kit stem, secure with decorative nut. Do not overtighten. (Fig. - Page 12 13. OPERATING INSTRUCTIONS Restore power to ceiling fan and test for proper operation. A. HI, MED, and LOW buttons: These three buttons are used to set the fan speed as follows: HI= high speed Med= medium speed Low= low speed B.
-
Page 13: Troubleshooting
14. TROUBLESHOOTING Problem Solution Fan will not start. 1. Check circuit fuses or breakers. 2. Check line wire connections to the fan and switch wire connections in the switch housing. CAUTION: Make sure main power is off. 3. Check to make sure the dip switches from the transmitter and receiver are set to the same frequency.
