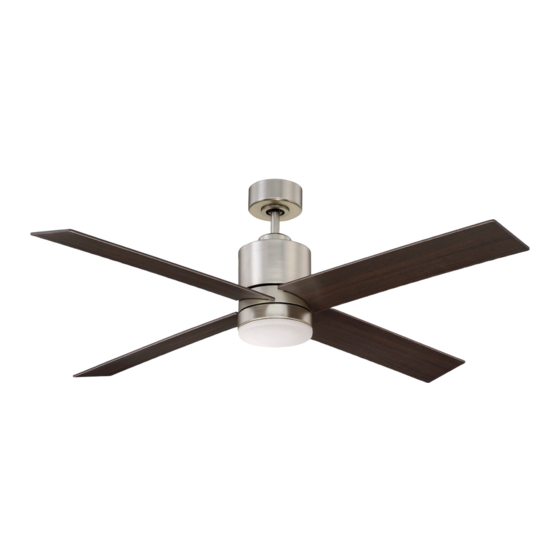

- Page 1 CEILING FAN OWNER'S MANUAL READ AND SAVE THESE INSTRUCTIONS MODEL: 52-6110-4WA-13 52-6110-4CN-SN 52-6110-4WH-WH FAN RATING AC 120V. 60Hz UL LISTED MODEL : AC-552...
-
Page 2: Tools And Materials Required
1. TOOLS AND MATERIALS REQUIRED Philips screw driver Blade screw driver 11 mm wrench Step ladder Wire cutters 2. PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items; a. Set of blades assembly (4) b. -
Page 3: Safety Rules
3. SAFETY RULES 1. To reduce the risk of electric shock, insure 9. To avoid personal injury or damage to the electricity has been turned off at the fan and other items, be cautious when circuit breaker or fuse box before working around or cleaning the fan. -
Page 4: Mounting Options
4. MOUNTING OPTIONS If there isn't an existing CUL listed mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers. Secure the outlet box directly to the Outlet box building structure. Use appropriate fasteners and building materials. -
Page 5: Hanging The Fan
5. HANGING THE FAN Hanger REMEMBER to turn off the power. Follow bracket the steps below to hang your fan properly: Step 1. Remove the decorative canopy Ceiling canopy bottom cover from the canopy by turning the cover counter clockwise. (Fig. 5) Canopy Step 2. -
Page 6: Installation Of Safety Support
6. INSTALLATION OF SAFETY SUPPORT An additional safety support is provided to Hanger bracket Safety cable prevent the fan from falling. Secure the safety cable to the ceiling joist with screw and washer, as illustrated in Figure 9. Figure 9 7. -
Page 7: Finishing The Installation
Step 3. (Figure 12) Receiver to House Supply Wires Electrical Connections: Outlet box Connect the black (hot) wire from the ceiling to the black wire marked "AC in L" White (neutral) Black (hot) from the receiver. Connect the white Green or bare (neutral) wire from the ceiling to the white copper (ground) Black ("AC IN L") -
Page 8: Attaching The Fan Blades
9. ATTACHING THE FAN BLADES Step 1. Insert the blade through the slot in the housing. Align the holes in the blade and the fan motor assembly and secure with a the screw and fiber washer. (Fig. 14) Slot Blade Fiber washers Screws Figure 14... -
Page 9: Installing The Led Light Kit & Glass Shade
11. INSTALLING THE LED LIGHT KIT & GLASS SHADE NOTE: Before starting installation, disco- nect the power by turning off the circuit breaker or removing the fuse at fuse box. Turning power off using the fan switch is not sufficient to prevent electric shock. Step 1. - Page 10 13. OPERATING INSTRUCTIONS Restore power to ceiling fan and test for proper operation. , and buttons: These three buttons are used to set the fan speed as follows: = high speed = medium speed = low speed button: This button turns the fan off. C.
-
Page 11: Troubleshooting
14. TROUBLESHOOTING Problem Solution Fan will not start. 1. Check circuit fuses or breakers. 2. Check line wire connections to the fan and switch wire connections in the switch housing. CAUTION: Make sure main power is off. 3. Check to make sure the dip switches from the transmitter and receiver are set to the same frequency.
