Summary of Contents for Savoy House M2012 Series

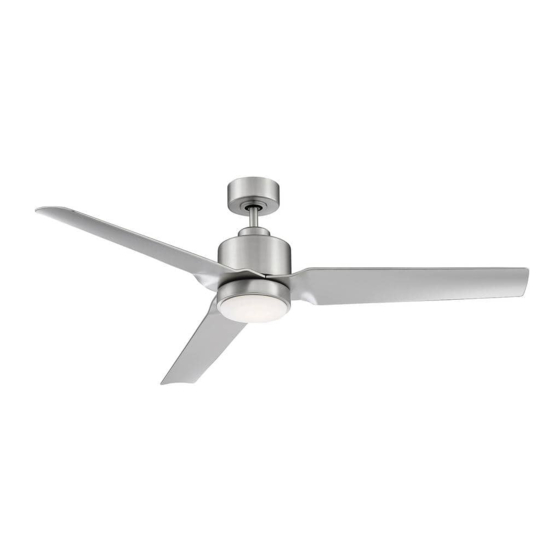

- Page 1 52” CEILING FAN OWNER'S MANUAL READ AND SAVE THESE INSTRUCTIONS MODEL: M2012XX FAN RATING AC 120V. 60Hz UL LISTED MODEL : AC-552DL...
-
Page 2: Tools And Materials Required
1. TOOLS AND MATERIALS REQUIRED Philips screw driver Blade screw driver 11 mm wrench Step ladder Wire cutters 2. PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: a. Set of blades assembly (3) b. -
Page 3: Safety Rules
3. SAFETY RULES 1. To reduce the risk of electric shock, insure 10. Do not use water or detergents when cleaning electricity has been turned off at the circuit the fan or fan blades. A dry dust cloth or lightly breaker or fuse box before beginning. -
Page 4: Mounting Options
4. MOUNTING OPTIONS If there isn't an existing UL listed mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers. Secure the outlet box directly to the building Outlet box structure. Use appropriate fasteners and building materials. -
Page 5: Hanging The Fan
5. HANGING THE FAN Hanger bracket REMEMBER to turn off the power. Follow the steps below to hang your fan properly: Ceiling Step 1. Remove the decorative canopy bottom canopy cover from the canopy by turning the cover counter clockwise. (Fig. 5) Canopy cover Step 2. -
Page 6: Make The Electric Connections
6. MAKE THE ELECTRIC Code switch CONNECTIONS WARNING: To avoid possible electrical shock, be sure electricity is turned off at the main fuse box before wiring. NOTE: This remote control unit is equipped with 16 code combinations to prevent possible Figure 9 interference from or to other remote units. -
Page 7: Finishing The Installation
7. FINISHING THE INSTALLATION Step 1. Tuck connections neatly into ceiling Outlet box outlet box. Step 2. Slide the canopy up to hanger bracket Hanger and place the key hole on the canopy over the bracket screw on the hanger bracket, turn canopy until it Screws locks in place at the narrow section of the key holes. - Page 8 9. INSTALLATING THE MOUNTING PLATE Step 1. Remove the 1 of 3 screws from the mounting ring and loosen the other 2 screws. (Do not remove) Step 2. Place the key holes on the mounting plate over the 2 screws previously loosened from the mounting ring, turn mounting plate until it locks in place at the narrow section of Mounting ring...
-
Page 9: Installing The Battery
11. INSTALLING THE BATTERY Insert the 3 volt battery (included) and make sure they are seated correctly in each recess with the Positive + sign facing up. (Fig. 16) Figure 16 12. OPERATING INSTRUCTIONS Restore power to ceiling fan and test for proper operation. -
Page 10: Care Of Your Fan
The Reverse switch is located on the motor housing. Slide the switch to the Left for warm weather operation. Slide the switch to the Right for cool weather operation. Speed settings for warm or cool weather depend on factors such as the room size. Ceiling height, number of fans and so on. -
Page 11: Troubleshooting
14. TROUBLESHOOTING Problem Solution Fan will not start. 1. Check circuit fuses or breakers. 2. Check line wire connections to the fan and switch wire connections in the switch housing. CAUTION: Make sure main power is off. 3. Check to make sure the dip switches from the transmitter and receiver are set to the same frequency.
