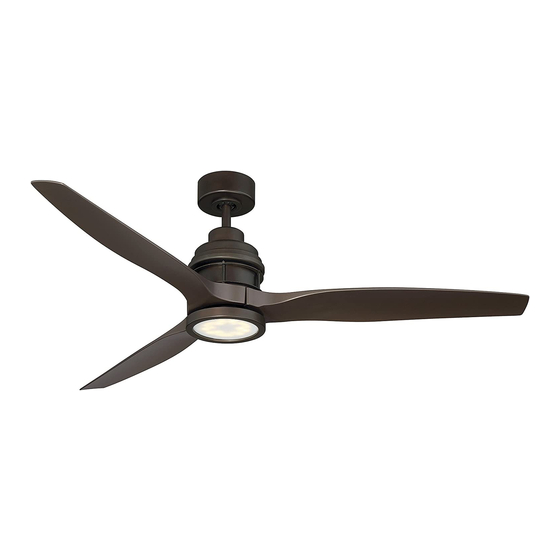

- Page 1 CEILING FAN OWNER'S MANUAL READ AND SAVE THESE INSTRUCTIONS MODEL: 60-5025-313-13 60-5025-3SV-SN 60-5025-3KO-SN FAN RATING AC 120V. 60Hz UL LISTED MODEL : LP8146(FN666)
-
Page 2: Tools And Materials Required
1. TOOLS AND MATERIALS REQUIRED Philips screw driver Blade screw driver 11 mm wrench Step ladder Wire cutters 2. PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items; a. Set of blades assembly (3) b. -
Page 3: Safety Rules
3. SAFETY RULES 1. To reduce the risk of electric shock, insure 9. To avoid personal injury or damage to the electricity has been turned off at the fan and other items, be cautious when circuit breaker or fuse box before working around or cleaning the fan. -
Page 4: Mounting Options
4. MOUNTING OPTIONS If there isn't an existing CUL listed mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers. Secure the outlet box directly to the Outlet box building structure. Use appropriate fasteners and building materials. -
Page 5: Hanging The Fan
5. HANGING THE FAN Hanger REMEMBER to turn off the power. Follow bracket the steps below to hang your fan properly: Step 1. Remove the decorative canopy Ceiling canopy bottom cover from the canopy by turning the cover counter clockwise. (Fig. 5) Canopy Step 2. -
Page 6: Installation Of Safety Support
6. INSTALLATION OF SAFETY SUPPORT An additional safety support is provided to Hanger bracket prevent the fan from falling. Secure the Safety cable safety cable to the ceiling joist with screw and washer, as illustrated in Figure 9. Figure 9 7. -
Page 7: Finishing The Installation
8. FINISHING THE INSTALLATION Outlet box Step 1. Tuck connections neatly into ceiling outlet box. Hanger bracket Step 2. Slide the canopy up to hanger Screws bracket and place the key hole on the canopy over the screw on the hanger bracket, turn canopy until it locks in place at the narrow section of the key holes. -
Page 8: Mounting Plate
10. INSTALLATING THE LED Light kit MOUNTING PLATE assembly Step 1. Remove the light shade from the LED light kit assembly. (Fig. 13) Step 2. Remove the LED light kit from the Light shade mounting plate. (Fig. 14) Figure 13 Step 3. - Page 9 11. INSTALLING THE LED LIGHT KIT & LIGHT SHADE NOTE: Before starting installation, disconect the power by turning off the circuit breaker or removing the fuse at fuse box. Turning power off using the fan switch is not sufficient to prevent electric shock.
- Page 10 12. OPERATING INSTRUCTIONS F. The " " button is used to set the fan Insert the 3 volt battery (included) and make forward or reverse, press the button sure the battery is properly seated with the forward (for warm weather) or reverse Positive + sign facing up.
- Page 11 Pairing Process: The auto-learning process will only initiate This receiver provides the following protective within the first 60 seconds of supplying power function: to the fan. 1. Lock Rotor Position: The DC motor has a Beginning with the fans power off, restore built-in safety against a stalled or locked rotor power to the fan.
-
Page 12: Care Of Your Fan
Speed settings for warm or cool weather depend on factors such as the room size. Ceiling height, number of fans and so on. NOTE: To operate the reverse function on this fan, press the reverse button while the fan is running. Warm weather - (Forward) A downward airflow creates a cooling effect as shown in Fig. -
Page 13: Troubleshooting
14. TROUBLESHOOTING Problem Solution Fan will not start. 1. Check circuit fuses or breakers. 2. Check line wire connections to the fan and switch wire connections in the switch housing. CAUTION: Make sure main power is off. 3. Check to make sure the dip switches from the transmitter and receiver are set to the same frequency.
