GlassProtect User manual
Updated January 24, 2022

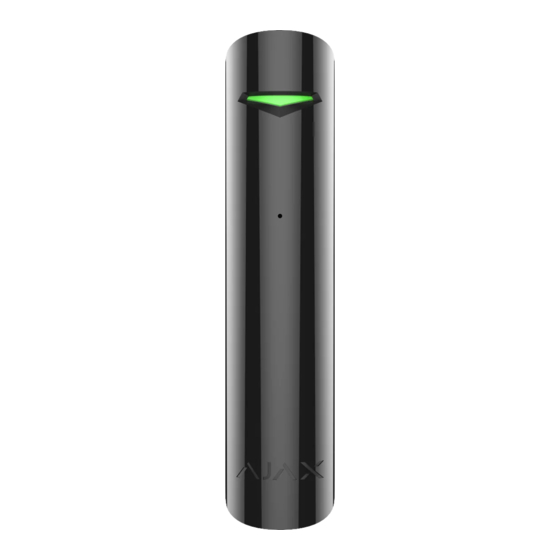

GlassProtect is a wireless indoor glass break detector recognizing the sound of
shattering the glass at a distance of up to 9 meters. GlassProtect can operate up to
7 years from a pre-installed battery and has a socket for connecting a third-party
wired detector.
GlassProtect connects to the Ajax security system via the protected
Jeweller
radio
protocol. The communication range is up to 1,000 meters in line of sight. Also,
GlassProtect can be connected to third-party security systems using the
Ajax
uartBridge
or
Ajax ocBridge Plus
integration modules.
Users can configure GlassProtect via the
Ajax app
for macOS, Windows, iOS, or
Android. The system notifies users of all events through push notifications, SMS,
and calls (if activated).
The user can connect the Ajax security system to the central monitoring station of

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GlassProtect and is the answer not in the manual?

Questions and answers

Related Manuals for AJAX GlassProtect

Summary of Contents for AJAX GlassProtect

  • Page 1 GlassProtect is a wireless indoor glass break detector recognizing the sound of shattering the glass at a distance of up to 9 meters. GlassProtect can operate up to 7 years from a pre-installed battery and has a socket for connecting a third-party wired detector.

  • Page 2: Functional Elements

    . Device switch 7. Tamper button Operating Principle GlassProtect uses a sensitive electret microphone to detect the sound of glass breaking, consisting of a low-frequency hit sound and high-frequency crashing sound of glass shatters. Such two-stage glass break detection decreases the risk...
  • Page 3 GlassProtect detector does not react to the breaking of the film-covered glass: shockproof, sunscreen, decorative, or any other type of film. To detect the breaking of such kind of glass, we recommend using the DoorProtect Plus wireless opening detector with shock and tilt sensors.
  • Page 4 3. Tap Add — the countdown will start. 4. Switch on the device. For detection and pairing to occur, the detector should be located within the coverage area of the wireless network of the hub (at a single protected object). The connection request is transmitted for a short time: at the moment of switching on the device.
  • Page 5 States The states screen contains information about the device and its current parameters. Find the GlassProtect states in the Ajax app: 1. Go to the Devices tab. 2. Select GlassProtect from the list.
  • Page 6 Battery level of the device. Displayed as a percentage Battery Charge How battery charge is displayed in Ajax apps The tamper state, which reacts to the detachment of or damage to the detector body Entry delay (alarm activation delay) is the time you have to disarm the security system after entering the room.
  • Page 7 The sensitivity level is selected based on the detection zone test results of the Status of the external detector connection to External contact GlassProtect If the option is active, the detector is always in armed mode and notifies about alarms Always Active Learn more When enabled, a siren notifies about opening...
  • Page 8 (specified in the settings for Devices Auto Deactivation). The feature is configured in the Ajax PRO app By timer — the device is automatically disabled by the system when the recovery timer expires (specified in the settings for Devices Auto Deactivation).
  • Page 9 Selecting delay time when entering. Delay when entering (alarm activation delay) is the time you have to disarm the security system after entering the room. Delay When Entering, sec Functions for the connected wired detector only. What is delay when entering Selecting the delay time when exiting.
  • Page 10 High The sensitivity level is selected based on the detection zone test results of the If active, GlassProtect registers external detector External contact alarms If the option is active, the detector is always in armed mode and notifies about alarms...
  • Page 11 3.50 and later) Signal Attenuation Test What is Attenuation Test User Guide Opens GlassProtect User Guide in the Ajax app Allows the user to disconnect the device without removing it from the system. Three options are available: No — the device operates normally and transmits all alarms and events Entirely —...
  • Page 12 5. Select the siren notification for the event If external contact is open (available if the External contact option is enabled). . Select the chime sound (siren tone): 1 to 4 short beeps. Once selected, the Ajax app will play the sound.

  • Page 13: Functionality Testing

    Functionality testing The Ajax security system allows conducting tests for checking the functionality of connected devices. The tests do not start immediately but within a period of 36 seconds when using standard settings. The test time start depends on the settings of the detector ping interval (the paragraph on “Jeweller”...

  • Page 14: Installing The Device

    Installing the device Selecting the Location In some cases, the household activity can cause false alarms The location of GlassProtect depends on its remoteness from the hub, and obstacles hindering the radio signal transmission: walls, floors, large objects inside the room.
  • Page 15 5. inside premises with the temperature and humidity beyond the range of permissible limits; . closer than 1 m to the hub. GlassProtect recognizes glass break at a distance of up to 9 meters. Its microphone should be positioned no more than 90 degrees relative to the window(s).
  • Page 16 If LED doesn’t blink after fixing in SmartBracket, check the status of the tamper in the Ajax app and then the fixing tightness of the panel. If someone detaches the detector from the surface or takes it off the attachment panel, the security system notifies you.

  • Page 17: Maintenance

    We recommend installing the wired detector at a distance no longer than 1 meter to GlassProtect. Longer wire length increases the risk of its damage and reduces the quality of communication between the detectors. To put out the wire from the detector body, break out the plug: If the connected wired detector is triggered, you receive the notification.

  • Page 18: Tech Specs

    5 minutes ping interval by the hub). If the detector battery is low, the system notifies the user, and the LED indicator smoothly lights up and goes off if a glass break is detected or the tamper is triggered. How long Ajax devices operate on batteries, and what affects this Battery Replacement Tech specs...

  • Page 19: Complete Set

    EN 50131-1, EN 50131-2-7-1, EN 50131-5-3 Compliance with standards Complete Set 1. GlassProtect 2. SmartBracket mounting panel 3. Battery CR123A (pre-installed) 4. Outside-mounted terminal clamp 5. Installation kit . Quick Start Guide Warranty Warranty for the “AJAX SYSTEMS MANUFACTURING” LIMITED LIABILITY...
  • Page 20 If the device does not work correctly, you should first contact the support service — in half of the cases, technical issues can be solved remotely! The full text of the warranty User Agreement Technical support: support@ajax.systems Subscribe to the newsletter about safe life. No spam Email Subscribe...
