GlassProtect S Jeweller User manual

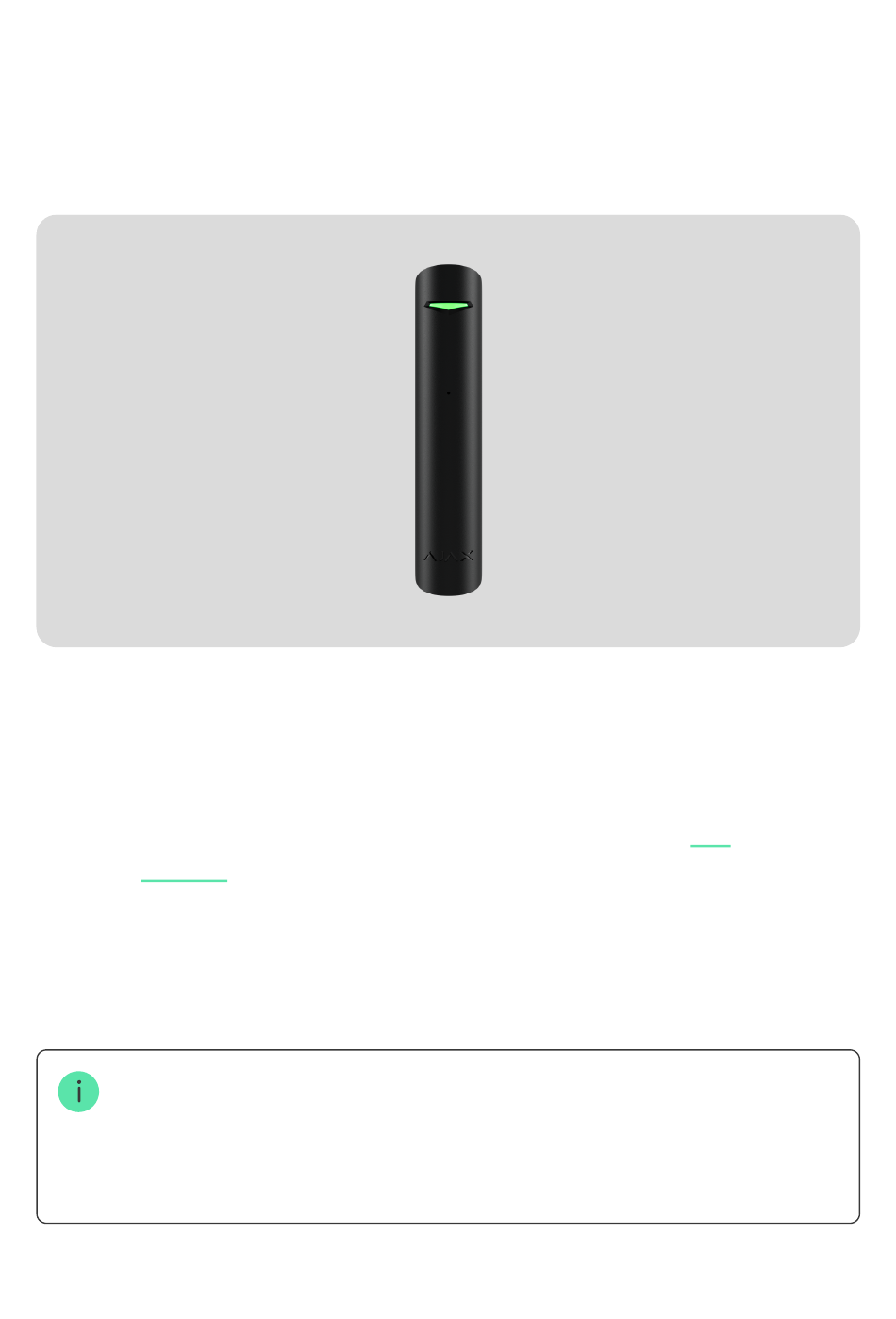

GlassProtect S Jeweller is a wireless indoor glass break detector that
recognizes the sound of shattering glass at a distance of up to 9 meters.
GlassProtect S operates within the Ajax system, connected to a
protected
Jeweller
1,000 meters. GlassProtect S operates from a pre-installed battery for up to 7
years and has a socket for connecting a third-party wired detector. The device is
designed for indoor use only.
This product line is developed for projects. Only accredited Ajax Systems partners can
sell, install and administer Superior products.
Superior, Fibra, and Baseline product lines are mutually compatible. This opens up
numerous possibilities for building systems of any configuration.
Functional elements
Updated June 26, 2024
protocol. The communication range in an open space is up to
hub
via the

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GlassProtect S Jeweller and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AJAX GlassProtect S Jeweller

Summary of Contents for AJAX GlassProtect S Jeweller

  • Page 1 The device is designed for indoor use only. This product line is developed for projects. Only accredited Ajax Systems partners can sell, install and administer Superior products. Superior, Fibra, and Baseline product lines are mutually compatible. This opens up numerous possibilities for building systems of any configuration.
  • Page 2 . Triggered when there is an attempt to tear the detector off the surface or remove it from the mounting panel. . QR code with the device ID. It is used to pair the device with an Ajax hub. 9. Holding screw to secure the detector on SmartBracket.

  • Page 3: Operating Principle

    Operating principle 00:00 00:12 GlassProtect S Jeweller is a wireless glass break detector. It responds to glass breaking using a built-in electret microphone. The detectorʼs microphone with the DualTone digital algorithm only responds to sound vibrations characteristic of the sound of glass breaking, cutting off false alarms.
  • Page 4 This algorithm ensures that the detector does not respond to the barking of dogs or cars passing the protected facility. Sending events to the monitoring station The Ajax system can transmit alarms to the PRO Desktop monitoring app as...

  • Page 5: Adding To The System

    The hub and the device operating at different radio frequencies are incompatible. The radio-frequency range of the device may vary by region. We recommend purchasing and using Ajax devices in the same region. You can check the range of operating radio frequencies with the...
  • Page 6 . Ensure the space is disarmed, and the hub is not starting an update by checking statuses in the Ajax app. This product line is developed for projects. Only accredited Ajax Systems partners can install and administer Superior products. Connecting to the hub 1.
  • Page 7 When added to a new hub, the detector is not removed from the device list of the old hub. This must be done through the Ajax app. For successful detection and pairing, ensure the detector is located within the coverage area of the hub’s wireless network (at a single protected site).
  • Page 8 Malfunctions The Ajax app displays a malfunction counter on the device icon when a malfunction is detected. All malfunctions are shown in the detector states. Fields with malfunctions will be highlighted in red. A malfunction is displayed if: The detector temperature is outside acceptable limits.
  • Page 9 The icons display some GlassProtect S states. To access them: 1. Sign in to the Ajax app 2. Select the hub. 3. Go to the Devices tab. Icon Meaning Jeweller signal strength. Displays the signal strength between the detector and hub or range extender.
  • Page 10 Learn more Entry delay is enabled. Delays only affect the third-party detector. Learn more Exit delay is enabled. Delays only affect the third-party detector. Learn more GlassProtect S will arm in Night Mode. Learn more The external contact of the GlassProtect S detector (a third-party wired detector) is on.
  • Page 11 The device was not transferred to the new hub. Learn more States The States screen contains information about the device and its current parameters. Find GlassProtect S states in the Ajax app: 1. Go to the Devices tab. 2. Select GlassProtect S from the list.
  • Page 12 Battery level of the device. Displayed as a percentage. Battery Charge How battery charge is displayed in Ajax apps Tamper is triggered if someone tries to detach the device from the surface or damage the enclosure. There are two states: Open —...
  • Page 13 Learn more Sensitivity Sensitivity level of the detectorʼs microphone. Status of the external detector connection to GlassProtect S: Disabled — the external contact is disabled (the option is disabled in the app). External contact Open — the external contact is connected and in the open state.
  • Page 14 No — the device operates in the normal mode. Lid only — notifications on the tamper triggering are disabled until the first disarm. Entirely — the detector is entirely excluded from the operation of the system until the first disarm. The device does not execute system commands and does not report alarms or other events.
  • Page 15 Delays only affect the third-party detector. Learn more If this option is enabled, the detector will go into the armed mode when the system is set to the Night Mode. Arm in Night Mode Learn more The time of Delay When Entering in the Night mode.
  • Page 16 To change GlassProtect S Jeweller settings in the Ajax app: 1. Go to the Devices tab. 2. Select GlassProtect S from the list. 3. Go to Settings by clicking on the 4. Set the required parameters. 5. Click Back to save the new settings.
  • Page 17 Allows you to disable the flashing of the LED indicator during an alarm. Available for devices with firmware version 5.55.0.0 or higher. Alarm LED indication How to find the firmware version or the ID of the detector or device Selecting the sensitivity level of the microphone: Low.
  • Page 18 raise the alarm even if triggered until the countdown ends. Follower — the detector inherits the delays from Entry/Exit detectors. However, when the Follower is triggered individually, it immediately raises the alarm. Selecting delay time when entering. Delay when entering (alarm activation delay) is the time you have to disarm the security system after entering the room.
  • Page 19 Learn more Switches the detector to the signal fade test mode. Signal Attenuation Test Learn more Opens GlassProtect S user manual in the Ajax User Guide app. Allows the user to disconnect the device without removing it from the system.
  • Page 20 GlassProtect S and that the External contact option is enabled in the GlassProtect S settings in the Ajax app. Chime is a sound signal that indicates the triggering of the opening detectors when the system is disarmed.

  • Page 21: Functionality Testing

    Functionality testing The Ajax system offers several tests to help select the device installation place. Tests do not start immediately. However, the waiting time does not exceed the duration of one “hub—device” polling interval. The polling interval can be checked and configured at hub settings (Hub →...

  • Page 22: Testing The Detector

    Testing the detector Hit the glass with your fist without breaking it. If the detector catches a low- frequency sound, the LED lights up. Simulate a high-frequency glass shattering sound for 1.5 seconds after the first hit with a special tool or hitting a glass with a metal object.

  • Page 23: Signal Strength

    The device is designed for indoor use only. When choosing where to place GlassProtect S Jeweller, consider the parameters that affect its operation: Glass break detection zone. Jeweller signal strength. Distance between the detector and the hub and radio signal range extender.

  • Page 24: Detection Zone

    the device, as repositioning even by 20 cm can significantly improve the signal strength. If there is still a poor or unstable signal after the relocation, use a radio signal range extender Detection zone When choosing a place to install the detector, run a Detection zone test to check the operation of the device and determine the sector in which the detector...

  • Page 25: Installation

    3. In places with fast air circulation — for example, near fans, open windows, or doors. This can lead to false alarms of the break detector. 4. In places where objects or structures can interfere with the passage of sound to the detector. For example, in places where the curtains will be between the window and the GlassProtect S.
  • Page 26 If the LED indicator doesn’t light up while placing the detector on SmartBracket, check the tamper status in the Ajax app, the integrity of the fastening, and the tightness of the detector fixation on the panel.
  • Page 27 10. Tighten the holding screw on the bottom of the detector’s enclosure for more reliable fastening and protection from quick dismantling. Connecting a third-party wired detector A wired detector with an NC (normally closed) contact type can be connected to GlassProtect S using the in-built terminal clamp.

  • Page 28: Maintenance

    LED indicator smoothly lights up and goes off if a glass break is detected or the tamper is triggered. Battery Replacement Technical specifications All technical specifications of GlassProtect S Jeweller Compliance with standards Setup in compliance with EN requirements...

  • Page 29: Warranty

    Warranty Warranty for the Limited Liability Company “Ajax Systems Manufacturing” products is valid for 2 years after the purchase and does not apply to the pre- installed battery. If the device does not work correctly, you should first contact the support service —...
