GlassProtect User manual
Updated June 8, 2020

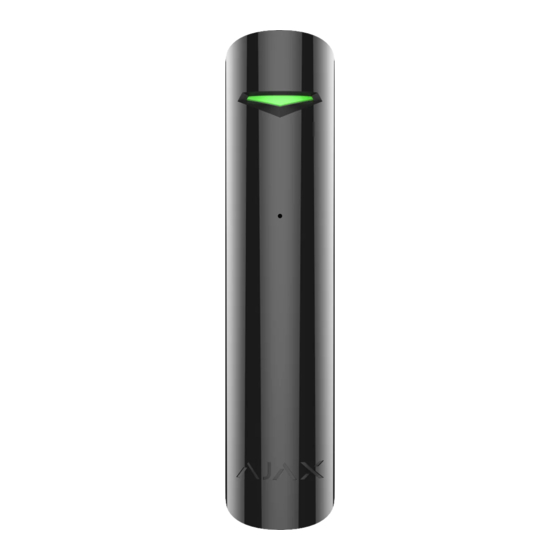

GlassProtect is a wireless indoor glass break detector recognizing the sound of
shattering the glass at a distance of up to 9 meters. GlassProtect can operate
up to 7 years from a pre-installed battery and has a socket for connecting a
third-party wired detector.
GlassProtect connects to the Ajax security system via the protected
Jeweller
radio protocol. The communication range is up to 1,000 meters in line of sight.
Also, GlassProtect can be connected to third-party security systems using the
Ajax uartBridge
or
Ajax ocBridge Plus
integration modules.
Users can con gure GlassProtect via the
Ajax app
for macOS, Windows, iOS, or
Android. The system noti es users of all events through push noti cations, SMS,
and calls (if activated).
The user can connect the Ajax security system to the central monitoring station
of a security company.
Buy breakage detector GlassProtect

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GlassProtect and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AJAX GlassProtect

Summary of Contents for AJAX GlassProtect

  • Page 1 GlassProtect is a wireless indoor glass break detector recognizing the sound of shattering the glass at a distance of up to 9 meters. GlassProtect can operate up to 7 years from a pre-installed battery and has a socket for connecting a third-party wired detector.

  • Page 2: Functional Elements

    6. Device switch 7. Tamper button Operating Principle GlassProtect uses a sensitive electret microphone to detect the sound of glass breaking, consisting of a low-frequency hit sound and high-frequency crashing sound of glass shatters. Such two-stage glass break detection decreases the risk of false triggering.
  • Page 3 DoorProtect Plus wireless opening detector with shock and tilt sensors. If triggered, GlassProtect immediately transmits the alarm signal to the activating the sirens (if connected) and notifying the user and security company.
  • Page 4 3. Tap Add — the countdown will start. 4. Switch on the device. For detection and pairing to occur, the detector should be located within the coverage area of the wireless network of the hub (at a single protected object). The connection request is transmitted for a short time: at the moment of switching on the device.
  • Page 5 Connecting to Third-Party Systems To connect the detector to a third-party central unit using the uartBridge ocBridge Plus integration module, follow the recommendations in the user manual of the respective device. States 1. Devices 2. GlassProtect...
  • Page 6 Sensitivity Sensitivity level of the sensor Status of the external detector connection to Secondary detector GlassProtect Displays the status of using the radio signal Routed Through ReX range extender ReX Always Active Indicates whether the detector is always armed...
  • Page 7 Settings 1. Devices 2. GlassProtect 3. Settings Setting Value First eld Detector name, can be edited Room Selecting the virtual room to which the device is assigned...
  • Page 8 Selecting delay time when entering. The option Delay when entering, sec is available only with a connected wired detector. Selecting delay time on exit. The option is Delay when leaving, sec available only with a connected wired detector. Delays in night mode Delay turned on when using night mode If active, the detector will switch to armed mode Arm in night mode...

  • Page 9: Functionality Testing

    Functionality testing The Ajax security system allows conducting tests for checking the functionality of connected devices. The tests do not start immediately but within a period of 36 seconds when using standard settings. The test time start depends on the settings of the detector scanning period (the paragraph on “Jeweller”...

  • Page 10: Installing The Device

    Installing the device Selecting the Location In some cases, the household activity can cause false alarms The location of GlassProtect depends on its remoteness from the hub, and obstacles hindering the radio signal transmission: walls, oors, large objects inside the room.
  • Page 11 5. inside premises with the temperature and humidity beyond the range of permissible limits; 6. closer than 1 m to the hub. GlassProtect recognizes glass break at a distance of up to 9 meters. Its microphone should be positioned no more than 90 degrees relative to the window(s).
  • Page 12 GlassProtect using the in-built terminal clamp. We recommend installing the wired detector at a distance no longer than 1 meter to GlassProtect. Longer wire length increases the risk of its damage and reduces the quality of communication between the detectors.

  • Page 13: Maintenance

    If the connected wired detector is triggered, you receive the noti cation. Maintenance Check the operational capability of the detector regularly. Clean the detector body from dust, spider web, and other contaminants as they appear. Use soft dry napkin suitable for tech equipment. Do not use any substances containing alcohol, acetone, gasoline, and other active solvents to clean the detector.

  • Page 14: Complete Set

    Security Grade 2, Environmental Class II in Certi cation conformity with the requirements of EN 50131-1, EN 50131-2-7-1, EN 50131-5-3 Complete Set 1. GlassProtect 2. SmartBracket mounting panel 3. Battery CR123A (pre-installed) 4. Outside-mounted terminal clamp 5. Installation kit 6. Quick Start Guide...

  • Page 15: Warranty

    Warranty Warranty for the “AJAX SYSTEMS MANUFACTURING” LIMITED LIABILITY COMPANY products is valid for 2 years after the purchase and does not apply to the pre-installed battery. If the device does not work correctly, you should rst contact the support service —...
  • Page 16 In this section you’ll nd detailed manuals and educational videos about all features of Ajax. And in case you need help of a technical specialist, we’re available 24/7. Send request...
