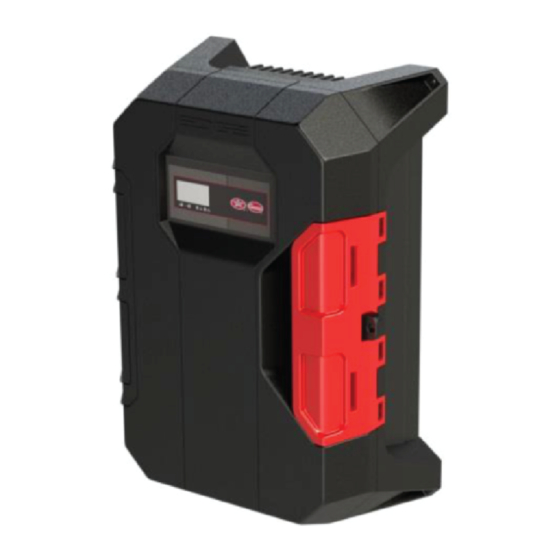

Page 1 EDGE 2 System Models: 074-11854, 074-11855, 074-11865, 074- 11795, 074- 11796, 074-11797, 064-11344, 064-11343 Installation Manual 890–00687 Version 00 Date: 04-28-22 REV00...
Page 2 All information, illustrations, photos, and specifications in this manual are based on the latest information available at the time of publication. The right is reserved to make changes at any time without notice. 890–00687 EDGE 2...
Page 3: Table Of Contents
Contents Chapter 1 Introduction..........................5 System Overview ........................5 Expansion Boxes ........................6 External Modules Overview......................8 EDGE 2 Basic Network........................9 Expansion Plug-In Modules......................9 Expansion Box Nomenclature ....................10 EDGE Variable Output (SSR) ..................... 11 Reference Documents .......................12 Contact information ........................13 General Safety Precautions and Usage..................15 Telecommunication Advice......................16 Terms of Use ..........................17 Inspecting Your Received System....................18...
Page 4 Connecting the Current Sensors of Discrete Outputs ..............83 Chapter 6 Installation Order Overview.....................85 EDGE 2 System Installation Order....................85 EDGE 2 System Configuration ....................85 EDGE 2 System Operation Summary ..................86 Chapter 7 Getting started ........................87 Main Page Navigation........................88 EDGE 2 Menu Structure ......................89 Room Screen Navigation Overview ....................90...
Page 5: Chapter 1 Introduction
Introduction Topics Covered in this Chapter ▪ System Overview ▪ Contact information ▪ General Safety Precautions and Usage ▪ Telecommunication Advice ▪ Terms of Use ▪ Inspecting Your Received System ▪ Ordering Information System Overview EDGE system is an agricultural site management system designed to monitor and control a farm environ- ment.
Page 6: Expansion Boxes
Chapter 1: Introduction Figure 1-1 Redundancy Scheme Expansion Boxes The Expansion Boxes are supplied using the mains electrical supply. The Expansion Boxes communicate with the system’s Main Controller via RS485 through low voltage (24Vdc) communication cables (Auto- mation and Safety). Multiple Expansion Boxes can be used in one EDGE system. These Expansion Boxes are designed to accommodate various electronic cards (Expansion Plug-in Modules), each designed for different monitoring/control applications.
Page 7 Chapter 1: Introduction Figure 1-2 Enclosure Identification 890–00687 EDGE 2...
Page 8: External Modules Overview
Chapter 1: Introduction External Modules Overview External modules can be added to the basic EDGE system to extend its functionality by the RS485 links (Automation or Safety). EDGE RS485 Repeater The EDGE RS485 Repeater allows you to extend the RS485 network and can also be used to add the RS485 to different networks (T-Branch and H-Branch).
Page 9: Edge 2 Basic Network
Chapter 1: Introduction EDGE Weather Station can measure wind speed, wind direction, outside temperature, outside humidity, and atmospheric pressure. EDGE 4IN-2V-8DO This module allows the control of 8 control outputs (pilot duty) and the contacts feedback reading of relays or contactors from loads. This module is used to build virtual Expansion Box. The module is an opened enclosure which have to put in a cabinet.
Page 10: Expansion Box Nomenclature
Chapter 1: Introduction Table 1-1 Plug-in Modules Used in Expansion Boxes (cont'd.) EDGE 4IN-12V Four sensor inputs (4-20mA, 0-5V, temperature, dry contact). This module can have up to 12 analog outputs to control 0-10Vdc devices or variable output modules. EDGE 4IN-8REL FAILSAFE W/ Four sensor inputs (4-20mA, 0-5V, temperature, dry contact).
Page 11: Edge Variable Output (Ssr)
Chapter 1: Introduction Power supply: The 3-Slot Expansion Box can have either a 60W or 120W power supply. The 6-Slot Expansion Box has only a 120W power supply. The variable output number is the number of variable output modules (SSR) installed in the Expansion Box.
Page 12: Reference Documents
• Details on installation and initial configuration of the EDGE 2 System can be found in the EDGE 2 System Installation Manual #890-00687. • Details on the operation of the EDGE 2 System can be found in the EDGE 2 System User’s Manual #890-00686.
Page 13: Contact Information
— #891-00597: EDGE 2 - Redundant System — #891-00598: EDGE 2 - General Wiring Information • Details how to convert EDGE 1 system into EDGE 2 system can be found in the quick start guide # 892-00097. • Details how to install EDGE 2 WIFI in EDGE 2 Controllers can be found in the quick start guide # 892-00100.
Page 14 5200 Armand Frappier Saint-Hubert, Qc Canada J3Z 1G5 Phone: 1-877-926-2777 Fax:1-866-880-2777 E-mail: gsie_sales@agcocorp.com Support Automated Production Systems (AP/Cumberland) Technical Support: 712-239-1011 Phone: 217-226-4449 International Phone: 217-226-4401 Fax: 217-226-3540 International Fax: 217-226-4420 E-mail : apsales@automatedproduction.com BRAZIL Contact your nearest GSI authorized representative. Consult the Brazilian representative list at: http://www.gsibrasil.ind.br/...
Page 15: General Safety Precautions And Usage
Chapter 1: Introduction Warranty is void if this product is used in a manner not specified by the manufacturer. Every effort has been made to ensure that this manual is complete, WARNING accurate and up to date. The information contained in this manual is subject to change without notice.
Page 16: Telecommunication Advice
Chapter 1: Introduction Safety Messages Turn off the main electrical disconnect switch prior to servicing any of the boxes. Failure to do so might lead to serious injury or death. DANGER Always use extreme caution when measuring voltage or performing procedures that require a module to be powered on.
Page 17: Terms Of Use
Chapter 1: Introduction FCC Antenna Gain Restriction The Redpine Wireless radio (M7DB6) has been designed to operate with any patch antenna up to 2.6 dBi of gain at 2.4GHz, or any patch up to 4dBi of gain at 5GHz. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm (7-7/8 in.) from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter.
Page 18: Inspecting Your Received System
Chapter 1: Introduction • Use of the system in a manner not specified by these instructions may impair the safety protection provided by the system. Do not operate the system outside its rated supply voltages or environmen- tal range • Omission to read the installation and user manuals or to comply with the warnings and references contained herein can result in serious bodily injury or damages to the controllers •...
Page 19: Ordering Information
• 2 x EDGE Expansion Boxes or 1 x Expansion Box and 1 x External Power Supply of 150W on Safety Network The following external modules can be connected to a basic EDGE 2 System to add more functionality: • EDGE RS485 Repeater •...
Page 20 • Redundant Main Controller using Cellular network Redundant Power Supply The EDGE 2 System uses a redundant power supply The maximum distance of the DC power cable is 500ft (150m) using a wire gauge of 16AWG from the first EDGE Expansion Box to the last EDGE 2 Controller on the EDGE network. Over this distance, use an EDGE PSU 24V 36W to supply power to the EDGE 2 Controllers.
Page 21 NOTE: NOTE: Failsafe Plug-In Modules enter into a Failsafe Mode when powered down. Variable Light Dimmer Outputs By using EDGE 4IN-6R-2LD modules, EDGE 2 system allows 8 Amps lights dimming per channel in a livestock building. It has been designed to accommodate various models of dimmable compact fluores- cent lights (CFL), dimmable cold cathode fluorescent lamps (CCFL), dimmable Light Emitting Diodes (LED).
Page 22 NOTES 890–00687 EDGE 2...
Page 23: Chapter 2 Pre-Installation Planning
• Redundant Main Controller using Cellular network Redundant Power Supply The EDGE 2 System uses a redundant power supply. Depending on the option you choose, the planning and installation will be different. (28W max of DC load with 6 Slot Expansion Box on EDGE network, 60W...
Page 24 Chapter 2: Pre-Installation Planning • For a 6 Slot Expansion Box => use two 3 Slot Expansion Boxes. • Use an Expansion Box with an external power supply of 150 Watts wired on the Safety Network. Use Dual links on (Automation | Safety). Failsafe Plug-in Modules You can purchase Failsafe Plug-In Modules that relay output contacts if the relay coil is de-energized in the event and Failsafe Mode of a power outage.
Page 25: Power Supply
Chapter 2: Pre-Installation Planning • Do not connect both the opening and the closing of an inlet machine to normally closed (NC) con- tacts of two different relays • The open and close outputs of a given inlet must be on the same board •...
Page 26 Chapter 2: Pre-Installation Planning The maximum distance of the DC power cable is 500ft (150m) with a wire of 16AWG from the EDGE Expansion Box to the last EDGE 2 Controller on the EDGE network. WARNING Over this distance, use an EDGE PSU 24V 36W to supply power to the EDGE 2 Controllers.
Page 27: Guidelines For Operating Environment
Chapter 2: Pre-Installation Planning Equipment and Load Planning According to the needs, the installer manual gives the maximum output rating accorded per load or equip- ment type. According to the maximum output rating, the number of equipment or loads allowed per output is limited per the power factor or the service factor of the equipment or loads.
Page 28: Guidelines For Installation Location
Ethernet Ports Ethernet Port Protection AP\Cumberland recommends the use of another Ethernet protection step when the Ethernet cable has to go from one barn to another using the Ethernet switches. This recommendation is applicable regardless of the way it is used to link both barns.
Page 29 Chapter 2: Pre-Installation Planning Operational Clearance — EDGE 2 Controllers Mount the EDGE 2 Controllers and the EDGE PSU 24V 36W in a location that has sufficient air circulation around the box and can be easily accessed for service. Minimum clearance for an EDGE PSU 24V 36W is 22”...
Page 30 Chapter 2: Pre-Installation Planning 890–00687 EDGE 2...
Page 31: Guidelines For Routing Cables
NOTICE order to connect into the enclosure. AP/Cumberland recommends two installation possibilities: • Use a 6 inch by 6 inch electrical trough installed at least 12 inches below the enclosure to pass the connections through before connecting to the EDGE •...
Page 32 Chapter 2: Pre-Installation Planning It is important to respect the clearances above and below the enclosure to allow airflow to the heatsink. WARNING Nylon Cable Glands NOTE: Nylon cable glands are permitted for cable or wire fastening. Use watertight compression cable glands rated IP54 for each cable used. WARNING Use silicone to seal the cable gland rated IP54 if more than one cable is use in the same cable gland.
Page 33: Grounding Recommendations For The System
Chapter 2: Pre-Installation Planning Do not use rigid conduits over 1 inch (25.4mm) for the EDGE 2 Controllers. Do not use rigid conduits over 2 inches (50.8mm) for the EDGE 3-Slot Expansion Box and WARNING the EDGE 6-Slot Expansion Box. Cable Routing and Underground Trench IMPORTANT: The same rules are applicable for the underground trench.
Page 34: Installation Guidelines
Chapter 2: Pre-Installation Planning • If the bedrock is more than 3 meters (10 feet) below ground level, drive the grounding rod vertically 3 meters (10 feet) into the ground. • If the bedrock is more than 1.2 meters (47 inches) below ground level, drive the rod into the ground to bedrock level and bury the remainder horizontally at least 0.6 meters (2 feet) below ground level.
Page 35: Light Dimmer Outputs (4In-6R-2Ld)
NOTE: An additional snubber has to be installed on coil contactor when using external switchgears. Circuit Breaker • AP\Cumberland recommends connecting only one device per Expansion Box output and to connect each device on a separate circuit breaker. • If your Expansion Box has no power-on switch, an external switch or circuit breaker must be included in the building installation to interrupt power to L and N electric power lines.
Page 36 Chapter 2: Pre-Installation Planning Warranty is void if product is used in a manner not specified by the manufacturer. WARNING EDGE 4IN-6R-2LD Modules Operating System The EDGE 4IN-6R-2LD modules are only compatible with EDGE 2 Controllers. IMPORTANT: Make sure to order the correct EDGE Main Controller, once it is mounted to the wall, the product may not be returned.
Page 37 Chapter 2: Pre-Installation Planning About dimmable CFL/CCFL/LED bulbs The EDGE 4IN-6R-2LD modules can control the intensity of three types of energy-efficient lamps: 1. Compact Fluorescent Light (CFL) — This refers to compact fluorescent light or energy saving light. 2. Cold Cathode Fluorescent Lamp (CCFL) — This refers to light sources that are based on gas dis- charge principles, where the cathode of the lamp is not independently heated.
Page 38 Chapter 2: Pre-Installation Planning Method 2 The lamp is Energy Star and the power factor is not given and the number of watts is given by the light manufacturer for one lamp. Set PF = 0.75 when a lamp is higher than 5 watts in the formulas used in Method 1. Method 3 The current and the lamp power is given by the manufacturer for one lamp.
Page 39 Chapter 2: Pre-Installation Planning Light type Lamp Power Factor (PF) LED lamp or CFL/CCFL lamp 0.65 LED lamp or CFL/CCFL lamp Set PF = 0.5 in the Method 1 or Method 2; or use Method 5 with PF =0.5 Method 5 - Real Power Real Power (W) = PF ∗...
Page 40 NOTES 890–00687 EDGE 2...
Page 41: Chapter 3 Networking
Cellular) to reach WAN\LAN\WLAN Network. It is by this way that the EDGE system is controlled remotely locally or externally. WAN\LAN\WLAN Network AP\Cumberland does not provide Ethernet network components. Ensure to purchase network compo- nents according to the implemented technology: Wireless, Cabled, and Cellular. Installation Options: The LAN network can be setup to reach outside Ethernet cables or wirelessly using a Cellular based net- work to reach an Ethernet service provider (WAN).
Page 42 Only 60W max of DC load is allowed with 3 Slot Expansion Box on EDGE network). Refer to the wiring diagrams for cable distances. Refer to the EDGE 2 System Quick Start Guide #892–00096 to recognize the scheme pattern. 890–00687 EDGE 2...
Page 43: Ethernet Ports
Ethernet Ports Ethernet Port Protection AP\Cumberland recommends the use of another Ethernet protection step when the Ethernet cable has to go from one barn to another using the Ethernet switches. This recommendation is applicable regardless of the way it is used to link both barns.
Page 44: Wireless Network (Wifi)
Figure 3-1 Typical EDGE Network using Ethernet Cables Wireless Network (WiFi) WLAN Network AP/Cumberland does not provide Ethernet network components. Ensure to purchase network compo- nents according to the implemented Wireless technology. The physical EDGE System WiFi network consist of the following parts: •...
Page 45 Chapter 3: Networking • Redundant Main Controller using internally wireless Ethernet (WLAN) WiFi Network Design Having a strong WiFi signal throughout the barn is essential for a good working system. The WiFi signal has maximum coverage when a router or an access point is in a non-obstructed line of sight. Wooden walls and ceilings lower the WiFi signal strength.
Page 46: Cellular Network
Chapter 3: Networking Cellular Network For a Cellular based network, plug the celluar base into the external USB connector on the EDGE 2 Con- troller enclosure with a sealing rating of IP54 or Nema 12. NOTE: Only EDGE 2 Main Controller and EDGE 2 Controller Screenless can be used as an external cel- lular base.
Page 47: Chapter 4 Edge 2 Controller Installation
EDGE 2 Controller Installation Topics Covered in this Chapter ▪ EDGE 2 Main Controller and EDGE 2 Controller Screenless ▪ Preparing the Enclosures for Installation ▪ Mounting the Enclosures ▪ Connecting a Module to the Communication Network ▪ Connecting to Power Source ▪...
Page 48: Preparing The Enclosures For Installation
Chapter 4: EDGE 2 Controller Installation The EDGE 2 Remote Display needs an EDGE 2 Main Controller to control the EDGE system indirectly. An EDGE network without a Main Controller is impossible. NOTICE Preparing the Enclosures for Installation Preparing the equipment before mounting it to the wall ensures all parts are ready to be installed. Wires are separated into two groups: low voltage and high voltage.
Page 49 Chapter 4: EDGE 2 Controller Installation When using outdoor connections, mount the enclosure as close as possible to the entry point of the wiring NOTICE IMPORTANT: The enclosures must be mounted near an AC Power with a disconnecting switch IMPORTANT: Mount the system into a wooden or metal frame. Do not mount the system directly into the drywall NOTE: Install the enclosures (EDGE 2 Controller) with the hinges on the left hand side when facing the enclosure.
Page 50: Connecting A Module To The Communication Network
Chapter 4: EDGE 2 Controller Installation 3. Using a level, make sure the enclosure is straight, and then screw in the second screw at the lower right hand corner. 4. Screw in the last two screws. IMPORTANT: Leave minimum clearance of 22” W x 27” H to allow for proper circulation, cover removal, and protection against electrically conducted noise.
Page 51 At both ends of network, the End-of-Line must be activated. If the wiring can’t be done in a single chain, you might need to deactivate the end-of-line (EOL) resistor to improve com- munication. AP/Cumberland does not warranty the proper operation if the topology network is not daisy chain.
Page 52: Connecting To Power Source
Chapter 4: EDGE 2 Controller Installation The terminal ground (GND from 24VDC, Green color on diagram block) must be connected between the EDGE 2 Controller and the EDGE Expansion Box NOTICE When there is only communication between Boxes, the terminal ground (GND NOTICE from 24VDC, Green color on diagram block) must be connected.
Page 53 The OFF or STOP and ON position must be clearly identified on the sectioning device. AP/Cumberland recommends using a DPST disconnecting switch in series with a breaker. If using a SPST disconnecting switch, connect the SPST disconnecting switch to cut the hot line with a neutral circuit.
Page 54 Chapter 4: EDGE 2 Controller Installation A minimum temperature insulation cable rating of 90°C (194°F) is required. WARNING Figure 4-3 EDGE PSU 24V 36W Diagram Figure 4-4 SPST Disconnect Switch Wiring for PSU 24V 36W 890–00687 EDGE 2...
Page 55: Dc Output Connections
Chapter 4: EDGE 2 Controller Installation Figure 4-5 DPST Disconnect Switch Wiring for PSU 24V 36W DC Output Connections What you should know The terminal used for 24Vdc output is named OUT. The OUT (+) is the positive output. The OUT (-) is the output return.
Page 56 Chapter 4: EDGE 2 Controller Installation A minimum temperature insulation cable rating of 90°C (194°F) is required. WARNING EDGE network cables have to use class 1 load type. AP/Cumberland recommend NOTICE using TC-ER cable type. Refer to the Wiring Methods and Materials section from the National Electric Code to use the correct wire for the installation.
Page 57: Connecting The Alarm Relay
Chapter 4: EDGE 2 Controller Installation Figure 4-6 Power Connections for EDGE 2 Controllers Connecting the Alarm Relay 1. Locate the ALARM terminals on the EDGE 2 Controller. 2. Connect the voltage source wire needed to switch in the terminal block named ALARM – COM. 3.
Page 58 NOTES 890–00687 EDGE 2...
Page 59: Chapter 5 Expansion Box And Virtual Expansion Box Installation
Expansion Box and Virtual Expansion Box Installation Topics Covered in this Chapter ▪ Preparing the Enclosures for Installation ▪ Mounting the Enclosures ▪ Installing the Plug-In Modules ▪ Installing the Plug-In Relays ▪ Installing the EDGE Variable Output ▪ Installing the EDGE 4IN-2V-8DO Before Wiring ▪...
Page 60 Chapter 5: Expansion Box and Virtual Expansion Box Installation IMPORTANT: High voltage wires must not passed through plastic support aeration holes. Figure 5-1 EDGE 3-Slot Expansion Box Figure 5-2 EDGE 6-Slot Expansion Box 1. Close the enclosures and lock the latch. 2.
Page 61: Mounting The Enclosures
NOTE: Install the enclosures (3-Slot Expansion Box, 6-Slot Expansion Box) with the hinges on the left hand side when facing the enclosure. NOTE: AP/Cumberland recommends this kind of screw: Flange Head Lag Screw for Wood, Hot-Dipped Galvanized Steel, 1/4" Diameter, 2" Long.
Page 62 Chapter 5: Expansion Box and Virtual Expansion Box Installation Installation must only be performed by qualified service personnel. WARNING Wear appropriate grounding devices such as an anti-static wristband to service the system. WARNING Lock the enclosure once the wiring is completed or when servicing. Use the included nut and bolt or a padlock (not included) to lock the enclosure.
Page 63: Installing The Plug-In Relays
Chapter 5: Expansion Box and Virtual Expansion Box Installation 6. Make all the necessary wiring connections to the plug-in module. 7. Reconnect the main supply voltage, and ensure all equipment turns on correctly. For the terminal blocks connected on the power relays, use a tightening torque from 0.7N*m (6.2lbf*in) to 0.8N*m (7lbf*in) to fasten a wire gage from 10AWG to NOTICE 14AWG.
Page 64: Installing The Edge Variable Output
Chapter 5: Expansion Box and Virtual Expansion Box Installation 5. When the plug-in relay is correctly aligned, apply pressure on the middle part of the plug-in relay until it is locked in place. 6. Wire the new plug-in relay. 7. Reconnect the main supply voltage, and ensure all equipment turns on correctly. For the terminal blocks connected on the power relays, use a tightening torque NOTICE from 0.7N*m (6.2lbf*in) to 0.8N*m (7lbf*in) to fasten a wire gage from 10AWG to...
Page 65 Chapter 5: Expansion Box and Virtual Expansion Box Installation Take care to not remove the thermal pad when the “Post it” are removing from the thermal pad. WARNING Take care to not damage the thermal pad when the “Post it” are removing from the thermal pad.
Page 66 Chapter 5: Expansion Box and Virtual Expansion Box Installation Take care to not damage the thermal pad when placing the EDGE Variable Output on the heatsink. WARNING Take care to not contaminate the thermal pad when positioning the EDGE Variable Output on the heatsink. WARNING 4.
Page 67: Installing The Edge 4In-2V-8Do Before Wiring
Chapter 5: Expansion Box and Virtual Expansion Box Installation Installing the EDGE 4IN-2V-8DO Before Wiring When an EDGE 4IN-2V-8DO is ordered, the EDGE 4IN-2V-8DO is already installed on the Din Rail plastic support. The EDGE 4IN-2V-8DO must be installed in a cabinet with Din Rails. The cabinet is not provided when an EDGE 4IN-2V-8DO is ordered.
Page 68: Dc Network And Power Supply Redundancy
Chapter 5: Expansion Box and Virtual Expansion Box Installation NOTE: We recommend using one box ID per electrical panel where modules are installed. Each module will have the same box ID, but a different slot number. NOTE: A maximum of 8 modules can have the same box ID. For example, if the electrical panel contains 18 modules, 3 box IDs must be used: one for modules 1 to 8, a second one for modules 9 to 16, and a last one for module 17 and 18.
Page 69: Connecting A Module To The Communication Network
Screenless Controller, and controller groups must be divided by subgroups of two WARNING Expansion Boxes. EDGE network cables have to use class 1 load type. AP/Cumberland recommends using TC-ER cable type. NOTICE Refer to the Wiring Methods and Materials section from the National Electric Code to use the correct wire for the installation.
Page 70 At both ends of network, the End-of-Line must be activated. If the wiring can’t be done in a single chain, you might need to deactivate the end-of-line (EOL) resistor to improve com- munication. AP/Cumberland does not warranty the proper operation if the topology network is not daisy chain.
Page 71: Connecting An Analog Input
Chapter 5: Expansion Box and Virtual Expansion Box Installation The terminal ground (GND from 24VDC, Green color on diagram block) must be connected between the EDGE 2 Controller and the EDGE Expansion Box NOTICE When there is only communication between Boxes, the terminal ground (GND NOTICE from 24VDC, Green color on diagram block) must be connected.
Page 72: Connecting A Variable 0-10 Vdc Output
Chapter 5: Expansion Box and Virtual Expansion Box Installation examples of sensors that you can use with the system: temperature probes, humidity probes, static pres- sure probes, water meters, dry contacts. What You Should Know The most common sensors used in a livestock room/barn (like temperature sensor, relative humidity sensor and static pressure transmitter) are already part of the built-in equipment list.
Page 73: Grounding
Chapter 5: Expansion Box and Virtual Expansion Box Installation IMPORTANT: Make sure each 0-10 VDC output is connected to the proper GND. False alarms can result if the wires are not properly connected. Installation must only be performed by qualified service personnel. WARNING Disconnect supply before servicing.
Page 74: Connecting Relay Outputs
The Off or Stop and On position must be clearly identified on the sectioning device. AP/Cumberland recommends using a DPST disconnecting switch in series with a breaker. In the case of the use of a SPST disconnecting switch, connect the SPST disconnecting switch to cut the hot line with a neutral circuit case.
Page 75: Connecting An Edge Variable Output Module (Ssr)
90°C is used for the wires. AP/Cumberland recommends the use of fuse in series at the output of a relay with a circuit breaker. For the terminal blocks connected on the power relays, use a tightening torque NOTICE from 0.7N*m (6.2lbf*in) to 0.8N*m (7lbf*in) to fasten a wire gage from 10AWG...
Page 76: Connecting An Ac Power Source For Light Dimmer Output
Chapter 5: Expansion Box and Virtual Expansion Box Installation We recommend using a DPST disconnecting switch in series with a breaker. In the case of the use of a SPST disconnecting switch, connect SPST disconnecting switch to cut the Hot line with a Neutral circuit case.
Page 77 Chapter 5: Expansion Box and Virtual Expansion Box Installation If the disconnect switch or the circuit breaker is used as a sectioning device, the device must be correctly identified with which function of the controller opens the WARNING circuit. The Off or Stop and On position must be clearly identified on the sectioning device.
Page 78 LD2 AC IN LD2 OUT L2/N L2/N OUT L2/N L2/N OUT NOTE: EDGE 4IN-6R-2LD can only be used with an EDGE 2 system. N/L2 N/L2 N/L2 N/L2 Only two EDGE 4IN-6R-2LD can be used per Expansion Box. In a 6 Slot Expansion Box, the cards have to be installed into slot 1 and slot 6.
Page 79: Connecting Light Dimmer Output
Chapter 5: Expansion Box and Virtual Expansion Box Installation Figure 5-4 Disconnect switch wiring Connecting Light Dimmer Output Before You Begin Determine how many lamps that can be installed according to the power factor (PF) for each Zone and make sure the wiring supports the required power according to your calculation. Refer to Power Output Formulas, page 79 and follow these steps:...
Page 80 Chapter 5: Expansion Box and Virtual Expansion Box Installation Disconnect supply before servicing. DANGER Installation must only be performed by qualified service personnel. WARNING For the big terminal blocks used for AC inputs, use a tightening torque from 0.7N*m NOTICE (6.2lbf*in) to 0.8N*m (7lbf*in) to fasten a wire gage from 10AWG (diameter of 2.58mm or cross sectional area of 5.26mm2) to 14AWG (diameter of 1.62mm or cross sectional area of 2.08mm2).
Page 81: Lamp Fixture Grounding
LD2 AC IN LD2 OUT L2/N L2/N OUT L2/N L2/N OUT NOTE: EDGE 4IN-6R-2LD can only be used with an EDGE 2 system. N/L2 N/L2 N/L2 N/L2 Only two EDGE 4IN-6R-2LD can be used per Expansion Box. In a 6 Slot Expansion Box, the cards have to be installed into slot 1 and slot 6.
Page 82: Connecting Discrete Outputs
From the Power source, follow the wiring diagram to connect the main voltage supply to the EDGE 4IN-2V-8DO. AP/Cumberland recommends using a DPST disconnecting switch in series with a breaker. In the case of the use of a SPST disconnecting switch, connect SPST disconnecting switch to cut the hot line with a neutral circuit case.
Page 83: Connecting The Current Sensors Of Discrete Outputs
From the Power source, follow the wiring diagram to connect the main voltage supply to the EDGE 4IN-2V-8DO. AP/Cumberland recommends using a DPST disconnecting switch in series with a breaker. In the case of the use of a SPST disconnecting switch, connect SPST disconnecting switch to cut the Hot line with a Neutral circuit case.
Page 84 Chapter 5: Expansion Box and Virtual Expansion Box Installation Installation must only be performed by qualified service personnel. WARNING If the disconnecting switch or the circuit breaker is used as a sectioning device, the device must be correctly identified with which function of the controller opens the WARNING circuit.
Page 85: Chapter 6 Installation Order Overview
• Installation of Ethernet cabling Module Detection After turning ON the EDGE 2 system, the EDGE will detect the modules on EDGE Network. NOTE: The EDGE has to upgrade the modules firmware during module detection. This operation can take a few minutes. DO NOT CONFIGURE CONTROLLERS UNTIL THE FIRMWARE UPDATES ARE COMPLETE.
Page 86: Edge 2 System Operation Summary
• Controller Name • Equipment configuration • Room Setup EDGE 2 System Operation Summary Normal Mode EDGE system automatically controls the equipment according to their settings and the input feedback or according to a scenario in the automatic mode. The EDGE system can also control the equipment in manual mode.
Page 87: Chapter 7 Getting Started
Getting started Topics Covered in this Chapter ▪ Main Page Navigation ▪ EDGE 2 Menu Structure ▪ Room Screen Navigation Overview ▪ Room shortcuts and operation room ▪ Moving Tiles ▪ Color coding ▪ Copying, pasting, or duplicating information ▪ List of icons 890–00687 EDGE 2...
Page 88: Main Page Navigation
Chapter 7: Getting started Main Page Navigation To see a room, you have to add a room in the menu System -> Site Configuration. Figure 7-1 Main Page Screen System Drop down menu Press to access All Rooms Press to access EDGE Notifications Board Press to access Network Press to access Events (Alarms and Troubles) Press to access Units configuration...
Page 89: Edge 2 Menu Structure
Chapter 7: Getting started EDGE 2 Menu Structure Simplified outline of the EDGE 2 menu structure. Figure 7-2 Simplified Menu Structure 890–00687 EDGE 2...
Page 90: Room Screen Navigation Overview
Chapter 7: Getting started Room Screen Navigation Overview You have to be in a room to add or set up equipment and see room operations. Figure 7-3 Room Screen Navigation Opens the change room selection screen Displays the previous room (not shown when only one room is configured) Name of the room the user is actually looking at Displays the next room (not shown when only one room is configured) Room summary...
Page 91: Room Shortcuts And Operation Room
Chapter 7: Getting started Room shortcuts and operation room After pressing Configuration when in a Room screen, the Room Operation button will appear and also the shortcuts of the previous Room Tiles. Figure 7-4 Room shortcuts Access to Room Operation (active when in the equipment page) Access to previous Room Tiles 890–00687 EDGE 2...
Page 92: Moving Tiles
Chapter 7: Getting started Moving Tiles EDGE allows you to move the Tiles to order them according to your needs. Figure 7-5 Moving Tiles NOTE: This feature is also available in the virtual mode. Color coding A logical color scheme is used as a visual cue to draw your attention to a particular area or parameter on the user interface.
Page 93: List Of Icons
Chapter 7: Getting started A new tile is now displayed next to the copied tile. 2. Enter the name, and remaining information in the blank cells. List of icons Main screen: Room screen Temperature icon Access to operations room Inside temperature System configuration Pit fan icon Equipment configuration...
Page 94 Chapter 7: Getting started Feed augers Wind speed and wind direc- tion sensor Static pressure sensor Automatic or manual Feed actuators Activated or deactivated Relative humidity sensor Animal age Water valves Cooling icon Lights De-icing Selected Clean mode Not selected Curve calendar Bypassed or manual mode Calibration...
Page 95: Software Version And Configuration File Management
Software version and configura- tion file management Topics Covered in this Chapter ▪ Updating the software ▪ Managing system configurations ▪ Deleting a module ▪ Deleting an Expansion Box Updating the software Having the latest software and firmware in your controller allows you to have access to all new features and improvements.
Page 96: Managing System Configurations
Chapter 8: Software version and configuration file management Icon Meaning It is working and no update available The components with an icon beside them are out of date Not detected 4. Press on the file you would like to use. You can only choose one file at a time from either the USB stick or a previously uploaded file.
Page 97: Deleting An Expansion Box
Chapter 8: Software version and configuration file management A message prompting you to confirm you want to delete the module is displayed. The equipment connected to the module will be unusable. 5. Press on Ok to delete the module. Restriction A module can’t be deleted if the room/barn is in production mode.
Page 98 NOTES 890–00687 EDGE 2...
Page 99: Chapter 9 Initial Configuration
Initial configuration Topics Covered in this Chapter ▪ Selecting a preferred language ▪ Entering the site name ▪ Setting the date, time, and units parameters ▪ Entering local area network settings ▪ Naming the detected Expansion Boxes and plug-in modules ▪...
Page 100: Entering Local Area Network Settings
You can get a gsiedge.com account username, password and account ID number free of charge from your AP/Cumberland representative. You will use the web account ID number to assign your device to your gsiedge.com account. The network can be either cabled or wireless.
Page 101 Chapter 9: Initial configuration Orange — At least one module, sub module or the enclosure itself is experiencing a trouble condition. 2. Press on the icon to force the discovery of expansion boxes and modules that have not been detected on the EDGE network. This function can be used after having fixed a problem that had made modules invisible to the controller on one of the two EDGE networks.
Page 102: Viewing Module Statistics
Chapter 9: Initial configuration Viewing module statistics Once all the modules have been detected by the EDGE, the information about the modules can be seen by pressing the Network icon , and then selecting Module Detection and then selecting the desired module.
Page 103: Chapter 10 Troubleshooting
Troubleshooting EDGE 2 Controller Figure 10-1 PCB500 in the EDGE 2 Controller enclosure Automation network activity LEDs and Safety network activity LEDs Automation network fuse Safety network fuse The controller doesn’t Verify if the controller is powered on communicate Verify if there are activities on the bus communication by looking at the activities LEDs on PCB-500 Verify if F4 and F1 on PCB500 are not blown.
Page 104 Chapter 10: Troubleshooting If the problem persists, contact AP/Cumberland or GSI Electronics The controller doesn’t Verify if the following LEDs are activated on PCB-495: LED 12V, LED 5V, LED Power on 3.3V1, LED 3.3V2 Verify if the fuses F4 and / or F1 are burned, if that is the case, find the issue and correct it then replace the burned fuse.
Page 105 Verify if wires are connected at the right terminals Measure the voltage between the terminal 24V and GND. The voltage must be at least 24V If the problem persists, contact AP/Cumberland or GSI Electronics The 3 or 6-Slot Expansion Verify if the Expansion Box is powered up...
Page 106 Verify if the fuses F1 –F4 are not burned, it is the case. Find the issue and correct it and replace the burned fuse. If the problem persists, contact AP/Cumberland or GSI Electronics The 3 or 6-Slot Expansion Verify if the fuses F1 –F4 are not burned, it is the case. Find the issue and correct it Box doesn’t Power on...
Page 107 Verify if a voltage supply reaches the terminal RELAY - COM Verify if there is no an alarm If the problem persists, contact AP/Cumberland or GSI Electronics The variable output Verify if the variable output module (SSR) wiring complies with the wiring diagram...
Page 108 Verify if the sensor is connected at the right terminal Verify if the sensor configuration is set correctly on the EDGE 2 Controller If the problem persists, contact your AP/Cumberland or GSI Electronics Issues with the 24V Verify if the sensor wiring is conformed to the wiring diagrams...
Page 109 Verify if the control cable is connected at the right terminals in the finished product If the problem persists, contact AP/Cumberland or GSI Electronics The EDGE Variable Output Verify if the EDGE Variable Output wiring is conformed to the wiring diagram...
Page 110 Chapter 10: Troubleshooting If the problem persists, contact AP/Cumberland or GSI Electronics The EDGE Variable Output Verify if the EDGE Variable Output configuration is set correctly on the control unit does not vary correctly Verify if the Variable Output gives the nominal voltage of the voltage source with...
Page 111 Chapter 10: Troubleshooting Problem Solution Make sure that the lamp is a dimmable model (LED, CFL, CCFL). Verify the AC voltage level at the Light Dimmer inputs is in the opera- tion range of the lights. If the problem persists, contact your dealer or GSI Electronics. Follow the same steps of the previous issue “The Light Dimmer AC Output does not dim properly”.
Page 112 NOTES 890–00687 EDGE 2...
Page 113: Appendix A Led Meanings
LED meanings EDGE 2 Controllers LED Identification Description LED active when the 12VDC is present LED active when the 5VDC is present 1.5V LED active when the 1.5VDC system is present 3.3V1 LED active when the 3.3VDC bus 1 is present 3.3V2 LED active when the 3.3VDC bus 2 is present SATA ACT.
Page 114 Appendix A: LED meanings ON (close to the relays) LED active when the relay is activated DBG1 DEBUG LEDs (and BOARD_ID) DBG2 EDGE 4IN-2V-8DO LED identification Description AUTOMATION-RX LED blinks off during activity AUTOMATION-TX LED blinks off during activity SAFETY-RX LED blinks off during activity SAFETY-TX LED blinks off during activity...
Page 115 Appendix A: LED meanings Description or function Leds identification on PCB-523 DBG1 Debug Leds (and BOARD_ID) DBG2 890–00687 EDGE 2...
Page 116 NOTES 890–00687 EDGE 2...
Page 117: Appendix B List Of Terminals
List of Terminals EDGE 2 Controllers Terminal name Description Alarm - COM Alarm relay input, the COM (Common) is the voltage source needed to switch Alarm - NO (Normally Alarm relay output, When a relay contact is normally open (NO), there is an opened con- Opened) tact when the relay is not energized Alarm - NC (Normally...
Page 118 Appendix B: List of Terminals AUTOMATION - Communication bus 1 - power supply return SAFETY - 24V Communication bus 2 - power supply 24VDC SAFETY - A Communication bus 2 - Signal A of RS485 communication SAFETY - B Communication bus 2 - Signal B of RS485 communication SAFETY - GND Communication bus 2 - power supply return CS(x)
Page 119 Appendix B: List of Terminals AUTO - A Communication bus 1 - Signal A of RS485 communication AUTO - B Communication bus 1 - Signal B of RS485 communication AUTO- GND Communication bus 1 - Power supply return SAFE- 24V Communication bus 2 - power supply 24Vdc SAFE - A Communication bus 2 - Signal A of RS485 communication...
Page 120 NOTES 890–00687 EDGE 2...
Page 121: Appendix C Technical Specifications
Technical Specifications Table C-1 EDGE 2 Main controller — Safety Ratings Inputs: DC Supply Input : 24Vdc ±10%, 18W Outputs: Alarm relay output: 24V , 1.5A DC/AC Operating Temperature 0 to 40°C (32 to 104°F) Storage Temperature -20 to 50°C (-4 to 122°F) Environment Type Indoor use only Pollution Degree...
Page 122 Appendix C: Technical Specifications Table C-3 EDGE 2 Remote Display — Safety Ratings Inputs: DC Supply Input : 24Vdc ±10%, 18W Operating Temperature 0 to 40°C (32 to 104°F) Storage Temperature -20 to 50°C (-4 to 122°F) Environment Type Indoor use only Pollution Degree Installation Category Altitude...
Page 123 Appendix C: Technical Specifications Table C-5 EDGE 2 Screenless Controller — Safety Ratings Inputs: DC Supply Input : 24Vdc ±10%, 11W Outputs: Alarm relay output: 24V , 1.5A DC/AC Operating Temperature 0 to 40°C (32 to 104°F) Storage Temperature -20 to 50°C (-4 to 122°F) Environment Type Indoor use only Pollution Degree...
Page 124 Appendix C: Technical Specifications Clearance 300mm (12 inches) Bottom 300mm (12 inches) Hinge Side 250mm (10 inches) Latch Side 180mm (7 inches) EDGE 6-Slot Expansion Box - dimensions and weight Enclosure Height 660 mm (26 inches) dimensions Width 635 mm (25 inches) Depth 279 mm (11 inches) Weight...
Page 125 Appendix C: Technical Specifications Table C-8 6-Slot Expansion Box and 3-Slot Expansion Box ratings (cont'd.) Minimum load of 0.2A / 25W NO (normally opened) contact – Ballast loads 120/208/240Vac, 6A MAX Minimum load of 0.2A 5A MAX Minimum load of 0.2A (Nb of Units = Max current rating divided by the max cur- Cycle Timer Mode rent of the fan multiplied by its service factor)
Page 126 Appendix C: Technical Specifications Table C-8 6-Slot Expansion Box and 3-Slot Expansion Box ratings (cont'd.) LED and CCFL loads 120/208/240Vac; 50/60Hz, 750W/ 920VA MAX Minimum load of 0.2A / 25W Ballast load 120Vac; 50/60Hz; 1200W; 10 MAX 208 Vac; 50/60Hz; 1040W; 5A MAX 240Vac;...
Page 127 Appendix C: Technical Specifications Allowable loss of performance in a noisy environment: Accuracy of ±80mV from initial reading with a voltage source of 1% precision used for test- ing purpose. Analog 4-20mA Sensor must be able to drive a 120 Ohms load Maximum rating: 20.8mA, 2.5V Accuracy of ±0.2mA in a normal operation.
Page 128 Appendix C: Technical Specifications Environment Type Indoor use only Pollution Degree Installation Category Altitude 2000 Meters Max. (6561 Ft. Max) Operating Relative 0 to 10°C (32 to 50°F) Non condensing Humidity 10 to 30°C (50 to 86°F) 95 % (± 3 %) Non condensing (maximum) 30 to 40°C (86 to 104°F) 95 % (±...
Page 129: Appendix D Low Voltage Cable Specifications
Low Voltage Cable Specifications Communication Bus (Automation/Safety) Table D-1 Communication cables (Signal A and signal B) Value Cable Parameter Typical Minimum Maxium Cable type Twisted and shielded Minimum gauge 18AWG (diameter of 1.02mm or cross sectional area of 0.82mm²) Maximum cable length (including cable extensions) 1200 meters (4000 feet) Certification and type CSA,CMG FT4 type, 18AWG, 600V, 194˚F 90˚C)
Page 130 Class 1 load circuit use. AP/Cumberland can provide sourced color-coded communication wire to install EDGE controls. The wire will be available in both 16 and 18 gauge to accommodate the specified distance between controls (as shown above).
Page 131 Appendix D: Low Voltage Cable Specifications and red-jacketed wire is to be used for the safety circuit. Each of the communication wires is comprised of two or four unique colored wires to further reduce installation errors. Power Cable Requirements Distance Minimum Wire AWG 500' (150 m) 18 AWG...
Page 132 Appendix D: Low Voltage Cable Specifications Description Kgs. Item Lbs. WR-16-1TS-S Wire, 16 AWG 1 Twisted Shielded Pair, Comm & Power, 600V, 1000'/ 20.00 Spool WR-16-2TS-S Wire, 16 AWG 2 Twisted Shielded PairS, Comm & Power, 600V, 1000'/ 38.18 Spool WR-16RED-1TS-S Wire, 16 AWG 1 Twisted Shielded Pair, Comm &...
Page 133: Appendix E Temperature Probe Installation
Temperature Probe Installation EDGE 2 Controllers can use two models of temperature probes: • Legacy temperature probe (LEGACY TEMP PROBE) • EDGE LED temperature probe (EDGE LED TEMP PROBE) What you need to know: • Identify each probe on the floor with its terminal input number. •...
Page 134 NOTES 890–00687 EDGE 2...
Page 135: Appendix F Extending A Cable
Extending a cable • Best practice: using a junction box 890–00687 EDGE 2...
Page 136 Appendix F: Extending a cable • Using of heat shrink tubing 890–00687 EDGE 2...
Page 137: Limited Warranty - Protein Products
Fans Performer Series Direct Drive Fan Motor 3 Years ® end user Flex-Flo/Pan Feeding System Motors and Cumberland 2 Years ® ® 3 to 5 years - end user pays 25% 24 Months from date All Protein controls manufactured by GSI...
Page 138 This equipment shall be installed in accordance with the current installation codes and applicable regulations which should be carefully followed in all cases. Authorities having jurisdiction should be consulted before installations are made. 1004 E. Illinois St. Assumption, IL 62510-0020 Phone: 1-217-226-4421 Fax: 1-217-226-4420 www.automatedproduction.com / www.cumberlandpoultry.com...

This manual is also suitable for:

074-11854 074-11855 074-11865 074-11795 074- 11796 074-11797 ... Show all

Cumberland EDGE 2 System Installation Manual

Chapter 1 Introduction

Chapter 2 Pre-Installation Planning

Chapter 3 Networking

Chapter 4 EDGE 2 Controller Installation

Chapter 5 Expansion Box and Virtual Expansion Box Installation

Chapter 6 Installation Order Overview

Chapter 7 Getting Started

Chapter 9 Initial Configuration

Chapter 10 Troubleshooting

Appendix A LED Meanings

Appendix B List of Terminals

Appendix C Technical Specifications

Appendix D Low Voltage Cable Specifications

Appendix E Temperature Probe Installation

Appendix F Extending a Cable

Quick Links

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cumberland EDGE 2 System

Summary of Contents for Cumberland EDGE 2 System

This manual is also suitable for:

Table of Contents
