Cumberland EDGE 2 Quick Start Manual

Installing EDGE 2 WiFi Module-
Quick Start Guide
NOTE: This guide does not provide detailed
installation, safety or operational instructions.
See the EDGE 2 System Manuals for complete
information. Please scan the QR Code to access the
complete manuals or visit the website:
Cumberland: http://www.cumberlandpoultry.com
AP: http://www.automatedproduction.com
The EDGE 2 is manufactured by GSI Electronics Inc.,
Canada.

1 - NOTICES

Only properly trained service personnel may perform
installation and service procedures. (In other words:
electricians, service personnel employed by or active in
an organization, business, or service).
Electrostatic discharge (ESD) can damage equipment
and impair electrical circuitry. ESD damage occurs
when electronic components are improperly handled
and can result in complete or intermittent failures.
Warranty is void if the EDGE 2 System is used in a
manner not specified by the manufacturer.

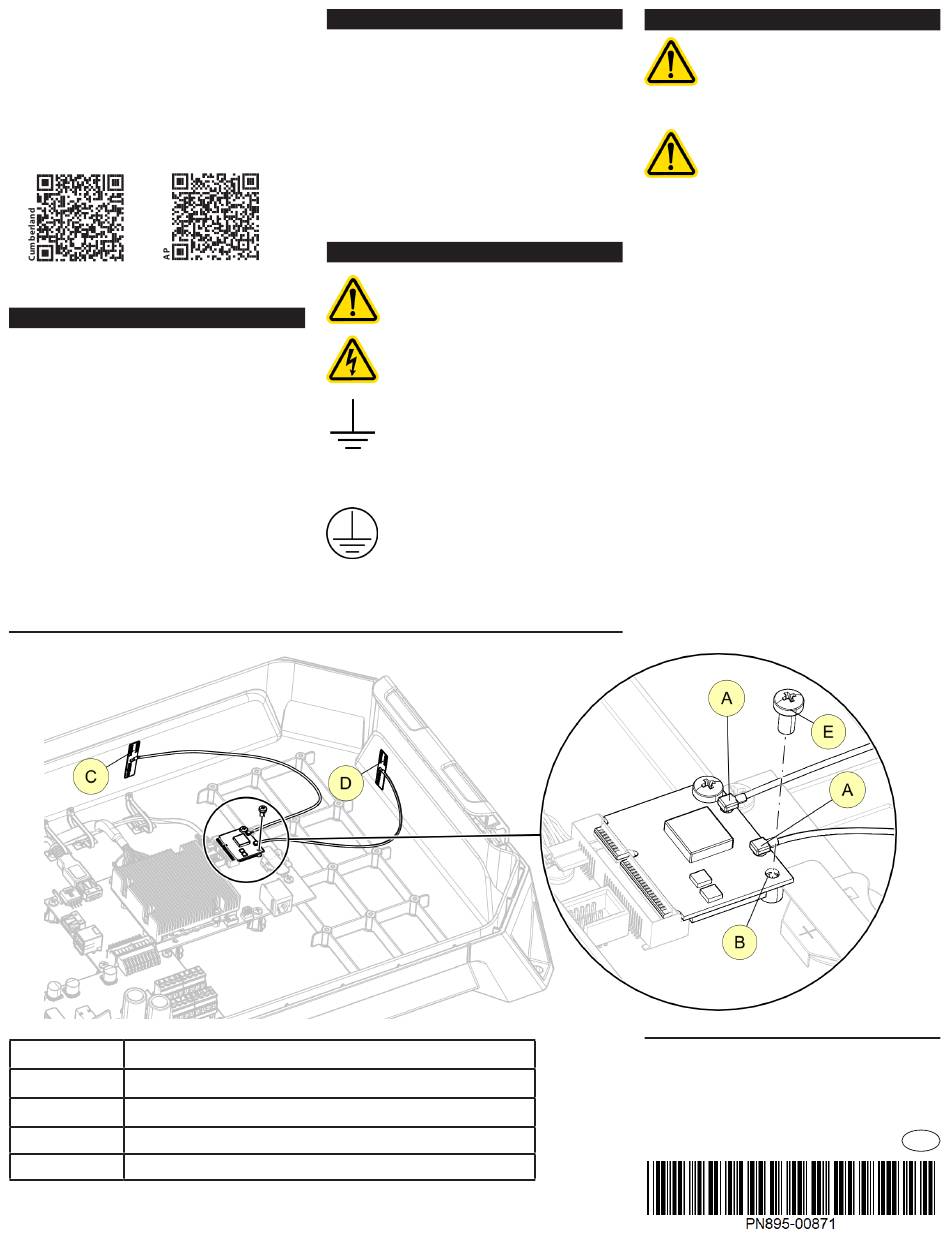

FIGURE 1: Installing Anntenna
Item Description
A Antenna cable to board
B Hole alignment
C Antenna cable to top of bottom enclosure
D Antenna cable to side of bottom enclosure

2 - REFERENCE DOCUMENTS

Details on installation and initial configuration of the
EDGE 2 System can be found in the EDGE 2 System
Installation Manual #890-00687.
Details on the operation of the EDGE 2 System can be
found in the EDGE 2 System User's Manual #890-00686.
Details on wiring diagrams of the EDGE 2 System can
be found in the EDGE 2 System wirings diagrams:
#891-00596: EDGE 2 - Non redundancy System
#891-00597: EDGE 2 - Redundancy System
#891-00598: EDGE 2 - General information

3 - SYMBOLS

WARNING: Read the following text
carefully; it contains important information
which, if ignored, may cause the controller
to operate improperly.
High Voltage. Hazard of electrical shock.
Functional Ground Terminal. Primarily
used for functional earth terminals which
are generally associated with test and
measurement circuits. These terminals
are not for safety earthing purposes but
provide an earth reference point.
Protective Earth Ground Terminal.
Primarily used for protective earth
terminals. These terminals connect to
conductive parts of a device for the
purpose of safety and is intended to
be connected to an external system for
protective grounding.

4 - INSTALLATION

Electrostatic discharge (ESD) can damage
equipment and impair electrical circuitry.
ESD damage occurs when electronic
components are improperly handled and can result in
complete or intermittent failures.
WiFi antenna cables and WiFi antenna
connectors are fragile, be careful when
handling during installation.
The EDGE 2 WiFi Module kit includes the WiFi card, WiFi
Antennas, and hardware.
IMPORTANT: Make sure all redundant and backup
systems are operating properly to provide minimum
ventilation during the system upgrade.
Refer to FIGURE 1.
1. Unlock and open EDGE 2 Controller cover.
2. Disconnect the power\RS-485 cable to the EDGE 2
Controller.
3. If it is a replacement, unscrew and remove the
WiFi card by pulling horizontally and unstick and
remove the WiFi antennas from the bottom plastic
enclosure.
4. Install the new WiFi card by sliding it into the WiFi
card connector. Push the WiFi card until the screw
holes (B) align with the holes in the PCB-495.
5. Screw the two screws (E) provided in the kit to the
WiFi card and PCB-495.
6. Install the WiFi antenna cables to the WiFi card
connectors (A).
7. Remove the release paper and stick the WiFi
antennas to the enclosure sides, one to the top
side (C) and one to the right side (D).
8. Connect the power\RS-485 cable to the EDGE 2
Main Controller.
9. Close and lock the EDGE 2 Main Controller cover.
GSI Electronics Inc.
5200 Armand Frappier Saint-Hubert, Qc
Canada J3Z 1G5
Phone: 1-877-926-2777
E-mail: mtl_techsupport@agcocorp.com
QSG 892-00100 REV00
TP-758
EN
REV 00
