5.2.6

Parallel Setting

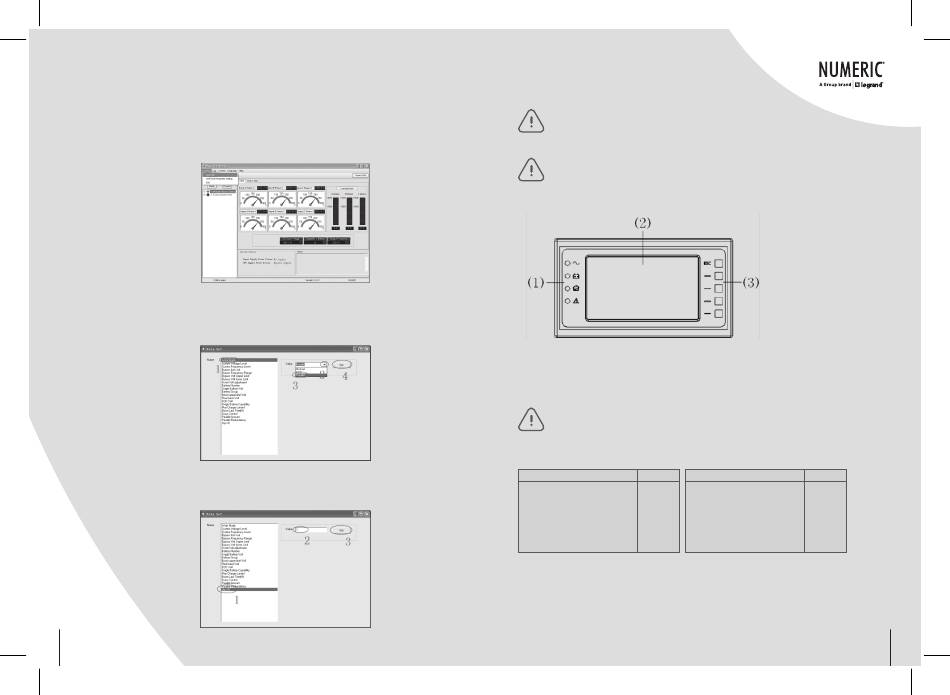

• Connect the UPS with computer. Power on the UPS.
• Open Muser4000 software, after connecting with the UPS successfully, click 'SYSTEM'->'USER SET'
• Click 'SET' at 'USER SET' window
• At the window of 'DATA SET', click 'WORK MODE', choose 'PARALLEL' for the value, then click 'SET' as
shown in below picture. If the UPS sounds a 'beep', that means the setting is correct.
• At the window of 'DATA SET', click 'UPS ID', write a value for the parallel UPS ID at the right side, such as '1',
then click 'SET' as shown in below picture. If the UPS sounds a 'beep', that means the setting is correct.
24
CAUTION
After changing the parallel system ID, the connection between Muser4000 and
equipment might be interrupted. If it occurs, please reconnect in accordance
with the instruction described before.
CAUTION
Parallel cable cannot be connected when setting the parallel parameters. After setting the UPS
needed to be paralleled, power off all the UPS. Connect all the UPS according to 'parallel cable
installation', and then power on the UPS.

5.3 The LCD Display

5.3.1 LCD Display
Introduction
CAUTION
After changing the parallel system ID, the connection between Muser4000 and equipment might be
interrupted. If it occurs, please reconnect in accordance with the instruction described before.
The display provides more functions than those described in this manual
NOR 08:08:08 13-01 NOR
40kVA UPS SELFTEST
LCD SELFTESTING ......
PLEASE WAIT ......
LCD SELF TEST
1. LED (from top to bottom:'mains
output', 'Bypass output', 'battery
output', 'alarm')
2. LCD display
3. Function button
08:08:08 13-01
UPS SELF TEST
25
