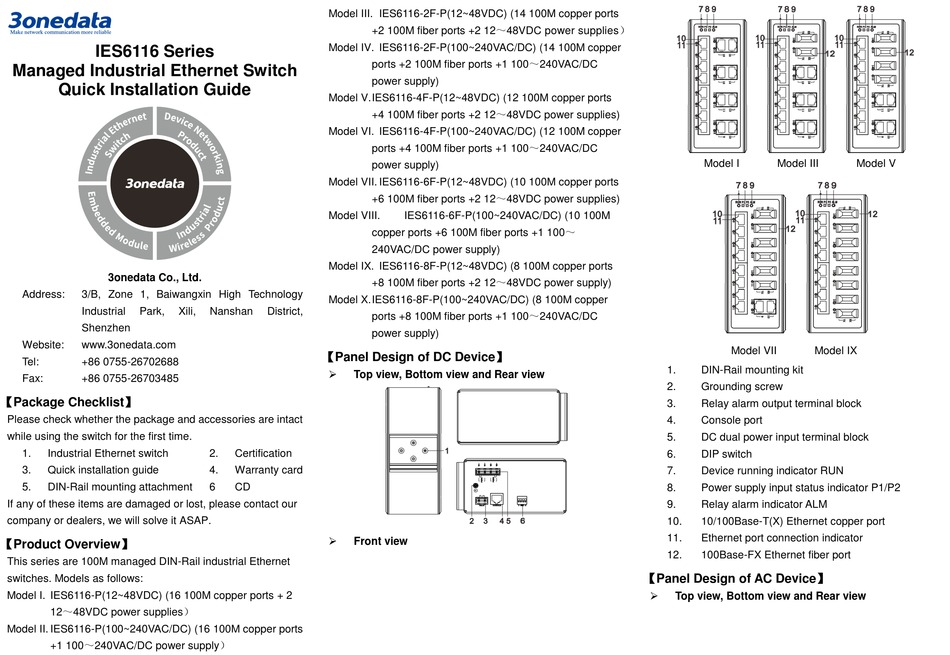

3onedata IES6116 Series Quick Installation Manual

IES6116 Series
Managed Industrial Ethernet Switch
Quick Installation Guide
3onedata Co., Ltd.
Address: 3/B, Zone 1, Baiwangxin High Technology
Industrial Park, Xili,
Shenzhen
Website: www.3onedata.com
Tel: +86 0755-26702688
Fax: +86 0755-26703485

【Package Checklist】

Please check whether the package and accessories are intact
while using the switch for the first time.
1. Industrial Ethernet switch
3. Quick installation guide
5. Din-Rail Mounting attachment
If any of these items are damaged or lost, please contact our
company or dealers, we will solve it ASAP.

【Product Overview】

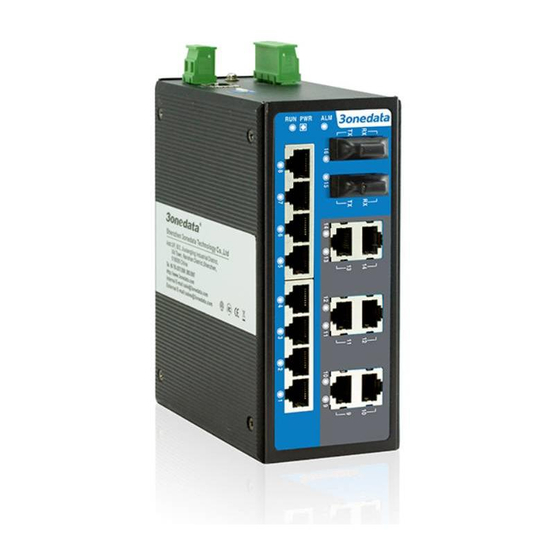

This series are 100M managed DIN-Rail industrial Ethernet
switches. Models as follows:
Model I. IES6116-P(12~48VDC) (16 100M copper ports + 2
12～48VDC power supplies）
Model II. IES6116-P(100~240VAC/DC) (16 100M copper ports
+1 100～240VAC/DC power supply）
Model III. IES6116-2F-P(12~48VDC) (14 100M copper ports
+2 100M fiber ports +2 12～48VDC power supplies）
Model IV. IES6116-2F-P(100~240VAC/DC) (14 100M copper
ports +2 100M fiber ports +1 100～240VAC/DC
power supply)
Model V. IES6116-4F-P(12~48VDC) (12 100M copper ports
+4 100M fiber ports +2 12～48VDC power supplies)
Model VI. IES6116-4F-P(100~240VAC/DC) (12 100M copper
ports +4 100M fiber ports +1 100～240VAC/DC
power supply)
Model VII. IES6116-6F-P(12~48VDC) (10 100M copper ports
+6 100M fiber ports +2 12～48VDC power supplies)
Model VIII.
copper ports +6 100M fiber ports +1 100～
240VAC/DC power supply)
Model IX. IES6116-8F-P(12~48VDC) (8 100M copper ports
+8 100M fiber ports +2 12～48VDC power supply)
Model X. IES6116-8F-P(100~240VAC/DC) (8 100M copper
Nanshan District,
ports +8 100M fiber ports +1 100～240VAC/DC
power supply)

【Panel Design of DC Device】


Top view, Bottom view and Rear view
2. Certification
4. Warranty card
6 CD

Front view
IES6116-6F-P(100~240VAC/DC) (10 100M
Model I Model III
Model VII Model IX
1. DIN-Rail mounting kit
2. Grounding screw
3. Relay alarm output terminal block
4. Console port
5. DC dual power input terminal block
6. DIP switch
7. Device running indicator RUN
8. Power supply input status indicator P1/P2
9. Relay alarm indicator ALM
10. 10/100Base-T(X) Ethernet copper port
11. Ethernet port connection indicator
12. 100Base-FX Ethernet fiber port

【Panel Design of AC Device】


Top view, Bottom view and Rear view
Model V
