- Page 1 IES6116 series Managed Industrial Ethernet Switch User manual Version 1.0.0, Mar. 2015 www.3onedata.com...
- Page 2 User manual IES6116 series user manual Statement Copyright Notice Information in this document is reserved by 3onedata Co., Ltd. Reproduction and extract without permission is prohibited. Trademarks Notice is registered trademarks of 3onedata Co.,Ltd. All other trademarks or registered marks in this manual belong to their respective manufacturers.
-
Page 3: Table Of Contents
6.4.3 IGMP Snooping .......................... 26 6.4.4 GMRP ............................27 6.4.5 Static Multicast FWD........................28 6.5 QOS ..............................29 6.5.1 QOS Classification ........................29 6.5.1.1 Weighted Fair priority ......................29 6.5.1.2 Strict priority ........................29 6.5.2 Port Priority ..........................30 www.3onedata.com... - Page 4 6.11Basic settings........................... 64 6.11.1 SNTP ............................64 6.11.2 Network & Reboot ........................65 6.11.3 System Identification ........................ 67 6.11.4 System Log ..........................68 6.11.5 System File Upgrade ....................... 69 6.11.6 Logout ............................71 Chapter 7 Repair and Service ........................72 www.3onedata.com...
- Page 5 User manual 7.1 Internet Service ..........................72 7.2 Make a call to our technical office ....................72 7.3 Repair or Replace ..........................72 Appendix 1 Glossary table ......................... 73 Appendix 2 Treatment of common problem ....................75 www.3onedata.com...
-
Page 6: Chapter 1 Summarize
Chapter 1 Summarize 1.1 Introduction IES6116 series is an industrial grade, managed and redundancy Ethernet switch. The IES6116 industrial Ethernet switches consists of 16 Ethernet ports. The IES6116-2F consists of 14 Ethernet ports and 2 Fiber ports. The IES6116-4F consists of 12 Ethernet ports and 4 Fiber ports. The IES6116-6F consists of 10 Ethernet ports and 6 Fiber ports. - Page 7 User manual Industrial grade 4 design, -40-75℃work temperature Support 2 input power, power supply redundancy backup, 1 relay alarm output, the natural heat Iron shell protection grade: IP40 DIN rail mounting www.3onedata.com...
-
Page 8: Chapter 2 Hardware Description
Systems running LED The power LED Relay alarm LED Link/ACT LEDs 5. 10/100BaseT(X) (RJ45) ports 6. DIP switch 7. Console port 8. Relay output terminal block 9. Power input terminal block 10. Ground screw 11. DIN-Rail mount IES6116-2F-P (12-48VDC) www.3onedata.com... - Page 9 2. The power LED 3. Relay alarm LED 4. Link/ACT LEDs 5. 10/100BaseT(X) (RJ45) ports 6. 100Base-FX ports 7. DIP switch 8. Console port 9. Relay output terminal block 10. Power input terminal block 11. Ground screw 12. DIN-Rail mount www.3onedata.com...
- Page 10 9. Relay output terminal block 10. Power input terminal block 11. Ground screw 12. DIN-Rail mount IES6116-8F-P (12-48VDC) 1. Systems running LED 2. The power LED 3. Relay alarm LED 4. Link/ACT LEDs 5. 10/100BaseT(X) (RJ45) ports 6. 100Base-FX ports 7. DIP switch www.3onedata.com...
-
Page 11: Power Input
The two wires attached to the Fault contacts form an open circuit when the device has lost power supply from one of the DC power inputs or one of the ports is failure. (Note: The AC power switch does not support power alarm.) www.3onedata.com... -
Page 12: Console Port
User manual 2.4 Console port IES6116 series provided 1 console port based on procedure of serial port. It adopts RJ45 interface, in front panel, can upgrade program with DB9 to RJ45 cable. 2.5 Communication port 10Base-T /100Base-TX Ethernet port 10Base-T/100Base-TX Ethernet port is located on front panel and the type is RJ45. The pinout of RJ45 port connects to UTP or STP. - Page 13 TX (transmitting) port connects remote switch‟s RX (receive) port; RX (receiving) port connect remote switch‟s TX (transmitting) port. Suppose: If you make your own cable, we advise to label the two sides of the cable with the same letter (A-to-A and B-to-B, shown as below, or A1-to-A2 and B1-to-B2). www.3onedata.com...
-
Page 14: Led Indicator
User manual 2.6 LED Indicator IES6116 series LED indictors are on the front panel. The function of each LED is described in the table as below: System statue LED Indicator Description P1~2 connection regularly PWR1~2 (Green) P1~2 Power supply have no connection or unwonted... - Page 15 8. Pigtail cannot be tied and swerved as less as possible. Swerving radius cannot be too small (small swerving causes terrible loss of link). Its banding should be moderate, not too tight, and should be separated from other cables; 9. It should have corresponding simple signal at both sides of the cable for maintaining. www.3onedata.com...
-
Page 16: Chapter 3 Appearance And Dimension

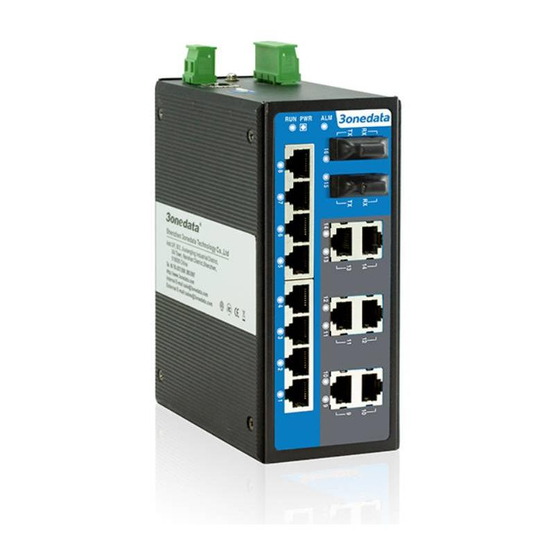

User manual Chapter 3 Appearance and Dimension 3.1 Appearance IES6116-P (12/48VDC) IES6116-2F-P (12/48VDC) IES6116-4F-P (12/48VDC) IES6116-6F-P (12/48VDC) www.3onedata.com... -
Page 17: Dimension
User manual IES6116-8F-P (12/48VDC) 3.2 Dimension The series of products are the same size, and the number of the Ethernet interface is different. Unit (mm) www.3onedata.com... -
Page 18: Chapter 4 Packing List
Please check the packaging and accessories by your first using. Please inform us or our distributor if your equipments have been damaged or lost any accessories, we will try our best to satisfy you. Description Quantity 3onedata Industrial Ethernet switch User manual Warranty card Certificate of quality... -
Page 19: Chapter 5 Network Configuration
Local Area Network. You can modify PC's or IES6116 series‟ IP address to make sure that they are in the same Local Area Network. Operating process can follow method 1 or method 2 as below, Method 1: Modify PC's IP address ... -
Page 20: Chapter 6 Web Management
Install Web explorer (IE6.0 or higher version) Install and start TCP/IP protocol 2. The default management IP address of IES6116 series: 192.168.1.254, subnet mask as: 255.255.255.0. Before access to the configuration interface, the computer's IP address and the switch must be configured in the same subnet (IP address configuration, please refer to "5.1") if need local... - Page 21 Configuration Remote Rmon Set the Rmon related information configuration Monitoring Email Warning Configure the mail server, recipient and other parameters. Relay Warning Rx Frame Port Statistics Tx Frame Traffic Statistics Display amount transfer and receive packets of the port www.3onedata.com...
-
Page 22: System Status
Web configuration interface.). If the user wants to do any operating on Web configuration interface again, the system will remind user and returns to the login dialog box. Users need to log in again if operating is needed. The timeout time is 300s. 6.2 System status Device information (Figure 6.2.1) www.3onedata.com... - Page 23 Firmware Version Current firmware version. Current Time Current time of the device. Time display （Figure 6.2.2） Port information （Figure 6.2.3） Port 1, 2...16, if the port is connected properly the status should be LINK, no connection status will be LOS. www.3onedata.com...
-
Page 24: Port Configuration
Auto-negotiation （AUTO） ,full duplex （FULL） , half duplex （HALF） optional, Duplex default mode is auto-negotiation mode. Configurable ports enable or disable. Selecting square frame is for enable Enable the corresponding port. It cannot transmit data if any port disable. The default is “Enable”. www.3onedata.com... - Page 25 It limits the abnormal flows into a certain range. Flow control can be effective in preventing large amounts of data in the network instant impact on the network to ensure the efficient and stable user network running. www.3onedata.com...
-
Page 26: Bandwidth Management
For example, the Figure 6.3.2 shows Port 1 limits the ingress speed only, the maximum speed of this port is 20M, Port 5 limits both egress and ingress speed, the maximum speed of this port is 50M www.3onedata.com... -
Page 27: Storm Suppression
Destination lookup failure frame: the MAC address of this data frame doesn't exist in inside index. It needs to transmit to all the ports, including unicast and multicast flow. Maximum Speed There are 5 levels: 3%, 5%, 10%, 20%, and 30%. The base is 100Mbps. www.3onedata.com... - Page 28 In the network the broadcast packets are more than 800packet/s, the network delay is obvious. The recommended setting is 3% based on the above theory. Please be caution to use MAC control frame and destination lookup failure frame, disabling IGMP Snooping will have impact on the transmission of the multicast. www.3onedata.com...
-
Page 29: L2 Feature
3. Choice “Add/Edit” 4. Choice “Apply”, then port 2 and port 3 were divided in VLAN3, they are in same VLAN, can transfer and receive data for each other. （ Figure 6.4.1） 2. Delete Item Delete the item in the table www.3onedata.com... -
Page 30: Ieee 802.1Q Vlan
5. Choice “Apply” 2. Delete Item Delete the item in the table 3. VLAN configuration： VLAN identification replace configuration: （ Figure 6.4.3） Manage VLAN ID： There must have members in VLAN, can access switch regularly through VLAN group members. www.3onedata.com... -
Page 31: Igmp Snooping
The router will send IGMP Query message regularly, the switch will deletes the port from the multicast forwarding list if it doesn't get the IGMP Report message from the host. IGMP Snooping: Enable or disable IGMP snooping function IGMP Query: Enable or disable IGMP query function www.3onedata.com... -
Page 32: Gmrp
IGMP port is added to the multicast group, at this time if the destination address of the data for the multicast group address, then the data only from the members of the multicast group forwarded out. www.3onedata.com... -
Page 33: Static Multicast Fwd
2. The following multicast addresses are reserved for the device or protocol, please don't use them: 0180C20000xx, 01005E0000xx. 3. IGMP dynamic learning will not update the multicast address, static multicast forwarding is a kind of safety mechanism. www.3onedata.com... -
Page 34: Qos
Strict priority: it refers to QoS deals with the message from high priority to low priority. If the low priority queues is full but the message of high priority queues don‟t finish, the message of low priority queues will be discarded; but if the speed of high priority queue does not reach the port‟s wire speed, then www.3onedata.com... -
Page 35: Port Priority
Low queue, priority queue is the worst. Identification of 2 priority and priority identification 3 mapped to the Normal queue, priority identification 4 and priority identification 5 mapped to the Medium queue, priority identification 6 and priority identification 7 mapped to the High queue is the highest priority queue. www.3onedata.com... -
Page 36: Tos/Dscp
The priority value of the device (1-16) is defined as the lowest priority, as the first queue. Priority value (17-32) is defined as the second queue, the priority value (33-48) is defined as the third queue, the priority value (49-64) is defined as the fastest queue, the highest priority. www.3onedata.com... - Page 37 2. DSCP priority comes second, unless we do not set DSCP, therefore will check 802.1p priority, otherwise it will line up according to the DSCP settings. 3. As above, the three priority can be used alone, can also be used at the same time, queuing according to the above rules. www.3onedata.com...
-
Page 38: Redundancy
2. If you do not confirm the STP state, please disable RSTP function, or close others, leaving only one STP channel. 3. Port 1 as the system reserved cannot be used as trunking. 4. The ports of having been set to the port aggregation that cannot be set to ring ports. www.3onedata.com... -
Page 39: Rapid Ring
IES6116 series supports maximum 4 ring groups. Each group set up 2 ports as Ring Port and a port cannot belong to several rings. -
Page 40: Ring V3 Single Ring Configuration
Method to enable Chain and Dual Homing is similar to that to enable Single Ring and Coupling Ring. It only needs to select corresponding items in [Type]. 6.6.2.1 Ring V3 single ring configuration. Open Ring v3, open ring group 1(or other groups), configure port 4 and port 5 are ring port, figure as 6.6.5 www.3onedata.com... -
Page 41: Ring V3 Dual Ring Configuration
2 3. Connect group 1 through network cable 4. Connect group 2 through network cable 5. Use BlueEyes software search the switches, the topology of the ring network is as figure 6.6.7 （Figure 6.6.7） www.3onedata.com... -
Page 42: Ring V3 Coupling Configuration
3. Set up Port 4 and 5 of Device 100, 101 to be Ring Ports in Ring Group 1, Network ID is 2, Ring Type is Single; Set up Port 1 of device to be Coupling Port in Ring Group 2 , Coupling Control Port is Port 4, Network ID is 3, Ring type is Couple, as shown in figure 6.6.10. www.3onedata.com... -
Page 43: Ring V3 Chain Configuration
Ring Type is Single; as shown in figure 6.6.12. Set up Port 7 and 8 of Device 107, 108 and 109 to be Ring Ports in Ring Group 2, Network ID is 2. Ring Type is Chain; as shown in figure 6.6.13. www.3onedata.com... -
Page 44: Rapid Spanning Tree Protocol (Rstp)
Enter into RSTP interface, figure as 6.6.14，The priority of this switch is 32768, port 1 participated in STP and priority is 128, port 2 participated in STP and priority is 240, other ports did not participated in STP and connect to the terminal directly. www.3onedata.com... - Page 45 Listening： Can receive packets, after the connection to it, switches stay max age=20s in the blocking， so judge whether switch port can become root port or designated port， the port state will convert listening(the state remains 15 ms) if it works, receive and forward packets during this time to achieve the www.3onedata.com...
-
Page 46: Access Control
The identity of visitor with the letter combination is no more than 16 bytes Password: Visitor use password, user authority allows the letter combination no more than 16 bytes Confirm password Make sure the last time input password is correct. （Figure 6.7.1） www.3onedata.com... -
Page 47: Access Profile
(such as TCP), provide data encapsulation, compression, encryption and other basic functions for higher layer protocols. SSL（SSL Handshake Protocol）: it on top of SSL Record Protocol, used before the beginning of data transmission, Verification of communication on both sides, negotiate an encryption algorithm, exchange encryption keys. www.3onedata.com... - Page 48 IP address must be a valid IP address, at least an address with the device IP in the same network segment, or the device will determine the setting is invalid. www.3onedata.com...
-
Page 49: Ieee 802.1X
Our device can play two roles of the certification system and the authentication server, you can use additional authentication server, while supporting the expenses system. （Figure 6.7.3） 802.1x 802.1x is used to enhance the security of the authentication. Radius Server Remote/Local www.3onedata.com... - Page 50 Such as the example setting, IEEE 802.1X server certificate client once every 3600 seconds. Such as the example setting, IEEE 802.1X server certificate client once every 3600 seconds. Use a local database, the local database description as following chapter. The client uses the MD5 authentication, the specific settings as figure 6.7.4. www.3onedata.com...
- Page 51 DNS must be set correctly. www.3onedata.com...
-
Page 52: Database Certification
In the static address list, one MAC address corresponds to one port, if try to configuration, all data sent to this address will only be forwarded to the port. And also become he MAC address binding. www.3onedata.com... - Page 53 This function is a security mechanism, be careful to confirm the setting, otherwise be used with caution. Do not use a multicast address as the input address. Do not enter the reserved MAC address, such as the device's MAC address. www.3onedata.com...
-
Page 54: Remote Monitoring
Community name with Write privilege can configure the device. 3. Setup appointed basic visit control list of the community name. IES6116 series supports SNMP V1/V2c. Both SNMP V1 and V2c use public character strings for match authentication. - Page 55 The device supports warm start of Trap. If existed IP address in Trap gateway, click "Apply", the Trap receiver can get the trap information. If the trap receiver cannot get trap information, please check network setting and connecting. Please pay attention to the privilege of Read and Write in SNMP Explorer. www.3onedata.com...
-
Page 56: Rmon
Sample number is the item in the table need to hold, default is none, recommend: 50 pieces. Sample interval is the time interval that gets the statistics data every two times, default is none, recommend: 1800s. Now, the monitor history information can be get through SNMP managed software, WEB did not support now. www.3onedata.com... -
Page 57: Rmon Alarm
（Figure 6.8.2.3） 6.8.2.4 Rmon Event Enter into Rmon information configuration interface. Index correspond to rising event index and falling event index in RMON alarm information configuration. LOG: add an information in LOG table when the event was occurred. www.3onedata.com... -
Page 58: Email Warning
（Figure 6.8.3） Email warning function will send the warn information immediately by Email if these things happen: NTP information, connection statue changed, login information, broadcast storm information, operating record, and other system log. www.3onedata.com... -
Page 59: Relay Warning
Port alarm includes port dropped alarm, port enabled alarm, the device will output a signal to prompt the device is not working properly when the ports in abnormal status (connected or disconnected). www.3onedata.com... - Page 60 User manual （Figure 6.8.5） Figure as above: Relay warning mode have 3 types: no warning when have change, warning when have link, warning when have no link, user can choice the type according to their requirements. www.3onedata.com...
-
Page 61: Port Statistics
Number of data packets (including FCS) less than 64 bytes Oversize Number of data packets (including FCS) more than 1518 or 1522 bytes (Enable VLAN) Fragments Number of incorrect or incomplete FCS data packets (including FCS) less than 64 bytes www.3onedata.com... -
Page 62: Tx Frame Statistics
Pause Ethernet control frames of protocol 0x8808 sent by the port, in full duplex mode, this data packet is used to control frequency of data sending Collision Number of conflicts encountered in the port while sending data Multiple Collision www.3onedata.com... -
Page 63: Traffic Statistics
Multicast Number of multicast data packets sent and received by the port Broadcast Number of broadcast data packets sent and received by the port Error Number of error packets because of some reasons sent and received by the port www.3onedata.com... -
Page 64: Mac Address Table
MAC address does not disappear after the switch is restart MAC address table can specify the sort type, can choose "auto" and "MAC" two sort types, MAC address and related forwarding port will be showed in this table. if the status bar displays "certification"， www.3onedata.com... - Page 65 3. Multicast address list displays the IGMP snooping item, in the address list here all unicast address. 4. MAC address aging time is 300 seconds, the port is disconnected our parent program to clear all the corresponding port items. www.3onedata.com...
-
Page 66: Diagnosis
It defines a group of ports which are needed to be monitored. The device collects data from these ports. Monitored Port It defines a group of ports which are used to monitor other ports. The device outputs the data through these ports. Watch direction www.3onedata.com... -
Page 67: Ping Test
（Figure 6.10.2） Host Address Appointed computer need to ping, it can be an IP address or a domain. Message Size Echo data packet including data in "message length" Message Number Number of appointed echo data packet Message Interval www.3onedata.com... - Page 68 1. "Diagnosis" is only to collect information of the device, not solving the faults. 2. The domain of "Host Address" doesn't support unlimited expansion, only not more than 3 levels domain like "mail.3onedata.com" 3. "Request timeout" indicates the other network card is not working properly or some problems of lines.
-
Page 69: Basic Settings
(specifically UTC−11 to UTC+11) are indeed defined this way, and are 15° of longitude wide. An hourly zone in the central Pacific Ocean is split into two 7.5° -wide zones (UTC± 12) by the 180th meridian, part of which coincide with the International Date Line. www.3onedata.com... -
Page 70: Network & Reboot
A, B, C class address is unicast address; D class address is multicast address; E class address is reserved to prepare for the future for special purposes. Each IP address is represented as four decimal integers separated by IP address using dotted decimal. decimal points; each integer corresponds to a byte, such as, 10.110.50.101. www.3onedata.com... - Page 71 IP address. （Figure 6.11.2） We can set the range of IP address as 192.168.x.x, 162.[16-31].x.x, or 10.x.x.x NTP and EMAIL will use DNS service, please enter correct DNS address if use these two services. www.3onedata.com...
-
Page 72: System Identification
For marking each device on the network, give the device a different name, support for Chinese character input, is no more than 16 bytes. Description A summary description of the equipment is no more than 16 bytes. Serial NO. Describe the location of installation, support Chinese input, and most no longer than 30 bytes. www.3onedata.com... -
Page 73: System Log
If you know the IP address of the device, user name and password: Click "System Management" Click "system Log" Choose "Log Status" Click "Disable" and save the configuration. 3. Browse the Log If you know the IP address of the device, user name and password: www.3onedata.com... -
Page 74: System File Upgrade
If you know the IP address of the device, user name and password: Use IE to login Web interface. Click "System Management" Click "System File Update" Choose "Factory Default" Click "OK" Notice: the IP address will be "192.168.1.254". Open a new interface, input "192.168.1.254" to make a new configuration. www.3onedata.com... - Page 75 2. Upload the configuration file, in the new configuration if static IP is not in the same network segment, the website will not be opened. 3. Use dynamic IP settings, but there is no DHCP server on the network segment, that will result in the relevant part of the IP will not be updated in the new configuration when upload configuration. www.3onedata.com...
-
Page 76: Logout
User manual 6.11.6 Logout As shown in Figure 6.11.7, logout functionality for the system interfaces. （Figure 6.11.7） System Logout Click the <OK> button, the interface would be returned to the login screen, configuration does not have to be changed. www.3onedata.com... -
Page 77: Chapter 7 Repair And Service
Make a call to our technical office. Return or replace product. 7.1 Internet Service Please visit http://www.3onedata.com 7.2 Make a call to our technical office You can call our technical support office, the company has professional technical engineers to answer your questions and help you resolve your problems at the first time. -
Page 78: Appendix 1 Glossary Table
Management Protocol） multicast group members. IEEE 802.1p Add the priority network traffic on MAC sub layer of data link layer. Define the VLAN bridge operation. To manage ,define and IEEE 802.1q operate VLAN on the bridge LAN www.3onedata.com... - Page 79 Packaged in IP packet header of 8 bit domain to perform the ToS （Type of Service） different priority packets UDP （ User Datagram Face to disconnected unreliable transmission layer protocol Protocol） (Unshielded Not shielded media out of twisted pair Twisted Pair) www.3onedata.com...
-
Page 80: Appendix 2 Treatment Of Common Problem
7. What about the order of port adaptive status detection? Port to detect the status in the following order: 100Mbps full duplex, 100Mbps half duplex, 10Mbps full-duplex, and 10Mbps half duplex, in descending order to detect and automatically connect with the highest speed. www.3onedata.com...
