Cleaning Nozzle And Spray Lance; Cleaning The Water Intake Screen; Cleaning The Water Filter - Stihl RE 100 PLUS CONTROL Instruction Manual

English

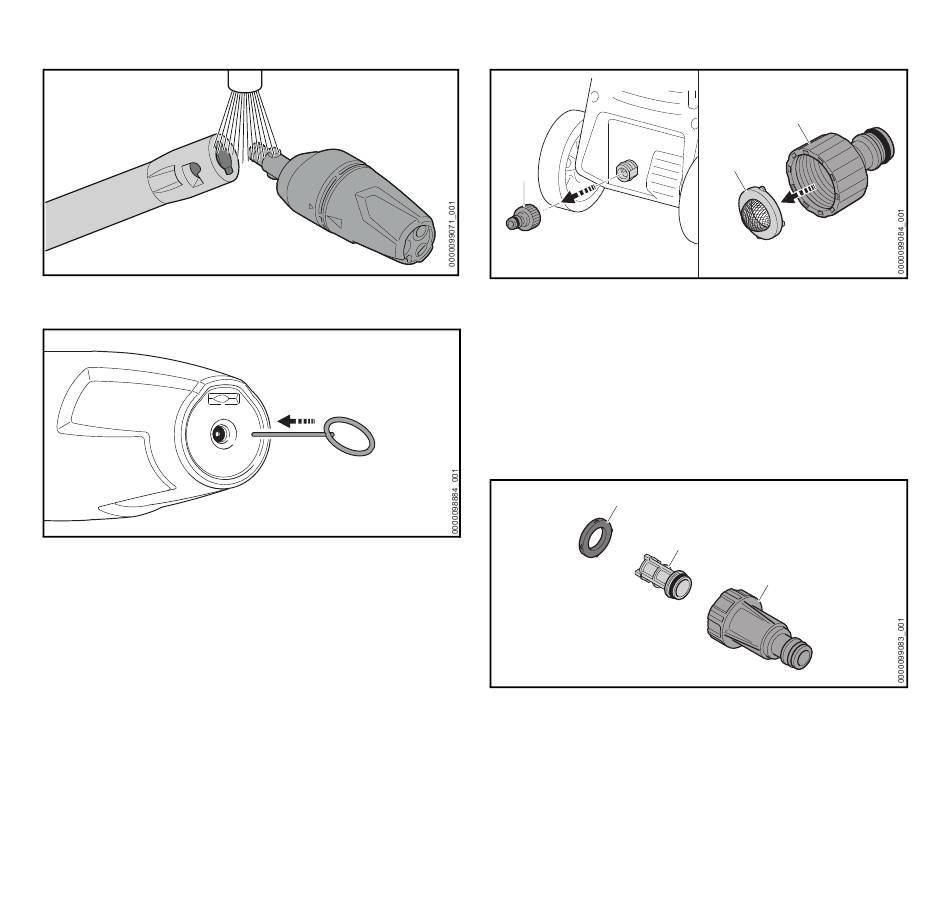

14.2 Cleaning nozzle and spray lance

► Rinse the nozzle and spray lance under running water and
dry with a cloth.
► If the nozzle is clogged: Clean the nozzle with the cleaning
pin.
26

14.3 Cleaning the water intake screen

1
► Unscrew the connector (1) of the water connection.
► Remove water intake screen (2) from the connector.
► Rinse out the water intake screen (2) under running water.
► Insert water intake screen (2) into the connector.
► Attach the connector (1) and tighten it by hand.

14.4 Cleaning the water filter

The water filter must be disassembled to clean it.
1
► Remove the seal (1) from the filter housing (3).
► Take the filter (2) out of the filter housing (3).
► Rinse out the seal (1) and the filter (2) under running
water.
► Grease the gasket (1) with a fitting grease.
► Reassemble the water filter.
14 Cleaning
1
2
2
3
0458-004-0121-A
