Installing The Batteries; Attaching And Removing The Spray Gun - Stihl RE 100 PLUS CONTROL Instruction Manual
Hide thumbs
Also See for RE 100 PLUS CONTROL:
- Instruction manual (56 pages) ,
- Owner's instruction manual (84 pages)
Table of Contents
Advertisement
English

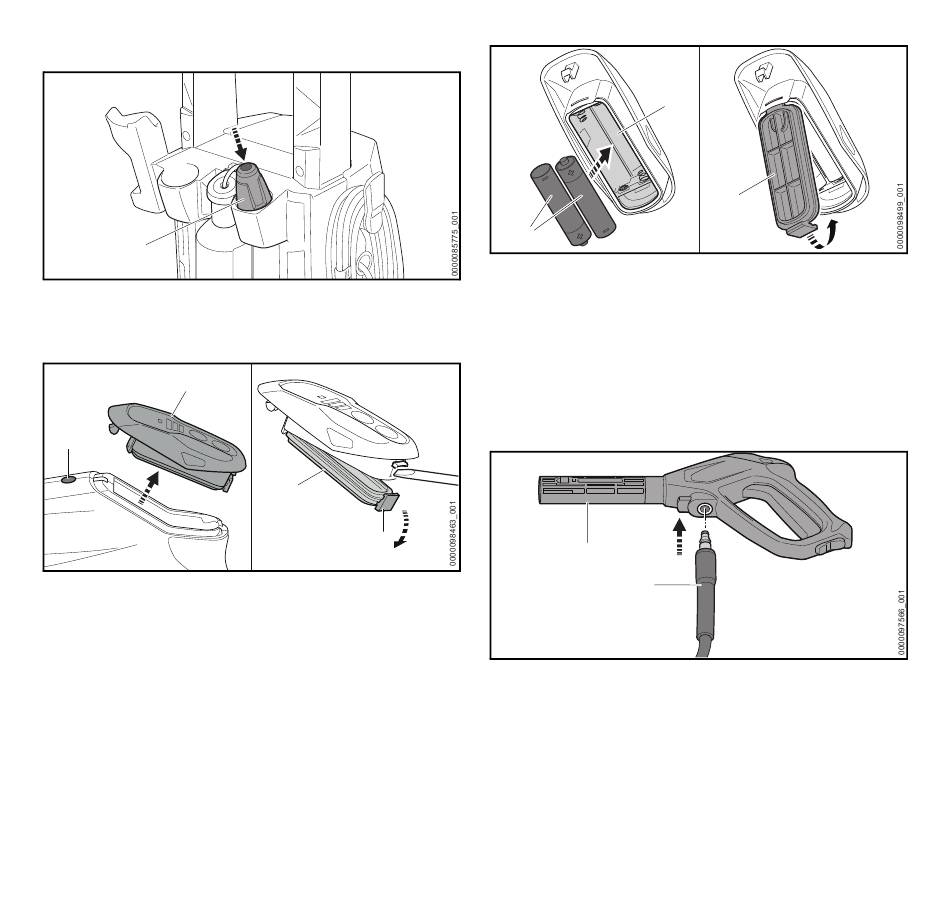

Inserting nozzles
1
► Insert 3-in1 nozzle (1).
6.2
Installing the Batteries
2
1
► Press the locking button (1).
► Remove control panel (2).
► Open the retaining latch (3).
► Remove the cover (4).
16
4
3
5
► Insert the batteries (5) into the control panel (2) according
to the polarity- (+/-).
► Close cover (4).
► Insert the control panel into the spray gun.
The control panel engages with an audible click.
6.3
Attaching and removing the spray gun
6.3.1
Attaching the spray gun
1
2
► Slide the connector (2) into the spray gun (1).
The connector (2) engages with an audible click.
► If the connector (2) cannot be easily pushed into the spray
gun (1): Grease the gasket on the connector (2) with
grease for fittings.
6 Assembling the pressure washer
2
4
0458-004-0121-A
