6 Assembling the pressure washer

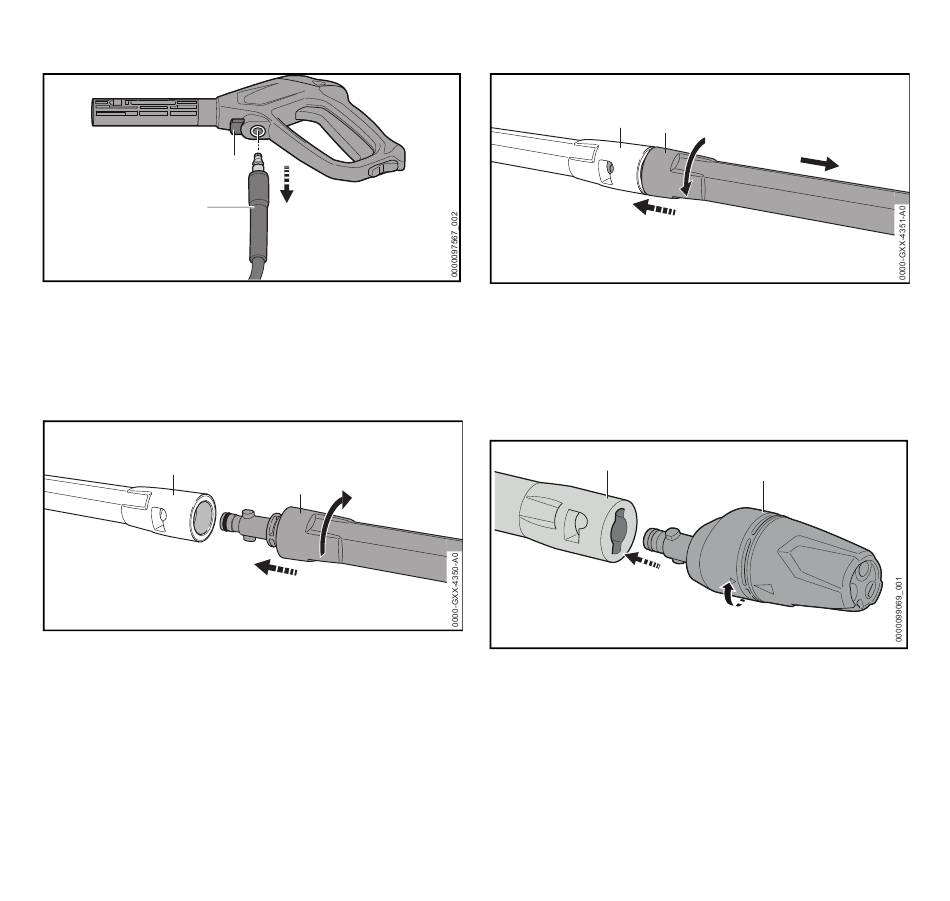

6.3.2 Removing the spray gun
2
► Press and hold the locking lever (1).
► Pull out the connector (2).
6.4

Attaching and removing the spray lance

6.4.1 Attaching the spray lance
2
► Push spray lance (1) into spray gun (2).
► Twist the spray lance (1) until it engages.
► If the spray lance (1) cannot be pushed easily into the
spray gun (2): Grease the gasket on the spray lance (1)
with grease for fittings.
0458-004-0121-A
1
1
6.4.2 Removing the spray lance
2
1
► Squeeze spray lance (1) and spray gun (2) together and
twist as far as they will go.
► Pull spray lance (1) and spray gun (2) apart.
6.5

Attaching and removing the nozzle

6.5.1 Attaching the Nozzle
2
► Push nozzle (1) onto the spray lance (2).
► Turn the nozzle (1) until it engages
► If the nozzle (1) cannot be pushed easily into the spray
lance (2): Grease the gasket on the nozzle (1) with grease
for fittings.
English
1
17
