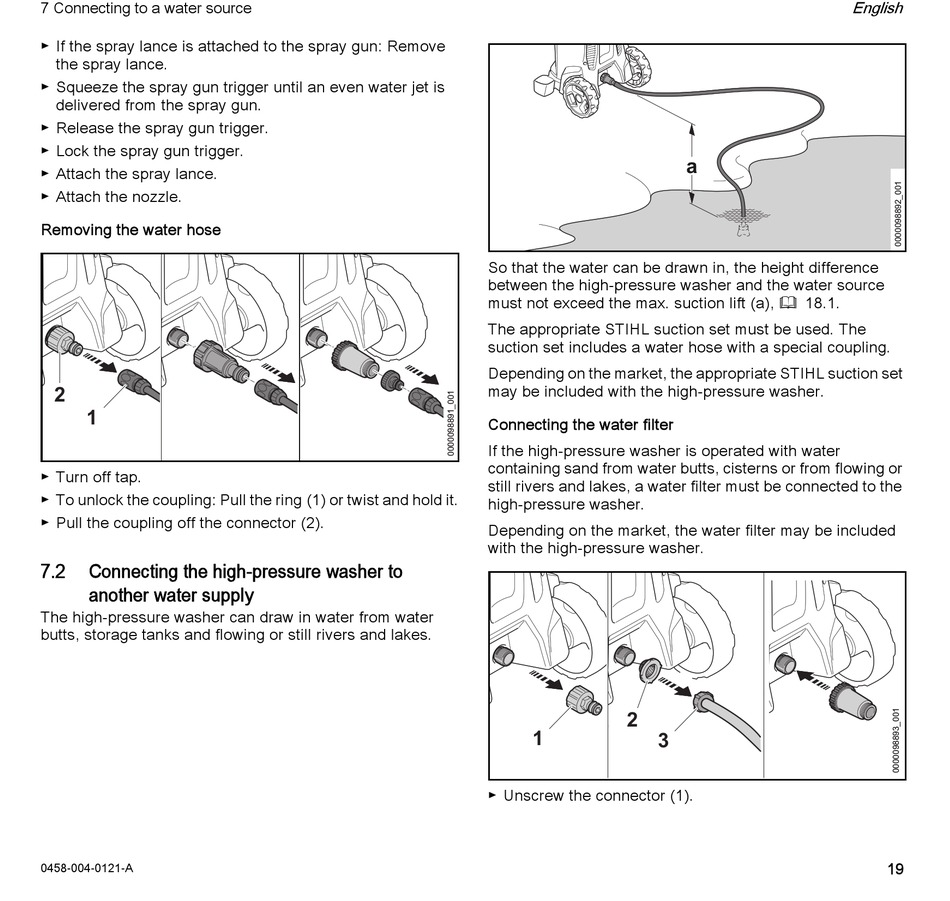

7 Connecting to a water source
► If the spray lance is attached to the spray gun: Remove
the spray lance.
► Squeeze the spray gun trigger until an even water jet is
delivered from the spray gun.
► Release the spray gun trigger.
► Lock the spray gun trigger.
► Attach the spray lance.
► Attach the nozzle.
Removing the water hose
2
1
► Turn off tap.
► To unlock the coupling: Pull the ring (1) or twist and hold it.
► Pull the coupling off the connector (2).
7.2 Connecting the high-pressure washer to
another water supply
The high-pressure washer can draw in water from water
butts, storage tanks and flowing or still rivers and lakes.
0458-004-0121-A
So that the water can be drawn in, the height difference
between the high-pressure washer and the water source
must not exceed the max. suction lift (a), @ 18.1.
The appropriate STIHL suction set must be used. The
suction set includes a water hose with a special coupling.
Depending on the market, the appropriate STIHL suction set
may be included with the high-pressure washer.
Connecting the water filter
If the high-pressure washer is operated with water
containing sand from water butts, cisterns or from flowing or
still rivers and lakes, a water filter must be connected to the
high-pressure washer.
Depending on the market, the water filter may be included
with the high-pressure washer.
2
1
3
► Unscrew the connector (1).
