Stihl RE 130 PLUS Manual

Introduction

The information contained in this manual will help you receive maximum performance and satisfaction from your STIHL pressure washer and, if followed, reduce the risk of injury from its use.

SAVE THIS MANUAL!

Because the pressure washer is electrically powered and produces a strong water jet, special safety precautions must be observed to reduce the risk of personal injury.

Read this instruction manual thoroughly before use and periodically thereafter. Follow all safety precautions. Careless or improper use of the pressure washer can cause serious or fatal injury.

Do not lend or rent your pressure washer without this instruction manual. Allow only persons who fully understand the information in this manual to operate the pressure washer.

For further information, or if you do not understand any of the instructions in this manual, please go to www.stihl.ca or contact your authorized STIHL servicing dealer.

Guide to Using this Manual

Signal Words

This manual contains safety information that requires your special attention. Such information is introduced with the following symbols and signal words:

Indicates a hazardous situation which, if not avoided, will result in death or serious injury.

Indicates a hazardous situation which, if not avoided, could result in death or serious injury.

NOTICE:
Indicates a risk of property damage, including damage to the machine or its individual components.

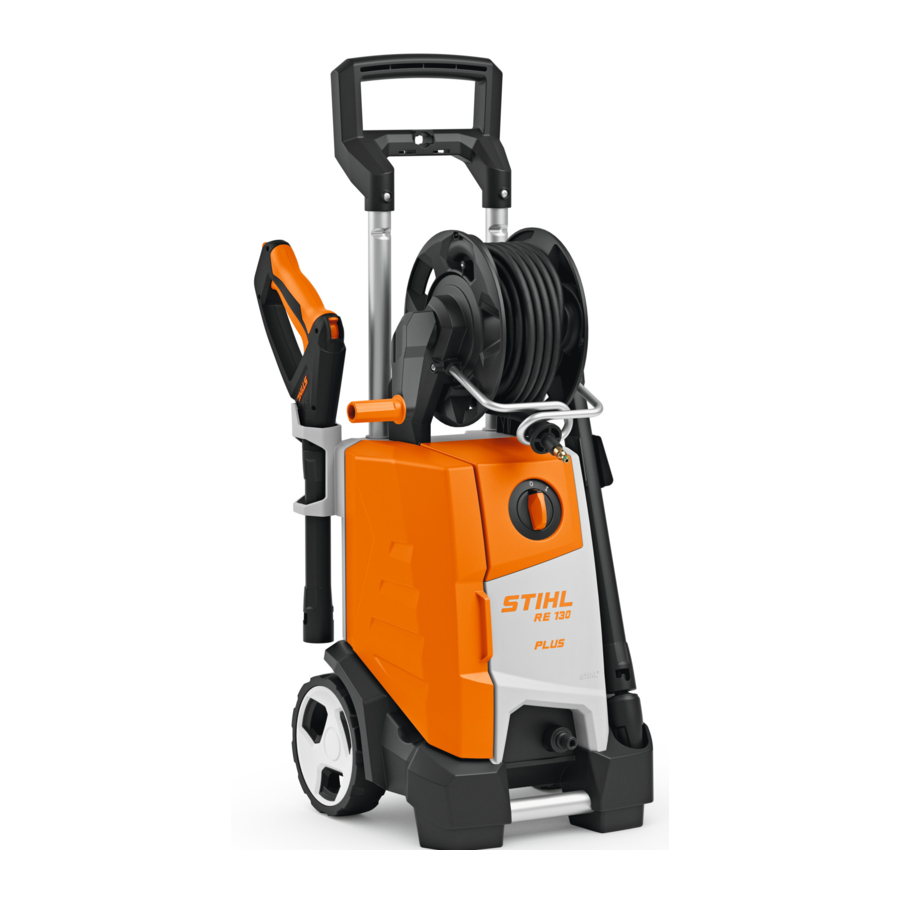

Main Parts

Pressure Washer

1. Storage Compartment
   For storing the high-pressure nozzles.
2. Storage Compartment
   For storing the cleaning needle.
3. Storage Compartment
   For storing additional high-pressure nozzles from accessories for pressure washers.
4. Power Supply Cord
   Supplies the pressure washer with electricity when connected to an electrical outlet (power supply).
5. Plug
   Connects the power supply cord to an electrical outlet.
6. Clip
   For securing the power supply cord on the brackets.
7. Brackets for Power Supply Cord
   For storing the power supply cord.
8. Cover
   Covers the high-pressure nozzles, the power supply cord and the cleaning needle.
9. Holder for Spray Gun For storing the spray gun.
10. Crank Handle Used for turning the hose reel.
11. Hose Reel
    For storing the high-pressure hose.
12. High-Pressure Hose
    Transports the water from the high-pressure pump to the spray gun.
13. Guide Bar
    For guiding the high-pressure hose onto the hose reel.
14. Holder for Spray Attachment For storing the entire spray attachment consisting of spray gun and spray lance.
15. Coupling
    For connecting the high-pressure hose to the spray gun.
16. Power Switch Switches the motor on and off.
17. Connector for Water Inlet For connecting the water hose to the highpressure pump.
18. Carrying Handle
    For lifting and transporting the pressure washer.
19. Pushbar
    For pushing the pressure washer.
20. Holder for Detergent Spray Set For storing the detergent spray set.
21. Release Button
    Unlocks the pushbar to allow length adjustment.

# Rating Plate
Contains electrical information and the product's serial number.

Spray Attachment

1. Spray Lance
   Directs the water from the spray gun to the high-pressure nozzle.
2. Spray Gun
   For controlling and directing the water jet.
3. Retaining Latch
   Locks/unlocks the spray gun trigger.
4. Spray Gun Trigger
   Opens and closes the valve in the spray gun.
5. Coupling for High-Pressure Hose For connecting the high-pressure hose to the spray gun.
6. Cleaning Needle
   For removing dirt and debris from the spray nozzles.
7. Detergent Spray Set Used for adding detergents.
8. Detergent Nozzle
   Designed to mix and spray detergent with water.
9. Detergent Bottle
   For adding detergent while cleaning.
10. Rotary-jet Nozzle
    Rotating nozzle for removing stubborn dirt.
11. Fan-jet Nozzle
    Universal nozzle for cleaning larger surfaces.

Safety Symbols on the Product

Pressure Washer

The following safety symbols are found on the pressure washer:

To reduce the risk of injury, follow the specified safety precautions.

Read and follow all safety precautions in the instruction manual. Improper use can lead to serious or fatal personal injury or property damage.

To reduce the risk of eye injury, always wear proper eye protection.

• To reduce the risk of serious or fatal injury to the operator or bystanders, never direct the high-pressure jet toward the operator, bystanders or animals, not even to clean clothing or shoes,
• To reduce the risk of short-circuiting, fire and electrocution, never direct the spray at electrical appliances and equipment, sockets or power cords.
• To reduce the risk of short-circuiting, fire and electrocution, never direct the spray at electrical equipment or the pressure washer itself.

To reduce the risk of injury or property damage, immediately disconnect the pressure washer from the power supply if the power supply cord is damaged.

Do not connect the pressure washer directly to a potable water system.

To reduce the risk of injury or property damage from unintended activation, switch off the pressure washer any time the pressure washer is not in use.

To reduce the risk of damage to the pressure washer, do not allow the pressure washer to be used or stored in freezing temperatures. Store the pressure washer indoors in a dry, secure place that cannot be accessed by children or other unauthorized users.

IMPORTANT SAFETY INSTRUCTIONS

General Safety Warnings and Instructions

This section contains the prescribed general safety warnings and instructions for electric highpressure cleaners / pressure washers. Additional important warnings and instructions are provided in subsequent sections of this manual.

When using electric pressure washers, basic safety precautions should always be followed to reduce the risk of fire, electric shock and personal injury, including the following:

1. Read all the instructions before using the product.
2. To reduce the risk of injury, close supervision is necessary when a product is used near children.
3. Know how to stop the product and bleed pressures quickly. Be thoroughly familiar with the controls.
4. Stay alert – watch what you are doing.
5. Do not operate the product when fatigued or under the influence of alcohol or drugs.
6. Keep operating area clear of all persons.
7. Do not overreach or stand on unstable support. Keep good footing and balance at all times.
8. Follow the maintenance instructions specified in the manual.
9.
   Risk of eye injury. Spray can splash back or propel objects. Always wear properly rated eye protection such as safety goggles or face shield while spraying. (Safety glasses do not provide full protection.)

GROUNDING INSTRUCTIONS

• This product must be grounded. If it should malfunction or break down, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This product is equipped with a cord having an equipment grounding conductor and a ground pin. The plug must be plugged into an appropriate electrical outlet that is properly installed and grounded in accordance with all local codes and ordinances.
• Improper connection of the equipment-grounding conductor can result in a risk of electrocution. Check with a qualified electrician or service personnel if you are in doubt as to whether the electrical outlet is properly grounded. Do not modify the plug provided with the product – if it will not fit the outlet, have a proper outlet installed by a qualified electrician. Do not use any type of adapter with this product.

EXTENSION CORDS

• Risk of electrocution. Use of an extension cord could cause electric shock or burn resulting in death or serious injury.
• Do not use an extension cord with this electric pressure washer. Your electrical circuit receptacle or extension cord may not provide lifesaving protection with a ground fault circuit interrupter.

ADDITIONAL SAFETY INFORMATION

• Read and follow all safety precautions on labels and in instruction manual. Failure to follow these instructions can cause serious or fatal injury.
• Spray jet can propel objects at high velocity. Always wear goggles that are impact-rated and comply with CSA Z94.
• Keep bystanders and animals out of the work area.
• Always wear hearing protection.
• See rating plate for maximum discharge pressure and maximum discharge temperature – use only high pressure hoses and accessories rated for these amounts or above. Use only genuine STIHL replacement parts.
• Spray gun produces strong recoil (kickback) opposite to direction of spray. Hold firmly with both hands to reduce the risk of injury from loss of control.
• Because of high pressure and water velocity, spray jet is very powerful. To reduce risk of severe lacerations and injection of fluids below the skin, never direct spray jet towards self, other persons or animals. Keep clear of nozzle while machine is operating. Make sure spray jet does not damage object being cleaned.
• To reduce risk of fire and explosion, never spray flammable liquids.
• To reduce risk of serious or fatal injury from electric shock, never use pressure washer if its power cord is cut, cracked, worn or damaged. Immediately disconnect a damaged cord.
• To reduce risk of electrocution and fire, never direct spray jet towards the machine itself, other electrical appliances or equipment, sockets or power cords. Never spray near power source.
• Protect against frost.
• Store indoors.
• If connection is made to a potable water system, the system must be protected against backflow.

RISK OF ELECTROCUTION

• Connect only to properly grounded outlet. Do not remove ground pin.
• Inspect cord before using – do not use if cord is damaged.
• Keep all connections dry and off the ground.
• Do not touch plug with wet hands.
• If replacement of the plug or cord is needed, use only identical replacement parts.
• Do not use an extension cord.
• Read instruction manual before using.

Intended Use

• This pressure washer is designed for cleaning jobs around the home and garden, cleaning garden furniture, walkways, patios, vehicles, trailers and other similar applications.
• Use your pressure washer only for cleaning solid surfaces and other items that will not be damaged by water or the force of the spray jet.
• Use the pressure washer only as described in this manual. Do not use it for other purposes, since misuse may result in personal injury or property damage, including damage to the pressure washer.
  • Never attempt to modify or override the pressure washer's controls or safety devices in any way.
  • Never use a pressure washer that has been modified or altered from its original design.

Operator

• Working with the pressure washer can be strenuous. The operator must be in good physical condition and mental health. To reduce the risk of personal injury:
  • Check with your doctor before using the pressure washer if you have any health condition that may be aggravated by strenuous work.
  • Do not operate the pressure washer while under the influence of any substance (drug, alcohol or medication, etc.) that mightimpair vision, balance, dexterity or judgment.
  • Be alert. Do not operate the pressure washer when you are tired. Take a break if you become tired.
  • Do not permit minors to use the pressure washer.
  • Bystanders, especially children, and animals should not be allowed in the area where the pressure washer is in use.
• According to STIHL's current knowledge, the electric motor of this pressure washer should not interfere with a pacemaker.
  • However, persons with a pacemaker or other implanted medical device should consult their physician and device manufacturer before operating this pressure washer.

Personal Protective Equipment

• To reduce the risk of personal injury:
  • Always wear proper clothing and protective apparel, including proper eye protection.
• To reduce the risk of eye injury:
  • Always wear goggles that are impact-rated and marked as complying with CSA Z94. Safety glasses do not provide full protection.
• Good footing is very important. To help maintain a secure footing and reduce the risk of injury while working:
  • Wear sturdy boots with non-slip, rubber soles. Do not wear sandals, flip-flops, open-toed or similar footwear.
• To reduce the risk of electric shock:
  • Wear rubber-soled footwear that provides insulation when operating the pressure washer.
• Aqueous aerosols may form while working with a pressure washer. Inhalation of some aerosols can be hazardous. To determine the measures necessary to protect against aqueous aerosols, carry out a risk assessment before starting work. Depending on your risk assessment, class FFP2 or higher respirators may be necessary.

Pressure Washer

• To reduce the risk of serious or fatal injury from electrocution or electric shock:
  • Position the pressure washer outside the wet work area.
  • Store the pressure washer indoors.
  • Never use your pressure washer if the casing around the motor is cracked or damaged.
• To reduce the risk of personal injury to the operator and bystanders:
  • Always switch off the pressure washer, relieve system pressure, lock the spray gun trigger and disconnect from the power supply before assembling, inspecting, cleaning, maintaining or servicing the pressure washer.
• Although certain unauthorized attachments may fit your STIHL pressure washer, their use may be extremely dangerous. Only attachments supplied by STIHL or expressly approved by STIHL for use with this specific model are recommended.
  • Use only attachments supplied or expressly approved by STIHL.
  • Never modify this pressure washer in any way.
  • Never attempt to modify or override the pressure washer's controls or safety devices in any way.
  • Never use a pressure washer that has been modified or altered from its original design.
• If the pressure washer is dropped or subjected to similar heavy impacts:
  • Check that it is undamaged, in good condition and functioning properly before continuing work.
  • Check that the controls and safety devices are working properly.
  • Check that the power supply cord has not been damaged.
  • Never work with a damaged or malfunctioning pressure washer. In case of doubt, have the pressure washer checked by your authorized STIHL servicing dealer.
• If the pressure washer is damaged, not working properly, has been left outdoors or exposed to rain, its components may no longer function properly and safety devices may be inoperative. To reduce the risk of personal injury and property damage:
  • Take the pressure washer to your authorized STIHL servicing dealer to be checked before further operation.
• Genuine STIHL replacement parts are specifically designed to match your pressure washer and meet safety and performance requirements. Use of parts that are not authorized or approved by STIHL may cause serious or fatal injury or property damage.
  • STIHL recommends that only identical STIHL replacement parts be used.

Power Supply Cord

• Using a damaged power supply cord or plug may result in fire, electric shock and other personal injury or property damage. To reduce these risks:
  • Check the pressure washer's power supply cord or plug regularly for damage. If it becomes damaged, disconnect the pressure washer from the power supply. Never use a damaged power supply cord or plug.
  • Do not abrade, crush, jerk, or otherwise abuse or misuse the power supply cord. Protect it from heat, oil and sharp edges.
  • If the power supply cord becomes damaged, have it replaced by an authorized STIHL servicing dealer before use. A damaged power supply cord must be replaced with an identical STIHL replacement part.
  • Unplug the power supply cord when the pressure washer is not in use.
  • Never yank or jerk the power supply cord to disconnect. To unplug, grasp the plug, not the power supply cord.
  • Make sure the power supply cord is positioned and secured or marked so that it will not be stepped on, tripped over, come in contact with sharp objects, moving parts, or otherwise be subjected to damage or stress.
• This power tool has a polarized plug (one blade is wider than the other). This plug will fit in a polarized electrical outlet only one way.
  To reduce the risk of electric shock:
  • Do not change the plug in any way.
  • If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, use a different outlet or contact a qualified electrician to install the proper outlet.

Connecting the Water Supply

• When the spray gun trigger is released, fluid recoil may push non-potable water back into the potable water system.
  • Do not connect the pressure washer directly to a potable water system.
  • If hooking up the pressure washer to a potable water system, a backflow preventer must be installed between the water tap and the hose. The design of the backflow preventer must comply with all applicable water management codes and regulations in your area.
• If potable water has passed through the backflow preventer, it can no longer be regarded as potable water. To prevent contamination of potable water:
  • Follow the rules laid down by the local water supply company to prevent water flowing back from the pressure washer into the drinking water main.
  • Do not use the pressure washer with dirty water (i.e., water that contains sand, dirt or other particulate matter). If there is a risk that the water supply is dirty, use an appropriate water filter or find an alternative water source.

Using the Pressure Washer

Before Operation

• Misuse or unauthorized use may result in personal injury and property damage.
  • Use the pressure washer only as described in this instruction manual.
• Using a pressure washer that is modified, damaged, improperly adjusted or maintained, or not completely and securely assembled can lead to a malfunction and increase the risk of serious personal injury or death.
  • Never operate a pressure washer that is modified, damaged, improperly maintained or not completely and securely assembled.
  • Always check your pressure washer for proper condition and operation before starting work, particularly the spray gun trigger and retaining latch.
  • Ensure that the spray gun trigger and retaining latch move freely. The spray gun trigger must not engage until the retaining latch is moved to the unlocked position.
  • Never attempt to modify or override the controls or safety devices in any way.
  • If your pressure washer or any part is damaged or does not function properly, take it to your authorized STIHL servicing dealer. Do not use the pressure washer until the problem has been corrected.
• Before connecting the pressure washer to the power supply:
  • Read and follow the instructions on switching on the pressure washer.
  • Ensure that the high-pressure hose is in good condition and not frayed, cracked, deformed or damaged in any way. Never operate the machine with a damaged or worn high-pressure hose.
• To help reduce the risk of serious personal injury or death from unintentional starting:
  • Never carry the pressure washer with your finger on the spray gun trigger.
  • Switch off the pressure washer, relieve system pressure, lock the spray gun trigger and disconnect from the power supply before assembling, inspecting, cleaning, maintaining or servicing the pressure washer.
  • Always switch off the pressure washer, relieve system pressure and lock the spay gun trigger before attempting to remove the high pressure hose or spray lance from the spray gun.
  • Always switch off the pressure washer, relieve system pressure and lock the spray gun trigger before attempting to adjust or change a spray nozzle or other accessory.
  • Never leave the pressure washer unattended when it is connected to the power supply.

Holding and Controlling the Pressure Washer

• To maintain a firm grip and properly control your pressure washer:
  • Keep the spray attachment clean at all times. Keep it free of pitch, oil, grease and resin.
• To reduce the risk of serious or fatal injuries to the operator or bystanders from loss of control:
  • Always hold the spray attachment firmly with both hands when you are working.
  • Wrap your fingers tightly around the spray gun and spray lance.
  • Position the spray attachment in such a way that all parts of your body are clear of the water jet.
  • Position the power supply cord so that it will not be damaged while working with the pressure washer.
  • Always keep the power supply cord behind the operator and away from the water jet. Don't let the power supply cord become entangled with obstacles or objects.
• Operating the pressure washer with one hand is extremely dangerous. One-handed operation makes it difficult to oppose and absorb reactive forces (recoil) without losing control of the pressure washer. To reduce the risk of serious or fatal injury to the operator or bystanders from loss of control:
  • Never attempt to operate the pressure washer with one hand.
• Because of the high pressure and spray velocity, fluids can penetrate the skin and cause fluid injection and/or severe injury. To reduce the risk of serious or fatal injuries to the operator or bystanders from loss of control, keep proper footing and balance at all times:
  • Take special care in overgrown or wet terrain and always watch for hidden obstacles such as tree stumps, roots, rocks, holes and ditches to avoid stumbling or falling.
  • Know where the power supply cord and water hoses are at all times to avoid tripping or stumbling.
  • Be extremely cautious when working on slopes or uneven ground.
• To reduce the risk of injury from loss of control:
  • Never work on a ladder, roof, in a tree or while standing on any other insecure support.
  • Never operate the pressure washer above shoulder height.
  • Do not overreach. Keep proper footing and balance at all times.

Working Conditions

• Operate your pressure washer only under good visibility during favorable daylight conditions.
  • Postpone the work if the weather is windy, foggy, rainy or inclement.
• Your pressure washer is a one-person machine.
  • Do not allow other persons in the general work area.
  • Bystanders, especially children, and animals should not be allowed in the area where it is in use.
  • Switch off the motor immediately if you are approached.
• To reduce the risk of injury to bystanders and unauthorized users:
  • Never leave the pressure washer unattended when it is connected to the power supply.
  • Switch off the pressure washer and disconnect from the power supply during work breaks and any other time the pressure washer is not in use.
• Sparks generated from the operation of the pressure washer may be capable of igniting combustible gases, liquids, vapors, dusts or other combustible materials and substances. To reduce the risk of fire and explosion:
  • Never operate the pressure washer in a location where combustible gases, liquids, vapors, dusts or other combustible materials and substances are present.
  • Read and follow recommendations issued by government authorities (e.g., CCOHS) for identifying and avoiding the hazards of combustible gases, liquids, vapors, dusts or other combustible materials and substances.
• Spraying certain materials with the water jet may produce dust or a mist containing particulate matter capable of causing respiratory disease, cancer, birth defects and other serious harm.
  • Never spray any surface containing lead paint.
  • Never spray asbestos-containing materials such as asbestos cement or asbestos siding. Hazardous, breathable asbestos fibers may be released in addition to the dirt.
  • Consult governmental agencies such as ECCC, CCOHS and PHAC and other authoritative sources on hazardous materials if you are unfamiliar with the risks associated with the particular substances you are spraying.
• Inhalation of certain dusts, especially organic dusts such as mold or pollen, can cause susceptible persons to have an allergic or asthmatic reaction. Substantial or repeated inhalation of dust or other airborne contaminants, especially those with a smaller particle size, may cause respiratory or other illnesses.
  • Control dust and mists at the source where possible.
  • To the extent possible, operate the pressure washer so that the wind or operating process directs any dust, mist or other particulate matter raised by the pressure washer away from the operator.
  • When respirable dust or other particulate matter cannot be kept at or near background levels, always wear a respirator that is approved by PHAC and rated for worksite-specific conditions. Follow the recommendations of governmental authorities (e.g., CCOHS/PHAC) and occupational and trade associations.
• Breathing asbestos dust is dangerous and can cause severe or fatal injury, respiratory illness or cancer, including mesothelioma. The use and disposal of asbestos-containing products is strictly regulated by CCOHS and ECCC.
  • Stop work immediately and contact the relevant state and local authorities and/or ECCC, your employer or local CCOHS representative if you have reason to believe that you might be disturbing asbestos.

Operating Instructions

• In the event of an emergency:
  • Switch off the motor immediately and disconnect the pressure washer from the power supply.
• To reduce the risk of fire/explosion resulting in serious or fatal injury or property damage:
  • Never spray flammable or combustible liquids.
  • Never draw fluids into the pump that contain solvents or undiluted acids (e.g., gasoline, heating oil, paint thinner or acetone).
• Because of the high pressure and spray velocity, fluids can penetrate the skin and cause fluid injection and/or severe injury.
  •
    Never direct the high-pressure jet toward yourself or other persons, not even to clean clothing or shoes.
  • Do not direct the high-pressure jet toward animals.
  • Keep hands, feet and other parts of your body away from the water jet at all times.
  • Do not direct the high-pressure jet into places you cannot see.
  • Switch off the pressure washer, relieve system pressure and lock the spray gun trigger before changing or adjusting any spray nozzle or accessory.
  • If an accident does occur and the spray appears to have penetrated the skin, seek emergency medical care. Do not treat as a simple cut.
• To reduce the risk of property damage or serious personal injury:
  • Start work at the greatest effective distance from the surface being cleaned. Do not move so close that the surface is damaged by the force of the spray.
  • Be especially careful when spraying softer materials such as fabric.
  • Use caution when directing spray toward fragile materials such as glass. It could shatter.
• This pressure washer was designed for use with water alone or with a detergent specifically designed and approved for use with pressure washers. Use of unsuitable detergents or cleaning agents can cause personal injury and damage the pressure washer and/or the surface being cleaned.
  • Always use the detergent in the dosage specified in the detergent manufacturer's instructions for proper preparation and dilution, as well as safe use and disposal.
• Chemical detergents may contain harmful (toxic, caustic, irritant), flammable or explosive substances. They are potentially harmful and can cause skin and eye irritation, chemical burns and other serious personal injury.
  • Avoid contact with skin and eyes.
  • In the event of accidental contact, immediately rinse the contact area thoroughly with plenty of clean water.
  • If fluid gets into your eye(s): Do not rub. Rinse water over the open eye(s) for at least 15 minutes and seek medical attention.
• Running the pressure washer without water will cause the pump to overheat, which may result in permanent damage.
  • Always connect and turn on the water supply to the pump before starting the motor.
  • Do not operate the pressure washer without water.

• To reduce the risk of short-circuiting, fire and electrocution:
  • Never direct the high-pressure jet toward the pressure washer itself or any of its components.
  •
    Never direct the spray at electrical appliances and equipment, sockets or power cords.
  • Never spray near electrical outlets or other power sources.
  • Never use your pressure washer if the casing around the motor is cracked or damaged.

Maintenance, Repair and Storage

Warnings and Instructions

• There are no user-authorized repairs for the pressure washer. To reduce the risk of fire, electric shock or other personal injury and property damage:
  • Users may carry out only the cleaning and maintenance operations described in this manual.
  • Strictly follow the cleaning and maintenance instructions in the appropriate sections of this instruction manual.
  • STIHL recommends that all repair work be performed by authorized STIHL servicing dealers.
• Unintentional starting may result in personal injury or property damage. To reduce the risk of personal injury and property damage from unintentional starting:
  • Switch off the pressure washer, disconnect it from the power supply, turn off the water supply and squeeze the spray gun trigger until the pressure in the system has been fully released. Then, lock the spray gun trigger before inspecting the pressure washer or carrying out any cleaning, maintenance
  • or repair work, before storing, and any other time it is not in use.
• Use of parts that are not authorized or approved by STIHL may cause serious or fatal injury or property damage.
  • STIHL recommends that only identical STIHL replacement parts be used for repair or maintenance.
  • If using a replacement or accessory highpressure hose, ensure that it is rated for the maximum PSI of the pressure washer.
  • If using a replacement spray gun or lance, or any other spray accessory, ensure that it is rated for the maximum PSI of the pressure washer.
• To reduce the risk of electric shock:
  • Ensure that the insulation of the power supply cord and plug are in good condition and show no signs of aging (brittleness), wear or damage.
  • Never use your pressure washer if the casing around the motor is cracked or damaged.

MOVING AND STORAGE INSTRUCTIONS

• Improper storage can result in unauthorized use, damage to the pressure washer and an increased risk of fire, electric shock and other personal injury or property damage.
  • Disconnect the pressure washer from the power supply before storing.
  • Never store the pressure washer with the plug of the power supply cord connected to an electrical outlet.
  • Store the pressure washer indoors in a dry, secure place that cannot be accessed by children or other unauthorized users.
  • Drain the detergent spray set or secure it so that it cannot topple over or spill.
  • Do not allow the unit to be used or stored in freezing temperatures.
  • If the pressure washer must be transported or stored in freezing conditions, the pump must be filled with antifreeze to prevent cracking due to water expansion.

SAVE THESE INSTRUCTIONS!

Before Starting Work

Preparing the Pressure Washer for Operation

Before starting work:

• Clean the water filter, if necessary.
• Place the pressure washer on flat and firm ground or other solid surface in an open area.
• Unroll the high-pressure hose completely from the hose reel.
• Connect the spray gun and lance.
• Insert the spray nozzle.
• If desired, add detergent.
• Connect the water supply.
• Connect the power supply cord to a properly installed electrical outlet that matches the voltage and electrical frequency stated on the pressure washer's rating plate.

Assembling the Pressure Washer

Assembling Parts and Accessories

To reduce the risk of severe injury from high pressure spray, always switch off the pressure washer, shut off the water supply, relieve any remaining pressure in the system and lock the spray gun trigger before attempting to assemble the pressure washer or spray attachment.

Crank Handle

• Push the crank handle (1) into the recess (2). The crank handle (1) audibly engages.

Detergent Spray Set

• Insert the detergent spray set (1).

Nozzles and cleaning needle

• Open the cover (1).
• Insert the fan-jet nozzle (2) and rotary-jet nozzle (3).
• Insert the cleaning needle (4).

Adjusting the Handle

Pulling out the Handle

To pull out the handle:

• Press the release button (1) and pull out the handle (2).
• Release the release button (1) and pull out the handle (2) until it audibly engages.

Pushing in the Handle

To push in the handle:

• Press the release button (1) and push in the handle (2).
• Release the release button (1) and push in handle (2) until it audibly engages.

Spray Gun and Lance

Connecting the Spray Gun and Lance

To connect the spray gun and lance:

• Switch off the pressure washer.
• Disconnect the pressure washer from the power supply.
• Shut off the water supply.
• Lock the spray gun trigger.
• Remove all sand and debris from the connections and couplings.

• Push the high-pressure hose (1) into the spray gun (2).
• If the high-pressure hose is difficult to push into the spray gun, apply a food-safe fitting grease to the sealing surface on the high pressure hose.

• Attach the spray lance (1) to the spray gun (2).
• Turn the spray lance until it engages.
• If the spray lance hose is difficult to attach to the spray gun, apply a food-safe fitting grease to the sealing surface on the spray lance.

Removing the Spray Gun and Lance

To reduce the risk of severe injury from highpressure spray, always switch off the pressure washer, shut off the water supply, relieve any remaining pressure in the system and lock the spray gun trigger before attempting to remove or disassemble the spray gun or lance.

To remove the spray gun and lance:

• Switch off the pressure washer.
• Disconnect the pressure washer from the power supply.
• Shut off the water supply.
• Pull the spray gun trigger to relieve pressure.
• Lock the spray gun trigger.

• Press the spray lance (1) against the spray gun (2) and turn until it stops.
• Remove the spray lance (1) from the spray gun (2).

• Press down and hold the locking lever (1).
• Pull out the high-pressure hose (2).

Inserting and Removing the Spray Nozzle

Inserting the Spray Nozzle

To reduce the risk of severe injury from unintended spraying, switch off the pressure washer, relieve system pressure and lock the spray gun trigger before attempting to adjust or change a spray nozzle or other accessory.

If the high-pressure nozzle is not secure, it can fly out of the spray lance during operation and cause injury. Confirm that the nozzle is fixed securely in the quick-connect coupling.

The pressure washer is offered with two highpressure nozzles that can be connected to the spray lance.

To insert the spray nozzle:

• Switch off the pressure washer.
• Pull the spray gun trigger to relieve pressure.
• Lock the spray gun trigger.
• Remove all sand and debris from the connections and couplings.

• Attach the high pressure nozzle (1) to the spray lance (2).
• Push the high pressure nozzle (1) as far as it will go into the spray lance (2).
• Once inserted, turn the high pressure nozzle clockwise until it engages.
• If the high pressure nozzle is difficult to insert into the spray lance, apply a food-safe fitting grease to the sealing surface on spray lance.

Removing the Spray Nozzle

To reduce the risk of severe injury from unintended spraying, switch off the pressure washer, relieve system pressure and lock the spray gun trigger before attempting to adjust or change a spray nozzle or other accessory.

To remove the spray nozzle:

• Switch off the pressure washer.
• Pull the spray gun trigger to relieve pressure.
• Lock the spray gun trigger.

• Press the high pressure nozzle (1) against the spray lance (2) and pull out the nozzle(1).

Connecting the Water Supply

Connecting the Pressure Washer to the Mains Water Supply

Make sure the pressure washer is switched off and disconnected from the power supply before connecting to or disconnecting from the mains water supply

Connecting the water filter

If the pressure washer is to be operated with sandy water or with water from cisterns, a water filter must be connected in-line between the water hose and the pressure washer. The water filter filters sand and dirt out of the water and thus protects the components of the pressure washer from damage.

To connect the water filter

• Unscrew the coupling (1).
• Screw the water filter (2) onto the connector (3) and tighten by hand.
• Screw the coupling (1) onto the water filter (2) and tighten by hand.

Connecting the Water Hose

The water supply must meet the following requirements:

• Minimum length of water hose: 30 ft. (10 m)
• Maximum water inlet pressure: 145 psi (1 MPa / 10 bar)

To connect the pressure washer to the mains water supply:

• Switch off the pressure washer.
• Disconnect the pressure washer from the power supply.
• Remove all sand and debris from the connections and couplings.
• Connect the water hose to the water supply.
• Fully open the tap to flush any sand or dirt from the hose.
• Shut off the water supply.

• STIHL recommends attaching the water filter (2).
  The water filter helps keep sand and dirt out of the pump, thereby helping to protect components from damage.
• Screw the coupling (1) onto the pressure washer or water filter (2) and tighten by hand.
• Connect the water hose (4).
• Completely unroll the high-pressure hose.
• If the spray lance is attached to the spray gun: remove the spray lance.
• Turn on the water supply.
• Pull the spray gun trigger until a steady, even water jet is delivered from the spray gun.
• Switch off the pressure washer.
• Lock the spray gun trigger.
• Connect the spray lance.
• Insert the nozzle.

NOTICE
Running the pressure washer without water will cause the pump to overheat, which may result in permanent damage. Always connect and turn on the water supply to the pump before starting the motor. Do not operate the pressure washer without water.

Disconnecting the Water Hose

To disconnect the water hose:

• Switch off the pressure washer.
• Disconnect the pressure washer from the power supply.
• Shut off the water supply.
• Pull the spray gun trigger to relieve pressure.
• Lock the spray gun trigger.

• Remove the water hose (4) from the coupling (1) onto the pressure washer or water filter (2).

Connecting the pressure washer to another water source

The pressure washer can draw water from water butts and cisterns and from running or stagnant bodies of water.

So that the water can be drawn in, the height difference between the pressure washer and the water source should not exceed the maximum suction lift (a).
The appropriate STIHL suction set must be used. The suction set includes a water hose with a special coupling.
Depending on the market, the appropriate STIHL suction set may be supplied with the pressure washer.

Connecting the water filter

If operating the pressure washer with sandy water from water butts, cisterns or running or stagnant bodies of water, a water filter must be connected in-line between the water hose and the pressure washer.

To connect the water filter:

• Unscrew the coupling (1).
• Screw the water filter (2) onto the connector (3) and tighten by hand.

Connecting the Water Hose

To connect the pressure washer to another water source:

• Switch off the pressure washer.
• Disconnect the pressure washer from the power supply.
• Remove all sand and debris from the connections and couplings.

• Fill the water hose (5) with water until there is no air left in the water hose.
• Screw the coupling (4) onto the water filter (2) and tighten by hand.
• Suspend the suction cup (6) in the water source so that the suction cup (6) does not touch the bottom.
• Completely unroll the high-pressure hose.
• If the spray gun is attached to the high-pressure hose: remove the spray gun.
• Hold the high-pressure hose downward.
• Switch on pressure washer and run it until an even jet of water is delivered by the high-pressure hose.
• Switch off the pressure washer.
• Attach spray gun to the high-pressure hose.
• Squeeze and hold down spray gun trigger.
• Switch on the pressure washer.

Switching the Pressure Washer On and Off

Switching On

Never operate your pressure washer if it is damaged, improperly adjusted or maintained, not completely and securely assembled or not functioning properly.
To reduce the risk of personal injury, always wear proper clothing and protective apparel, including proper eye protection, when operating your pressure washer.

Before switching on:

• Make sure you have a secure and firm footing.
• Stand upright.
• Always hold and operate the pressure washer with one hand firmly on the spray gun and your other hand firmly on the spray lance. Always hold the pressure washer with two hands in this manner.

To switch the pressure washer on:

• Set the switch to the I position.

NOTICE:
When the pressure washer is switched on, voltage fluctuations may occur under unfavorable mains conditions with a power line impedance greater than 0.15 Ohm. The voltage fluctuations may negatively affect other connected electrical appliances.

Switching Off

To switch the pressure washer off:

• Set the switch to the 0 position.

During Operation

Unrolling the High-Pressure Hose

• Completely unroll the high-pressure hose (1).

NOTICE:
Remove the high-pressure hose from the hose reel before spraying. If the high-pressure hose is not completely unrolled from the hose reel, it may be damaged by high-pressure.

Activating and Locking the Spray Gun Trigger

The pressure washer is designed for two-handed operation.

Activating the spray gun trigger

To pull the spray gun trigger:

• Slide the retaining latch (1) to the position.
• Press and hold the spray gun trigger (2). The high-pressure pump starts up automatically and water flows out of the nozzle.

Locking the spray gun trigger

To lock the spray gun trigger:

• Release the spray gun trigger (2). The high-pressure pump switches off automatically when you release the spray gun trigger. Water stops flowing out of the nozzle but the pressure washer remains switched on.
• Slide the retaining latch (1) to the position to lock the spray gun trigger.

Adding Detergents

Use of unsuitable detergents or cleaning agents can damage the pressure washer or surface being cleaned and may result in personal injury. Always read and follow the detergent manufacturer's warnings and instructions regarding proper preparation, dilution, safe use and disposal.

Detergents can improve cleaning effectiveness.
Use the detergent spray set to add detergents:

• Always read and follow instructions provided by the manufacturer of the detergent before starting work.
• STIHL recommends soaking surfaces with water before applying detergent.
• Fill the detergent bottle (1) with up to 16.9 oz. (500 ml) of detergent.
• Screw the detergent nozzle (2) onto the detergent bottle and tighten firmly by hand.

• Attach the detergent spray set (4) to the spray lance (3).
• Spray the detergent onto the surface to be cleaned.
• When applying detergent, start at the bottom of the surface and work upwards. Do not allow the detergent to dry.

After applying detergent:

• Switch off the pressure washer.
• Relieve system pressure.
• Lock the spray gun trigger.
• Remove the detergent spray set.
• Re-attach the fan-jet nozzle or rotary-jet nozzle.
• Spray the surface until it is clean and any remaining detergent is washed away.
• When rinsing off detergent, start at the top of the surface and work down.

Cleaning

To reduce the risk of personal injury, never work with the pressure washer in the rain.
Always wear proper clothing and protective apparel, including proper eye protection, when operating your pressure washer.
Keep bystanders away from the work area.
Work carefully and maintain proper con=trol of the pressure washer.

To reduce the risk of fluid injection and/or severe injury, keep hands, feet and other parts of your body away from the water jet at all times and never direct the high-pressure jet toward yourself or other persons, not even to clean clothing or shoes.
Do not direct the high-pressure jet toward animals.

Depending on the application, the following nozzles may be used:

• Fan-jet nozzle: The fan-jet nozzle is designed for cleaning larger areas.
• Rotary-jet nozzle: The rotary nozzle is designed for removing stubborn dirt.
  • If you want to remove stubborn dirt, reduce the distance between the nozzle and the surface.
  • If you want to remove dirt from painted, wooden or other potentially sensitive surfaces, increase the distance between the nozzle and the surface.

To adjust the fan jet nozzle:

To reduce the risk of injury from high-pressure spray, always switch off the pressure washer, relieve any remaining pressure in the system and lock the spray gun trigger before attempting to insert, adjust or remove the spray nozzle.

• Switch off the pressure washer.
• Relieve system pressure.
• Lock the spray gun trigger.

• Rotate the fan-jet nozzle in the (+) direction to increase the working pressure.
• Rotate the fan-jet nozzle in the (-) direction to reduce the working pressure.

To clean:

• Before starting work, direct the water jet at an inconspicuous area of the surface and check that the surface is not damaged.
• Work at a distance that allows you to effectively clean the surface without damaging it.
• Adjust the fan-jet nozzle and distance from the surface to be cleaned to ensure the surface will not be damaged by the spray.

• Move the spray attachment evenly along the surface to be cleaned.
• Move forward slowly in a controlled manner.

After Finishing Work

Preparing for Transportation or Storage

To prepare the pressure washer for transportation or storage:

• Switch off the pressure washer.
• Disconnect the pressure washer from the power supply.
• Disconnect the pressure washer from the water supply.
• Press the spray gun trigger to relieve any remaining pressure in the system.
• Lock the spray gun trigger.
• Disconnect the water hose.
• Remove and clean the nozzle and spray lance.
• Remove the spray gun and let the rest of the water run out of the spray gun.
• If the pressure washer will be exposed to freezing temperatures, protect it with antifreeze or take other measures outlined below.
• Clean the pressure washer.

• Turn the bracket (1) upwards.
• Roll up the power supply cord (2) and hang it onto the brackets (1).
• Secure the power supply cord with the clip (3).
• Insert the fan-jet nozzle (4) and rotary-jet nozzle (5).

• Insert the detergent spray set (6).

• Roll up the high-pressure hose (7) evenly.

• Place the spray attachment in one of the holders (8).

Protecting the Pressure Washer in Winter Conditions

Removing Water from the System

To remove any remaining water from the system:

• Switch off the pressure washer.
• Disconnect the pressure washer from the power supply.
• Shut off the water supply.
• Relieve system pressure.
• Remove the spray gun and lance.
• Disconnect the water hose.
• Drain the water out of the high-pressure hose and water hose.
• Connect the power supply cord to a properly installed electrical outlet that matches the voltage and electrical frequency stated on the pressure washer's rating plate.
• Switch on the pressure washer and let the pump run for up to 30 seconds until the water flow stops. Remaining water will be eliminated from the system.
• Switch off pressure washer and disconnect it from the power supply.

NOTICE:
Freezing temperatures can damage components of the pressure washer. STIHL recommends storing the pressure washer indoors in a dry room where it is protected from freezing temperatures. Relieve all system pressure and make sure all water is eliminated from the pump system and hoses before storing.

Protecting the Pressure Washer with Antifreeze

When using antifreeze to protect your pressure washer in winter conditions, observe all warnings and instructions provided by the manufacturer to reduce the risk of environmental contamination or severe personal injury from ingestion.

If the pressure washer is to be exposed to freezing temperatures, it should be protected by a glycol-based antifreeze. The antifreeze prevents water inside the pressure washer from freezing and causing damage to the pressure washer.

To protect the pressure washer with antifreeze:

• Remove the spray gun and lance
• Drain the water out of the high-pressure hose.
• Connect the spray gun and lance.
• Connect the shortest possible water hose to the pressure washer. The shorter the water hose, the less antifreeze is needed.
• Point the spray lance downward and wait until all the water has flowed out of the system.
• Pour antifreeze into a clean container.
• Connect a suction hose to the water inlet of the high-pressure pump and place the other end of the hose in the container of antifreeze.
• Squeeze and hold the spray gun trigger.
• Switch on the pressure washer.
• Hold down the spray gun trigger until an even jet of antifreeze is delivered from the spray gun. Keep the spray gun into the container and follow the antifreeze supplier's instructions for avoiding environmental release.
• Press and release spray gun trigger several times.
• Switch off the pressure washer and disconnect it from the power supply.
• Detach the spray gun, roll up the high-pressure hose and allow antifreeze to run into the container.
• Detach the water hose and allow antifreeze to run into the container.
• Collect and dispose of the antifreeze in accordance with the manufacturer's specifications and all federal, state and local laws, regulations and ordinances.

NOTICE:
Freezing temperatures can damage components of the pressure washer. STIHL recommends storing the pressure washer indoors in a dry room where it is protected from freezing temperatures. Relieve all system pressure and make sure all water is eliminated from the pump system and hoses before storing.

Transporting

Transporting the Pressure Washer

When transporting the pressure washer:

• Pull the pressure washer by the pushbar (1), or carry the pressure washer by the pushbar (1) and carrying handle (2).
• When transporting the pressure washer in a vehicle, ensure that the pressure washer is standing upright, lying on its back, secured with lashing straps, belts or a net and cannot topple over or move.

Storing

Storing the Pressure Washer

Store the pressure washer indoors in a dry, secure place that is inaccessible to children and other unauthorized users. Improper storage can result in unauthorized use and damage to the pressure washer.

When storing the pressure washer for thirty days or longer:

• Clean the pressure washer.
• Secure and position the pressure washer to prevent turnover, impact and damage.
• Store the pressure washer indoors in a dry and secure location, out of the reach of children and other unauthorized persons.
• If the pressure washer cannot be stored in a room where it is protected from freezing temperatures, protect the pressure washer as outlined above.

NOTICE:
Freezing temperatures can damage components of the pressure washer. STIHL recommends storing the pressure washer indoors in a dry room where it is protected from freezing temperatures. Relieve all system pressure and make sure all water is eliminated from the pump system and hoses before storing.

Cleaning

Cleaning the Pressure Washer

NOTICE:
Before carrying out any of the cleaning work specified in this chapter, take certain measures to reduce the risk of personal injury from unintended activation: switch off the pressure washer and disconnect the unit from the power supply. Relieve all system pressure by pulling the trigger switch and lock the spray gun trigger.

To clean the pressure washer:

• Clean the pressure washer's polymer components, couplings and connectors with a slightly dampened cloth. Do not use abrasives or solvents that may damage the pressure washer's polymer components.
• Do not use a pressure washer to clean the unit or otherwise spray it with water or other liquids.

Cleaning the Nozzle and Spray Lance

A clogged high pressure nozzle can cause excessive pressure to build in the pump. Clean the high-pressure nozzle if it becomes clogged.

To clean the nozzle and spray lance:

• Rinse the nozzle and spray lance under running water and dry them with a cloth.

• If the nozzle is blocked, use the cleaning needle to clear the opening.

Cleaning the Water Intake Screen

To clean the water intake screen:

• Unscrew the coupling (1).
• Pull out the water intake screen (2).
• Rinse the water intake screen under warm running water.
• Re-insert the water intake screen.
• Screw on the coupling and tighten it by hand.

Cleaning the Water Filter

To clean the water filter:

• Remove the gasket (1) from the fastener (2).
• Unscrew the fastener from the filter housing (5).
• Remove the gasket (3) from the fastener.
• Remove the filter element (4) from the filter housing.
• Rinse the gaskets, the fastener and filter under warm running water.
• Grease the gaskets with food-safe fitting grease.
• Re-assemble the water filter.

Inspection and Maintenance

Inspection and Maintenance Chart

Inspecting and Maintaining the Pressure Washer

Before carrying out any of the maintenance work specified in this chapter, take certain measures to reduce the risk of personal injury from unintended activation: switch off the pressure washer and disconnect the unit from the power supply. Relieve all system pressure and lock the spray gun trigger.

Proper maintenance of the pressure washer includes the following activities:

• Inspecting hoses, couplings, connectors and gaskets periodically and having a worn component replaced.
• Having worn, missing or damaged safety labels replaced by an authorized STIHL servicing dealer.

The pump is pre-filled with pump oil and does not require replacement or maintenance.

Lubricating the Gaskets

To lubricate the gaskets:

• Grease the gaskets (1) with food-safe fitting grease.

Troubleshooting Guide

Before troubleshooting, switch off the pressure washer and disconnect the unit from the power supply.
Relieve all system pressure by pulling the trigger switch. Lock the spray gun trigger.

Condition	Possible Cause	Remedy
The pressure washer does not start although the spray gun trigger is pulled.	The power supply cord is not connected to an electrical outlet.	Connect the power supply cord to a properly installed electrical outlet.
	The electric motor is too warm.	Allow the pressure washer to cool at ambient temperatures for approximately 5 minutes. Clean the nozzle.
The pressure washer does not start when switched on. The electric motor hums.	The mains voltage is too low.	Pull and hold the spray gun trigger and switch on the pressure washer. Switch off other loads connected to the same electrical circuit.
The pressure washer switches off while in operation.	The power supply cord is not connected to an electrical outlet.	Connect the power supply cord to a properly installed electrical outlet.
	The electric motor is too warm.	Allow the pressure washer to cool at ambient temperatures for approximately 5 minutes. Clean the nozzle.
The high-pressure pump repeatedly switches on and off without pulling the spray gun trigger.	There is a leak in the high-pressure pump, high-pressure hose or spray attachment.	Have the pressure washer inspected and repaired by an authorized STIHL servicing dealer.
The water pressure fluctuates or drops.	There is not enough water.	Open the water tap fully. Make sure that a sufficient quantity of water is available.
	The nozzle is blocked.	Clean the nozzle.
	The water intake screen or water filter is blocked.	Clean water intake screen and water filter.
	The high-pressure pump, highpressure hose or spray attachment is leaking or faulty.	Ask a STIHL servicing dealer to inspect the pressure washer.
The shape of the water jet has changed.	The nozzle is blocked.	Clean the nozzle.
	The nozzle is worn.	Insert a new nozzle.
Detergent is not being drawn in.	The detergent bottle is empty.	Fill the bottle with detergent.
	The nozzle of the detergent spray set is blocked.	Clean nozzle of the detergent spray set.
The connections of the pressure washer, highpressure hose, spray gun or spray lance are stiff.	The gaskets of the connections have not been greased.	Grease the gaskets.

Specifications

STIHL RE 130 PLUS

For household use.

• Weight with spray attachment and high-pressure hose: approximately 20.3 kg (44.8 lbs).

Electrical

• Mains voltage: 120 V
• Frequency: 60 Hz
• Rated current: 12.1 A
• Rated power: 1450 W
• Classification: Class I (Protective Earthing)

High-Pressure Pump

• Rated Pressure: 9.5 MPa (1350 psi)
• Maximum Pressure: 14 MPa (2030 psi)
• Minimum water throughput: 5.9 l/min
• Maximum water throughput: 7.3 l/min
• Maximum suction height from a tank: 0.5 m (1.6 ft.)

Water Supply

• Minimum length of water hose: 10 m (30 ft.)
• Minimum pressure: 0.1 MPa (14.5 psi)
• Maximum pressure: 1 MPa (145 psi)
• Maximum water temperature: 40°C

Pressure-dependent data were measured at an inlet pressure of 0.3 MPa (44 psi).

Symbols on the Pressure Washer

Symbol	Explanation
A	Ampere
V	Volt
Hz	Hertz
kW	Kilowatt
t in max	Maximum water temperature in pressure mode
p	Rated Pressure
p max	Maximum Pressure
Q min	Minimum water throughput
m	Weight

Spray gun trigger is locked.

Spray Gun trigger is unlocked.

Drain the detergent spray set before transport or secure it so that it cannot topple over or spill.

STIHL products must not be disposed of in the household trash, but only in accordance with local, state and federal laws and regulations and as provided in this manual.

Engineering Improvements

STIHL's philosophy is to continually improve all of its products. As a result, engineering changes and improvements are made from time to time. Therefore, some changes, modifications and improvements may not be covered in this manual. If the operating characteristics or the appearance of your machine differs from those described in this manual, please contact your STIHL dealer or the STIHL distributor in your area for assistance.

Replacement Parts and Equipment

Genuine STIHL Replacement Parts

STIHL recommends the use of genuine STIHL replacement parts. Genuine STIHL parts can be identified by the STIHL part number, the logo and, in some cases, by the STIHL parts symbol . The symbol may appear alone on small parts.

Documents / Resources

References

• STIHL CANADA | STIHL

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Stihl RE 130 PLUS Manual
