STEP 2

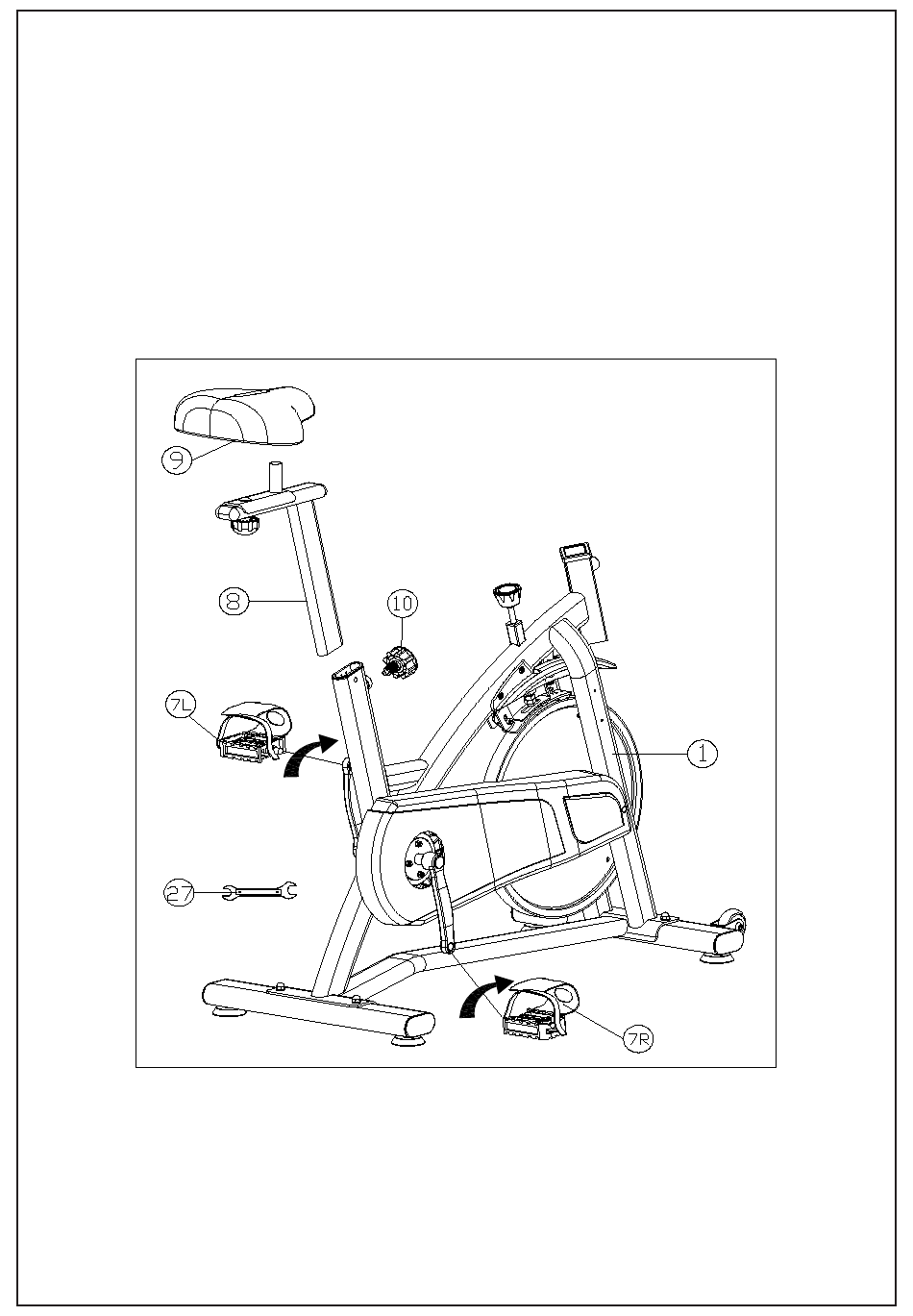

Fasten the front Get the Seat post (8) and inserted into the frame (1) and tightened with a
knob(10). and then put the seat (9) onto the seat post and screwed with a wrench(27).
Remove the pedal (7) and screw the foot pedal L into the left crank of
At last ,
the main frame (1), and the foot pedal R is screwed into the right crank.
note:
The right foot is installed clockwise
Left foot installation is counterclockwise
7
