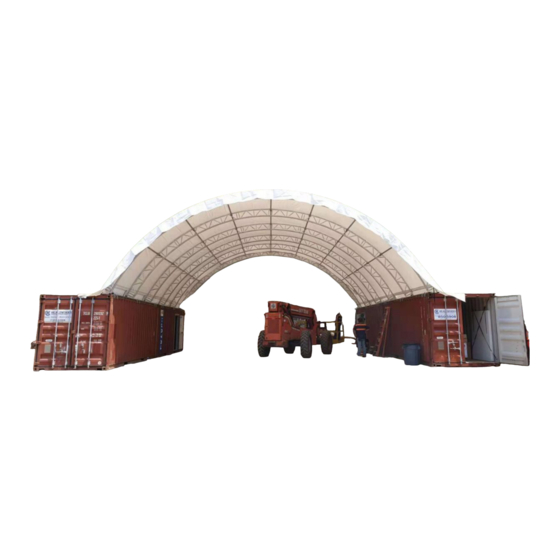

- Page 1 Shipping Container Roof Double Truss Round Style Model# C4060DTR 40’x60’x15’ (10’ arch space) Assembly Instructions...
-
Page 2: Equipment List
Equipment List Speed Wrench 22#.23#.24# Hammer (30lb) Rope (12#) Long Tape (50m) Hammer Drill*1 Lifter*2 Crane*1 Forklift*1 Protective equipment... - Page 3 ANCHORING THE CONTAINER Make sure you have: • Welder. • Cement. • Four 3” x 3” x 6 feet ¼” Square steel angle 1. As shown in the diagram 1, make a 3 ft deep hole right beside one of the front and opposite rear corners of the container, in which the 6ft square steel will be installed.
- Page 4 Highly Recommended 1. All container canopy covers need to be removed during windstorm of 60 mph, leaving frame assembled. Customer responsibility. 2. All container canopy covers need to be removed before a snowstorm of 1-2 inches (for single truss Shipping container roofs) and 3-4 inches (for double truss Shipping container roofs), leaving the frame assembled.
- Page 5 YOU MUST READ THIS DOCUMENT BEFORE YOU BEGIN TO ASSEMBLE THE SHELTER. Thank you for purchasing our shelter. When properly assembled and maintained, this product will provide years of reliable service. These instructions include helpful hints and important information needed to safely assemble and properly maintain the shelter.
- Page 6 40'x60'x15’ Parts List Part Qty/ Description Code Roof Top Truss Arch Upper Truss Arch Middle Truss Arch Lower Truss Arch Purlin Connection Plate for steel wire No.21 Base Plate (four corners with ratchet) Base Plate (inner with ratchet) Lower Tensioning Tube for Roof Cover, 2 sets (6+1) pcs/set Tube Clip with bolt M10x50 for support...
- Page 7 End Plug Belt for ratchet Knitting Rope for roof cover (4 bundles) 1 pack Roof Cover Duct Tape Expansion Bolt Turnbuckle Steel Wire Clamp Steel Wire...
-
Page 8: Installation Process
INSTALLATION PROCESS Note: Make sure to fix the container firmly before installing the shelter. A—BASE PLATES INSTALLATION Please refer to the diagram (Figure 1) to mark the position of base plates Figure 1 1. The measurement is done as the above figure 1 showing. Referring to the above diagram and confirm the place of base plates. - Page 9 B—FRAME INSTALLATION 1. Arch Installation: Find Truss Arches (No.1, 2, 3, 4) and Base Plate (No.7 & 8) and connect them by Bolt M8x70 (No.11). Purlins and Support Tubes...
- Page 10 2. When finish installing all arches, lift the arch to top of containers, and then adjust the distance between arches. Weld the base plate to container firmly. 3. Install Purlin (No.5) by Carriage Bolt M10x80 (No.12) and then the third arch and Purlins. In this turn, one arch and then purlin tubes.
- Page 11 Roof Cover Installation Now your assembly is completed.
