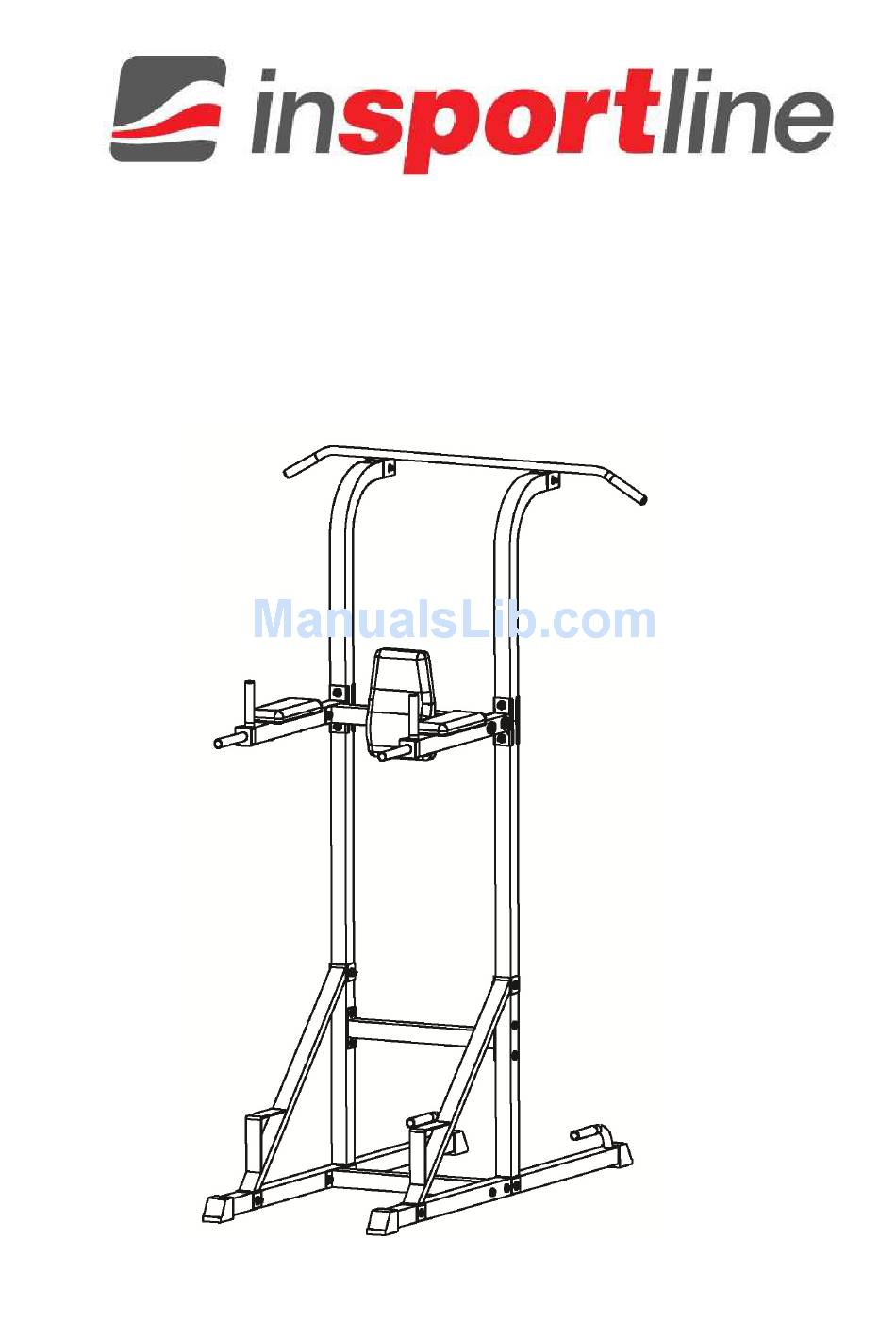

- Page 1 USER MANUAL – EN IN 7181 Chin up rack inSPORTline Power Tower PT200 AM-102 Assembly Instruction...
-
Page 2: Important Safety Guide
IMPORTANT SAFETY GUIDE Safety Tips Safety always comes first. Please keep the following points in mind at all times. Read and follow the Safety Instructions completely before using your Power System. Failure to read and follow any item in the Safety Instructions can result in serious bodily injury. Keep the Owner's Manual and this Assembly Guide in a safe place. -
Page 3: Exploded Drawing
EXPLODED DRAWING... -
Page 4: Parts List
PARTS LIST Item # Description Q'ty Base Pipe Stand Pipe Top Flex Pipe High Draught False work Frame Connect Pipe Ancon Pipe Lift Ancon Pipe Right Hand Pipe Back Cushion Pipe Connector Piece Square Pulg Handle Bar Grip Ellipse Outside Plug Adorn Cover M10*70 Hex Bolt M10*75 Hex Bolt... -
Page 5: Assembly Step
ASSEMBLY STEP STEP 1 * Join together the Base Pipe (1) with the Connect Pipe (6), securing them with M10*70 Hex Bolt (15), ∅20*∅10.3*1.5T Washer (21) and M10 Nylon Nut (20). * Join the Stand Pipe (2) with the Base Pipe (1), securing them with M10*70 Hex Bolt (15), ∅20*∅10.3*1.5T Washer (21) and M10 Nylon Nut (20), then join the Connect Pipe (6) with the Stand Pipe(2),securing them with M10*70 Hex Bolt(15),∅20*∅10.3*1.5T Washer (21) and M10 Nylon Nut (20). - Page 6 ASSEMBLY STEP STEP3 * Connect the Ancon Pipe (7L) and the Top Flex Pipe (3) with the Connector Piece(10), securing them with M10*75 Hex Bolt(16), ∅20*∅10.3*1.5T Wash (21) and M10 Nylon Nut (20) as shown. Join the Ancon Pipe (7R) as the Ancon Pipe (7L). * Join the Back Cushion Pipe (9) with the Ancon Pipe (7), securing them with M10*75 Hex Bolt (16), ∅20*∅10.3*1.5T Washer (21) and M10 Nylon Nut(20) as shown.
