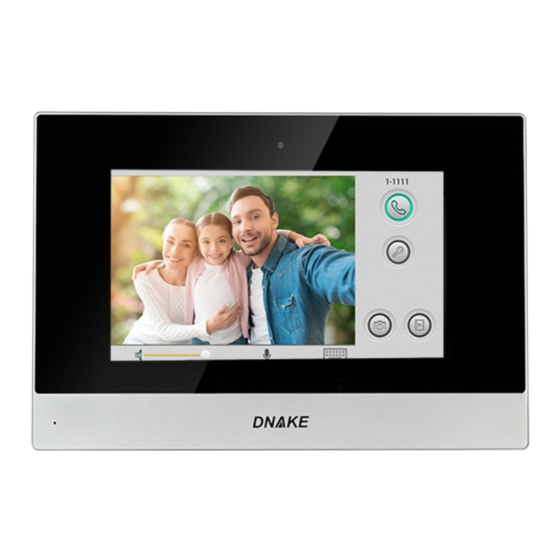

Dnake 902M S8 User Manual

Indoor monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
902M S8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 902M S8 and is the answer not in the manual?

Questions and answers

Related Manuals for Dnake 902M S8

Summary of Contents for Dnake 902M S8

  • Page 1 902M S8...
  • Page 2 REMARK Please follow the user manual for correct installation and testing. If there is any doubt please call our tech-supporting and customer center. Our company applies ourselves to reformation and innovation of our products. No extra notice for any change. The illustration shown here is only for reference.

  • Page 3: Table Of Contents

    CATALOG Product Features............1 Technical Parameters..........1 Package Contents ............2 Pictures..............2 Operations..............3 1. VOIP ..............4 2. Security...............11 3. Smart ..............16 4. Service..............20 5. About 902 ............21 Web Settings ............22 System Configuration ..........26 System Diagram .............27 Installation ..............29 Troubleshooting .............30 Safety Instructions ..........31...

  • Page 4: Product Features

    PRODUCT FEATURES 1. Building intercom application: VOIP: Support video call, monitoring, unlocking, VOIP communication and call record checking. Security: Support 8 alarm zones with 3 states, alarm zone and scene setup. Smart: Support smart home extension by RS485 communication. Others: Support Android systems applications. TECHNICAL PARAMETERS Voltage: DC 12V Rated power: 10W...

  • Page 5: Package Contents

    PACKAGE CONTENTS MODEL: 902M-S8 Indoor Monitor Quick Start Guide Screw PICTURES 7'' capacitive touch screen Speaker Microphone...

  • Page 6: Operations

    OPERATIONS Main menu: VOIP, Security, Smart, Service, Contacts, Calendar, Mediaplayer and About 902. Shortcut key: Elevator, Out, Unlock and Apps. 1.The main interface will remind user when there are missed calls, unread MSG and SMS. 2. The state of weather is synchronously updated by NTP. Status bar: Return, Main interface, Background program, Volume-,Volume+.

  • Page 7: Voip

    1.VOIP Clicking “VOIP” icon on the main interface, the system will enter the following interface: 1.1 Call Clicking “Call” icon, the system will enter the following interface: 1.1.1 Call unit resident Input 1-3 digits building No.+ “Building” + 2-digit Unit No. + “Unit” +4-digit room No., then click icon to call.
  • Page 8 When the call is answered, the system will enter into call state: 1. If there is a camera, the caller’s image will be displayed on the screen; 2. When the call is answered, the video will be uploaded into the indoor monitor.
  • Page 9 1.2 Monitor Clicking “Monitor” icon, the system will enter the following interface: Click “Door01” icon to switch the type of door station, then click icon to select the area you want to monitor, and click icon to monitor the door station or secondary door station. Click icon to end monitoring.
  • Page 10 refers to call-out record; refers to call-in record; refers to missed call record. It can save up to 64 records. Click icon to search for records. Select one record and click icon to call; click icon to delete it. Click icon to back-up.
  • Page 11 1.5 VOIP Clicking “VOIP” icon, the system will enter the following interface: Proxy: URL of sip proxy server, format in sip: ip or sip: realm name. Realm: the scope for the device, is the same with IP or realm name. Password: the password to access proxy server, offered by the administrator of sip proxy server.
  • Page 12 1.6.1 Intercom Check “Camera” , “Message” or “Auto answer” to enable corresponding function, then click “OK” icon. 1.6.2 Network Click “Network” icon to enter into the following interface: After using the DHCP , the router will automatically distribute IP address. Other settings are the same as the ones of intercom APP.
  • Page 13 123456). System password is used for system settings. 1.6.4 QR Code Click “QR Code” icon to enter into the following interface: Scanning the QR code with DNAKE smart life APP, it will be synchronized with the indoor monitor.

  • Page 14: Security

    2.Security Clicking “Security” icon on the main interface, the system will enter into the following interface: 2.1 ON/OFF Clicking “ON/OFF” icon, the system will enter into the following interface: 2.1.1 ON Clicking “Out”, “Home”, or “Sleep” icon to activate the alarm sensors, the icon on the main interface will light with a beep and this icon will always light up.
  • Page 15 2.2 Camera Clicking “Camera” icon, the system will enter into the following interface: Click “ ” or “ ” button to select the camera, and then click to monitor the IP camera. During monitoring, to cancel monitoring, click to stop it. 2.2.1 IP Camera Setting Login the webpage of indoor monitor by username: user, password:1234, then you can access the following webpage:...
  • Page 16 Fill in with the RTSP format: rtsp:// user: password@ Camera IP. IP is the IP address of your IP Camera.Then you can monitor IP Camera in Security menu on your indoor monitor: Clicking “Camera” icon, the system will enter into the following Click “...
  • Page 17 2.3.1 Alarm Type Clicking type input box, it will pop up a dialog box as the following. In this interface, you can set alarm Type as: Normal, Emergency or 24H. 24H and Emergency type are always active. 2.3.2 Mode Clicking mode setting box, it will pop up a dialog box as the following interface.
  • Page 18 2.3.3 Delay Time It refers to the delay time of giving an alarm. Clicking Delay setting box, it will pop up a dialog box as the following interface with selections: 0s, 5s, 15s, 20s, 25s, 40s or 60s as the desired delay time. For example, select the delay time: 5s.
  • Page 19 When alarm sensor is triggered, the indoor monitor will make a loud alarm sound. The system will enter into the following interface and send alarm message to master station(if your system is installed with management center): You can see the No. and sensor type in red showed at the top of interface. For example: “1:Smoke”...
  • Page 20 2.4 Scene Clicking “Scene” icon, the system will enter into the following refers to Alarm ON, refers to Alarm OFF. To set the sensor of alarm stations, you can click the corresponding station with icon. Click "Activation Time" to choose the corresponding time. The options of activation time include NONE, 30s, 40s, 60s, 100s and 300s.

  • Page 21: Smart

    3. Smart Clicking “Smart” icon on the main interface, the system will enter into the following interface: 3.1 Scene Clicking “Scene” icon, the system will enter into the following interface: Scene mode includes: Home, Out , Movie, Party or Sleep. 3.2 Light Clicking “Light”...
  • Page 22 Set the light for corresponding room, such as Master, Sub, Living or Dining Room (see the room settings for details). Up to 8 lights can be set in every room. Click the corresponding light icon, then you can control ON/OFF of the light.
  • Page 23 3.4 Curtain Clicking “Curtain” icon, the system will enter into the following interface: Clicking “Close” icon, the curtain will be closed; clicking “Open” icon, the curtain will be open; clicking “Pause” icon, the curtain will be paused. 3.5 Elevator Clicking “Elevator” icon, the system will enter into the following interface: Click icon to control the elevator to go up and down.
  • Page 24 3.6 Settings Clicking “Settings” icon, the system will enter into the following interface: 3.6.1 Room setting You can add, delete room data and change the room type. The room types include: Living, Dining, Master, Sub, Study, Kitchen and Corridor. There are max. 20 rooms you can set. 3.6.2 Light setting Clicking “LIGHT”...

  • Page 25: Service

    4. Service Clicking “Service” icon on the main interface, the system will enter into the following interface: BROWSER 4.1 SMS Clicking “SMS” icon, the system will enter into the following interface: Note: only clicking the management software on PC which is usually located at guard center, can indoor monitor receive the message sent by Click icon to page up;...

  • Page 26: About 902

    4.2 BROWSER Clicking “BROWSER” icon, the system will enter into the web page linked with the indoor monitor (the function should be supported by external network). You can also set the default link for “COOK”, “MAP”, “GOV” and “MALL” in the wepbage on indoor monitor.

  • Page 27: Web Settings

    WEB SETTINGS Please refer to 1.6.2 to view IP address. Connect the indoor monitor and computer by network switch. Input the indoor monitor’s IP address in the browser, then input user name and password (the default user name is “admin”, the password is “123456") to enter into the web setting interface.
  • Page 28 The settings are the same as the ones of indoor monitor. 3. VOIP Click “VOIP” icon to enter into the following interface: The settings are the same as the ones of indoor monitor. To connect with SIP phone, check “SIP Enable”, and input the number registered in SIP server.
  • Page 29 Ex Phone: input IP address of other manufacturer’s SIP device. It refers to other factory’s VOIP device which is used as sub indoor monitor. When door station calls indoor monitor, SIP device will ring at the same time. Other terminals will stop ringing when one of the indoor monitor or SIP device answers the call.
  • Page 30 5. Webkit Click “Webkit” icon to enter into the following interface: Advertising: use web page as the image. Checking the box, when there’s advertisement pushed from management software, it will display when the indoor monitor is in standby state. Browser: input the linking address in the box. As there is a “BROWSER” icon on the indoor monitor, when the user clicks the icon, it will switch into the linked web page.

  • Page 31: System Configuration

    SYSTEM CONFIGURATION System Configuration CAT-5e+RVV2 CAT-5e+RVV2 Terminal *1.0 CAT-5e Audio extension (optional) CAT-5e Audio extension (optional) Terminal *1.0 Power 220V Power 220V Audio extension (optional) Audio extension (optional) Network Switch Network Switch RVV2*0.5 RVV2*0.5 Terminal Terminal 220V 220V Power Power CAT-5e CAT-5e Audio extension (optional)

  • Page 32: System Diagram

    SYSTEM DIAGRAM Network(POE) Power RS485 Interface Siren/Alarm 1. Power Power input interface connect with 12V power adapter. +12V +12V DC 12V Power Interface 2. Network Connect with outdoor panel, indoor monitor or other network equipment by network switch. When indoor monitor has PoE function, the interface can supply power by connecting with PoE network switch.
  • Page 33 3. RS485 Interface Connect with RS485 interface device; RS485 interface can output 12V/100mA power supply. If RS485 equipment to be connected doesn’t require the power supply, no need to connect +12V. +12V +12V RS485 Interface RS485 Equipment 4. Alarm interface Interface of alarm zones connects with normally-open or normally-closed switch.

  • Page 34: Installation

    INSTALLATION Built-in box Bracket Screws Size: 221.4x151.4x16.5mm Installation Instructions: [Suggestion]: During the installation, the camera should be 1450〜1550mm above the Wall ground. The camera tether for photographing human face should be the top priority. 400~500mm...

  • Page 35: Troubleshooting

    TROUBLESHOOTING The indoor monitor cannot start up or power off automatically. Check whether it has power-failure, and power it on again. The indoor monitor display screen is too dim. Check whether the brightness and contrast settings of screen are correct. No sound during the communication.

  • Page 36: Safety Instructions

    SAFETY INSTRUCTIONS In order to protect you and others from harm or your device from damage, please read the following information before using the device. Do not install the device in the following places: Do not install the device in high-temperature and moist environment or the area close to magnetic field, such as the electric generator, transformer or magnet.
  • Page 37 V1. 0...
