User Manual
———

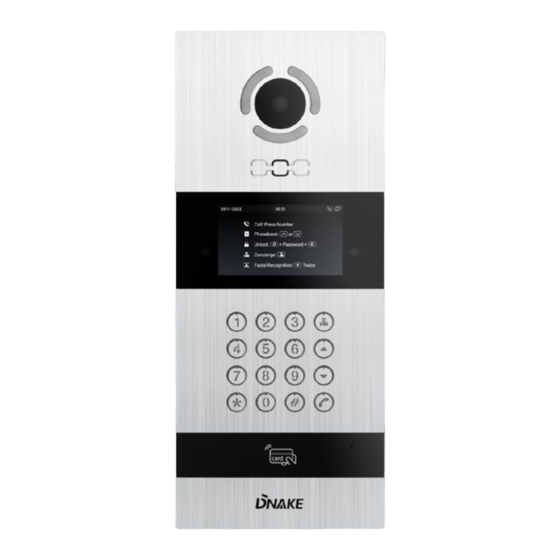

DNAKE 902D-B9

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 902D-B9 and is the answer not in the manual?

Questions and answers

Related Manuals for Dnake 902D-B9

Summary of Contents for Dnake 902D-B9

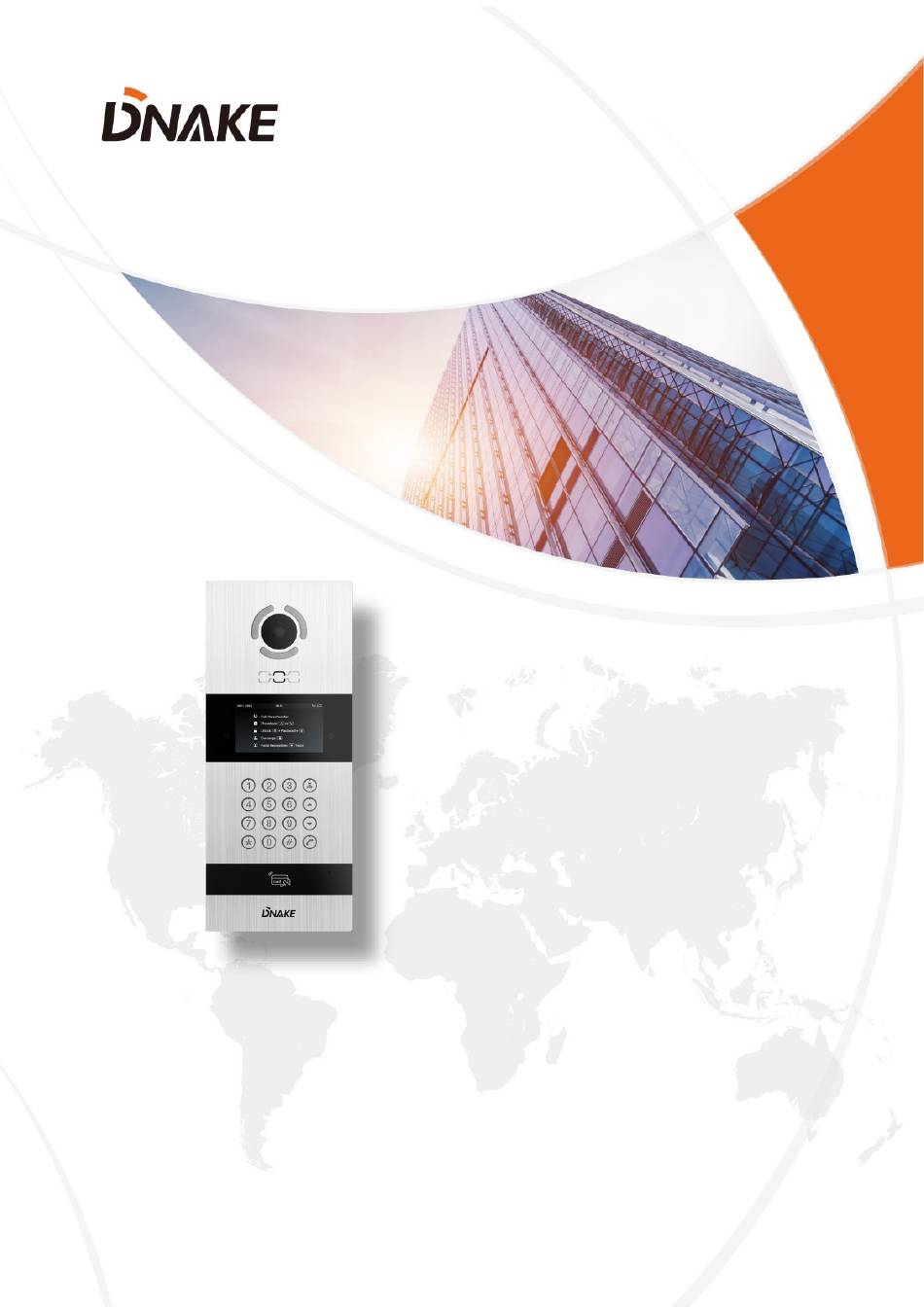

  • Page 1 User Manual ——— DNAKE 902D-B9...
  • Page 3 REMARK Please follow the user manual for correct installation and testing. If there is any doubt please call our tech-supporting and customer center. Our company applies ourselves to reformation and innovation of our products. No extra notice for any change. The illustration shown here is only for reference. If there is any difference, please take the actual product as the standard.

  • Page 4: Table Of Contents

    CATALOG PRODUCT FEATURE ..........1 TECHNICAL PARAMETER ........1 PACKAGE CONTENT ..........2 OVERVIEW .............. 3 BASIC OPERATION ..........5 DEVICE SETTING ........... 7 WEB SETTING ............11 SYSTEM DIAGRAM ..........25 DEVICE WIRING ........... 26 INSTALLATION ............29 TROUBLESHOOTING ........... 30 SAFETY INSTRUCTION ........

  • Page 5: Product Feature

    PRODUCT FEATURE 1. Powered by PoE or power adapter (DC12V/2A) 2. Open the door by face recognition (10,000 users) 3. Liveness detection 4. Open the door by IC card (100,000 users) 5. Support SIP 2.0 protocol, easy integration with other SIP devices 6.

  • Page 6: Package Content

    PACKAGE CONTENT MODEL: 902D-B9 (Flush Mounting) Screw Fixing Seat 902D-B9 PA4×25 (4 pcs) PA3×8 (2 pcs) Seal Ring (4 pcs) Rear Cover Wrench Screw Wires Quick Start Guide...

  • Page 7: Overview

    OVERVIEW...

  • Page 9: Basic Operation

    BASIC OPERATION 1. Call and Monitor 1.1. Call Indoor Monitor In standby mode, press room numbers + #/dial on Door Station to call Indoor Monitor. During the call, press * on Door Station again to end the call. If the call fails or Indoor Monitor is busy, Door Station will make a beep sound.
  • Page 10 Step 2: And then tap other cards immediately. Other cards you have tapped will be deleted; Step 3: Tap the admin card again to finish. 5.3. Delete all other cards Tap the admin card five times. All the other cards will be deleted. Tips: The admin card can only be used to manage cards.

  • Page 11: Device Setting

    DEVICE SETTING Connect Door Station and PC to a network switch in the same LAN. You can enter the admin settings of Door Station by pressing # twice and entering default password (123456). This is where you can configure the device. 1.
  • Page 12 Resolution: 3 resolutions supported (320 × 240, 640 × 480, 1 280 × 720, 1920 × 1080); Password: Administrator password of the Device (Default 12 3456); 2. Network Settings The device network can be set to either DHCP or a static IP address. CMS parameters should be configured here when you try to register this device to CMS.
  • Page 13 Delete All: Press 1 and # to delete all face data; 3.2. Password Settings Add: Click to add password; Delete: Enter password to delete it; Delete All: Press 1 and # to delete all passwords; Check: Check the password can be used or not; 3.3.
  • Page 14 Recognizer: Enable facial recognition; Similarity: sensitivity of facial similarity analyzer (low, normal, high); Live Detect: Sensitivity of live detect (close, normal, high); Unlock Time: The length of unlock time (1-9s); Unlock Delay: The length of unlock delay time (1-9s); Elev Refer: The floor Door Station is installed at (Range: -9- 99);...

  • Page 15: Web Setting

    (admin) and password (123456). This is where you can configure the device. For getting the IP address, you can search by DNAKE Remote Upgrade Tool which is installed in the same LAN with the devices. 1. General 1.1.
  • Page 16 Model: Model of the device; Firmware Version: Firmware version of the device; MAC Address: MAC address of the device; Framework: Framework of the device; UI of the device; MCU: MCU of the device; DHCP: Status of DHCP; IP Address: Current IP address of the device; Mask: Subnet mask of the device;...
  • Page 17 Language: 16 languages supported (简体中文, English, 繁體 中文, ‫ ,ﬠ ִ בר ִ ית‬Deutsch, Español, Türk, Tiếng Việt, Nederlands, Português, Polski, Русский, ‫ ,ﻋرﺑﻲ‬Fr ançais, Italiano, slovenský); Resolution: 3 resolutions supported (320 × 240, 640 × 480, 1 280 × 720); Intercom: Volume of Intercom can be set from 1 to 6;...
  • Page 18 The System password is for the administrator to log in settings on the device while the Web password is for the administrator to log in settings on the web. The default password for both of them is 123456. System Old Password: Current administrator password of the Device (D efault 123456);...
  • Page 19 Backup&Restore: Backup all setting and restore settings; Upgrade: Upgrade equipment; Reset: Reset to factory settings; Reboot: Reboot the device; Packet Capture: Capturing packets can help developers reproduc e positioning problems; Logs: Device logs; Screenshot: Screenshot device interface; 2. Intercom 2.1. Intercom > Device...
  • Page 20 Numbers here are basic settings for making a call to Indoor Monitor. For Door Station, the building and unit number should be the same as those in Indoor Monitor. For Villa Station with one button, the building, unit, and room number should be the same as those in Indoor Monitor.
  • Page 21 DHCP: Enable DHCP (Dynamic Host Configuration Prot ocol) to dynamically distribute network configurat ion parameters; IP Address: Configure Static IP address to manually distribut e network configuration parameters; Mask: Subnet mask; Gateway: A component that is part of two networks, which use different protocols;...
  • Page 22 SIP: Enable to use SIP; Proxy: Proxy of SIP; the default port is 5060; Display Name: Display name of SIP; User: User of SIP; User ID: User ID of SIP; Password: Password of SIP; Transfer Protocol: Transfer Protocol (UDP, TCP, TLS); H.264: Advanced video coding (Range:96-167);...
  • Page 23 Mode: 2 modes supported (one by one, all at once); URL: URL of the concierge button; Dial Mode: 2 dial modes supported (Normal, Repeat); Ring Time: The ring will be ended automatically after a perio d of time (10s, 20s, 35s, 45s, 60s, 90s, 120s) Call Time: The call will be ended automatically after a perio d of time (120s, 300s, 600s, 1200s, 1800s);...
  • Page 24 Reset: Click reset to clear words in text inputs; Delete All: Delete all data on the chart; Import: Import all data to the chart; Export: Export all data on the chart; 2.6. Intercom > Call Logs All call logs can be checked here. Search: Fill in text inputs to search;...
  • Page 25 Relay 1: 1 relay supported; DTMF: Dual-tone multi-frequency signaling (Relay1: #, Relay2:0, relay3: *); Unlock Delay: The length of unlock delay time (1-9s); Unlock Time: The length of unlock time (1-9s); Lift Reference Floor: The floor Door Station is installed at (Range: -9-9 Unlock Password: Click to add PIN code or delete all;...
  • Page 26 Search: Fill in text inputs to search; Reset: Click reset to clear words in text inputs; Delete All: Delete all data on the chart; Export: Export all data on the chart; 3.3. Access > Unlock Logs All unlock logs can be checked here.
  • Page 27 Search: Fill in text inputs to search; Reset: Click reset to clear words in text inputs; Delete All: Delete all data on the chart; Export: Export all data on the chart; 4. Advanced 4.1. Advanced > Video Real-time video from IP cameras can be obtained by filling in its URL (RTSP). On the talking interface of Indoor Monitor, you can click the little keyboard icon to switch to IP cameras’...
  • Page 28 Advertise: Enable to advertise on the screen saver of the device; URL: Advertise URL (Uniform Resource Locator); Time (minutes): The time length of advertising display (10mins, 20mins, 30mins); ONU Penetration: Enable to prevent ONU from banning multicast;...

  • Page 29: System Diagram

    SYSTEM DIAGRAM...

  • Page 30: Device Wiring

    DEVICE WIRING 1. Network (PoE) Standard RJ45 interface used to connect to the Master Station, Indoor Monitor, and/or other network equipment via a network switch. PSE shall comply with IEEE 802.3at (PoE+) and its output power not less than 30W and its output voltage not be less than 50V. 2.
  • Page 31 Connect to the lock module (an independent power supply is necessary for the lock). 4. RS485 Enable to connect equipment with RS485 interface. RS485 interface can output 12V/100mA power. +12V isn't required for wiring if it is unused. Warning! 1. When connecting to an inductive load device such as a relay or electromagnetic lock, you are recommended to use a diode 1A/400V (included in the accessories) in anti-parallel with the load device...
  • Page 32 6. Card Reader Interface The interface can be connected to one IC/ID card reader or be used for reading the information of built-in card reader. It can output the power 5V/100mA.If the card reader doesn't need the power from the interface, connection of +5V isn't required.

  • Page 33: Installation

    INSTALLATION Flush Mounting Product size: 380 × 158 × 55.7 mm Flush Mounting Box size: 358 × 142 × 59.5 mm Mounting hole size: 364 × 148 × 56 Tips: 1. The camera should be 1450~1550mm above the ground. The camera at this height can capture human face perfectly. 2.

  • Page 34: Troubleshooting

    TROUBLESHOOTING The Indoor Monitor cannot start up or power off automatically. Check whether it has power-failure, and power it on again  The Indoor Monitor display screen is too dim. Check whether the brightness and contrast settings of screen are correct. ...

  • Page 35: Safety Instruction

    SAFETY INSTRUCTION In order to protect you and others from harm or your device from damage, please read the following information before using the device. Do not install the device in the following places:  Do not install the device in high-temperature and moist environment or the area close to ...
  • Page 36 V1.1 EASY SMART INTERCOM SOLUTIONS...
