  • Page 1 S615 QUICK START GUIDE...
  • Page 2 REMARK Please follow the user manual for correct installation and testing. If there is any doubt please call our tech-supporting and customer center. Our company applies ourselves to reformation and innovation of our products. No extra notice for any change. The illustration shown here is only for reference.
  • Page 3: Table Of Contents

    CATALOG Package Contents ...........1 Pictures ..............1 Basic Operation............2 System Configuration ..........3 System Diagram............4 Installation..............7 Safety Instructions ..........10 For specific operation instructions, please scan the following QR code to obtain the full version of the User Manual.
  • Page 4: Package Contents

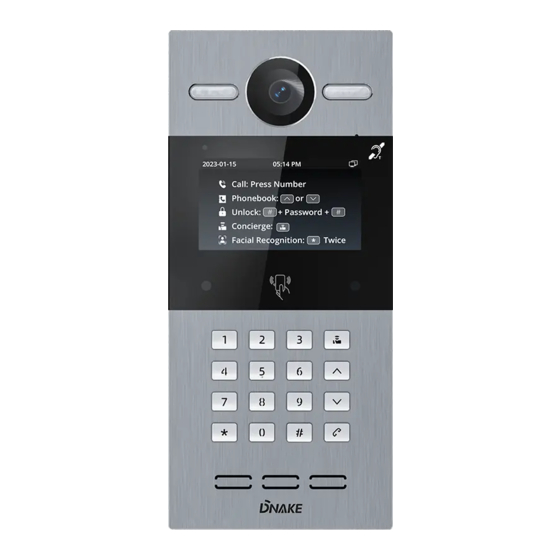

    PACKAGE CONTENTS Door Station Screw Screw Fixing Seat Screw Wrench Interface Plate Rain Hood Cable Locking Plate Hanging Rope Sealing Plug Quick Start Guide (Optional) PICTURES Camera Microphone Display screen Card reader area Numeric keypad Speaker...
  • Page 5: Basic Operation

    BASIC OPERATION 1. Calling indoor monitor In a standby mode, input room number on door station, for example, when inputting "123" on door station, then press “#” to enter the call state. Note: During communication, pressing “*” on the door station, the call gets disconnected.
  • Page 6: System Configuration

    System Configuration Apartment AlarmSensors AlarmSensors AlarmSensors AlarmSensors IndoorMonitor IndoorMonitor 9000+Max SmartLifeAPP SmartLifeAPP IPCamera Lock PoESwitch PoESwitch PoESwitch PoESwitch PoESwitch PoESwitch PoESwitch PoESwitch PoESwitch PoESwitch PoESwitch PoESwitch PoESwitch PoESwitch PoESwitch PoESwitch PoESwitch PoESwitch PoESwitch PoESwitch MasterStation S615 RVV2*0.5 9Max CAT-5e Internet...
  • Page 7: System Diagram

    SYSTEM DIAGRAM System Configuration +12V_IN COM3 Network(PoE) WG_D0 WG_D1 COM2 INPUT1 COM1 INPUT2 INPUT3 485- INPUT4 485+ 1. Network(PoE) Standard RJ45 interface connects with master station, indoor monitor or other network equipment by network switch. PSE of power supply equipment shall comply with IEEE 802.3at (POE plus), with output power not less than 30W and output voltage not less than 50V.
  • Page 8 3. Switching Value Output Connect to the lock module(independent power supply is necessary for the lock). Normally open port of relay Common port of relay COM3 Normally closed port of relay Normally open port of relay Common port of relay COM2 Normally closed port of relay Normally open port of relay...
  • Page 9 6. Card Reader Interface The interface can be connected to one IC/ID card reader or be used for reading the information of built-in card reader. WD 0 WD 0 WD 1 WD 1 IC/ID Card Reader or Management Device Card Reader Interface Note: Door station can only be connected to one card reader or management device at a time.
  • Page 10: Installation

    INSTALLATION MODEL: S615(Flush Mounting) Screws Screws Screws Flush Mounting Box Screws Rain Hood(Optional) Door Station Rain Hood(Optional) Screw Wrench Product dimension:133x295x41mm Flush mounting product dimension:133x295x63.5mm Hole-cutting dimension:124x289x56mm...
  • Page 11 MODEL: S615(Surface Mounting) Screws 86-Box Rain Hood(Optional) Surface Mounting Box Screws Door Station Rain Hood(Optional) Screw Wrench Product dimension:133x295x41mm Surface mounting product dimension:133x295x43mm...
  • Page 12 Installation method: 1. According to the installation dimension of door station, dig a square groove at the appropriate position in the wall or door, and dig a hole (drainage hole) at the bottom; 2. Drill the threading holes at the bottom of the built-in box to facilitate drainage.
  • Page 13: Safety Instructions

    SAFETY INSTRUCTIONS In order to protect you and others from harm or your device from damage, please read the following information before using the device. Do not install the device in the following places: Do not install the device in high-temperature and moist environment or the area close to magnetic field, such as the electric generator, transformer or magnet.
