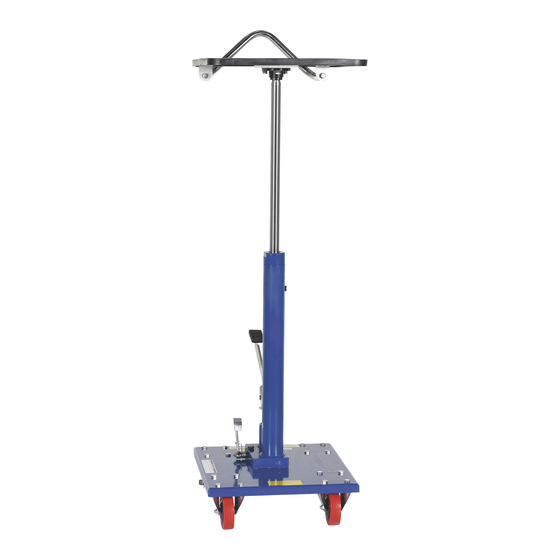

HT-02-1616A INSTRUCTION MANUAL
BASIC DATA:
MODEL
HT-02-1616A
ASSEMBLY INSTRUCTIONS:
1. Put the frame with casters on the ground.
2. Install hydraulic cylinder on the frame, and secure it with big washer
(#24), spring washer (#25) and M12 bolt (#26).
3. Remove solid plug on top end of the cylinder and replace it with
bleeder (vent) plug
4. Join the Cylinder joint block (#6) to the lift piston (#(7), and secure
them by nut (# 7).
5. Use spanner to tighten nut (#7) under the table.
6. Install push/pull handle (#1) on front side of the table (#5), and secure
it by M8 bolt (#4), spring washer (#3) and flat washer (#2).
7. Now tighten all bolts & nuts.
8. Check all the parts, and then test this lift table with weight and
without weight.
CAPACITY
LOWERED
HEIGHT
200LBS.
31"
to allow air to be bled from the hydraulic
RAISED
TABLE
HEIGHT
DIMENSIONS
49"
16" X 16"
NET
WEIGHT
62 LBS.
system.
