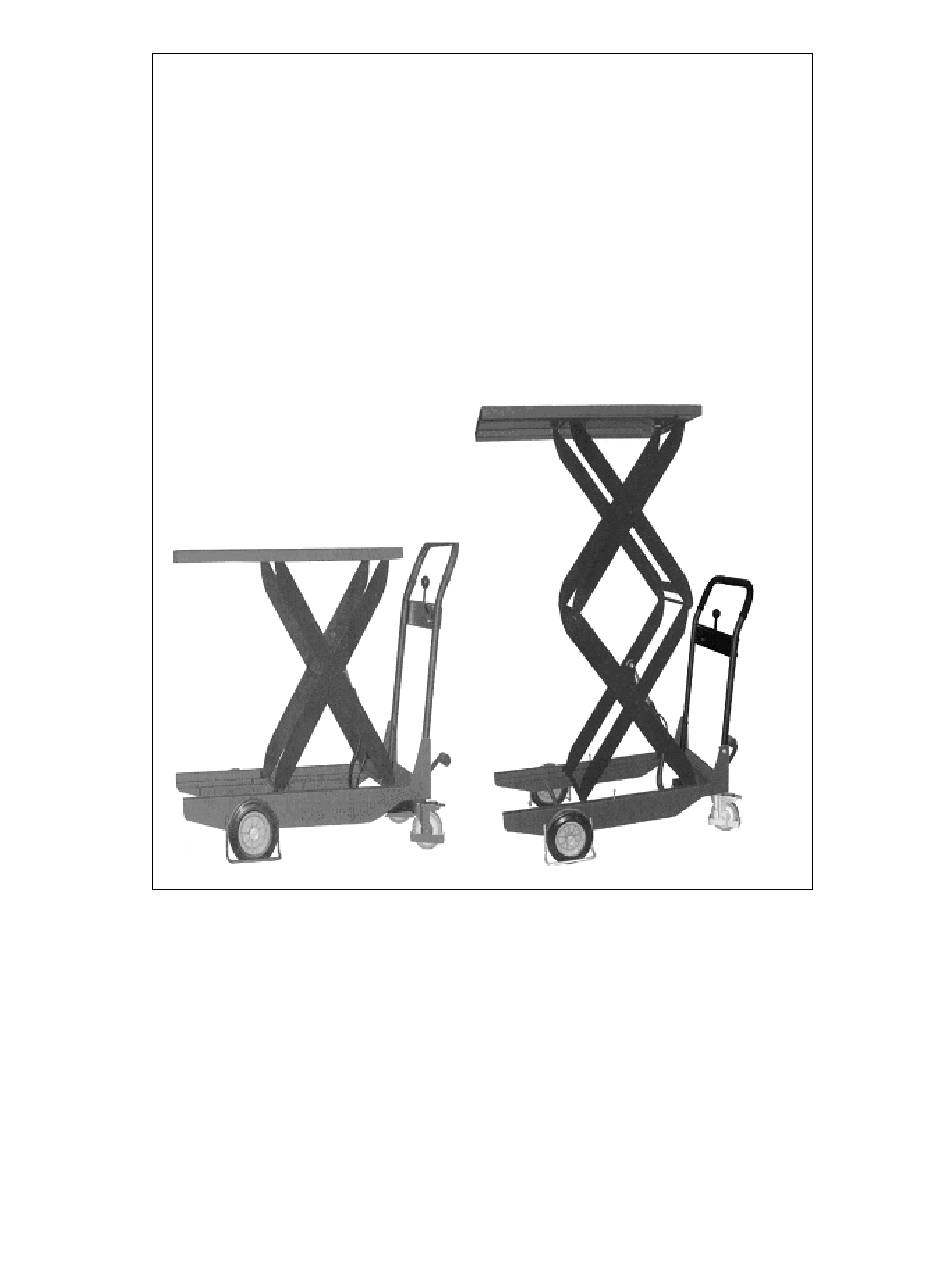

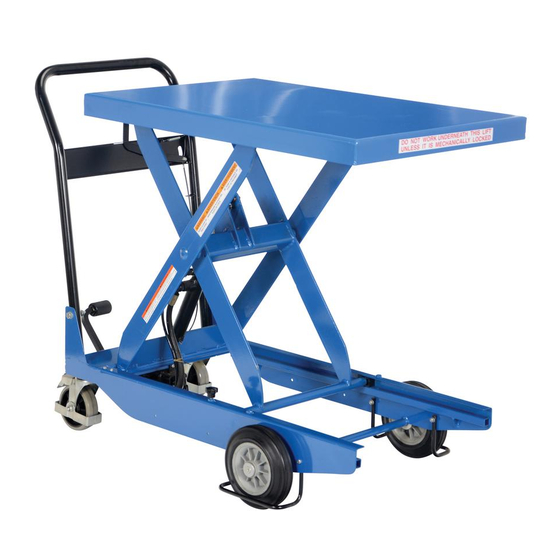

- Page 1 NSTRUCTION ANUAL REMIUM CISSOR ARTS ODELS OVERED: CART-300-S-HR, CART-600-S-HR, , CART-1000-S-HR, CART-400-D-HR - 1 -...
-
Page 2: Table Of Contents
Content 1. Warning………………………………………………….3 2. Caution…………………………………………………..4 3. Name of parts…………………………………………...5 4. Daily inspection…………………………………………6 5. Operating lifttable……………………………………… 6~7 6. Specifications……………………………………………8 7. Service instruction………………………………………8~9 8. Hydraulic Circuit…………………………………………9 9. Exploded view & part list……………………………….10~19 - 2 -... -
Page 3: Warning
BEFORE OPERATING THE LIFT TABLE, READ THIS MANUAL CAREFULLY AND UNDERSTAND COMPLETELY. KEEP THIS MANUAL ON FILE FOR FUTURE REFERENCE. IF THIS IS LOST, PLEASE CONTACT YOUR LOCAL SUPPLIER FOR A NEW COPY. ALSO, IF THE WARNING/CAUTION DECAL ON THE UNIT IS LOST, PLEASE CONTACT YOUR LOCAL SUPPLIER FOR A NEW DECAL. -
Page 4: Caution
2. CAUTION 1.Read this operation manual carefully and understand completely operating lift table. Improper operation could create danger. 2.This lift table is a movable lifter designed to lift or lower rated load on table. NO NOT use lift table for other purpose than its intended use. 3.DO NOT allow person to operate lift table who does not understand its operation. -
Page 5: Name Of Parts
3. NAME OF PARTS CART-300/600/1000-S-HR - 5 -... -
Page 6: Daily Inspection
4. DAILY INSPECTION Daily inspection is effective to find the malfunction or fault on lift table. Check lift table on the following points before operation. CAUTION DO NOT use lift table if any malfunction or fault is found. (1) Check for scratch, bending or cracking on the lift table. (2) Check if there is any oil leakage from the cylinder. - Page 7 5-2 Lifting the table WARNING 1. DO NOT overload lift table, stay within its rated capacity. 2. DO NOT side end load must be distributed on at least 80% of table area. Press the lifting pedal several times until the table reaches the desired position. The table does not elevate after reaching the highest position even if the lifting pedal is pressed.
-
Page 8: Specifications
(kg) CART-300-S-HR 23⅝” x 35 7/16” Ø8” x 2” Ø5” x 1½” 13⅛”—36¼” 45¼”×25⅝”×38 3/16” 13⅛”—36¼” 45¼”×25⅝”×38 3/16” CART-600-S-HR 23⅝” x 35 7/16” Ø8” x 2” Ø5” x 1½” 1,000 13⅛”—36¼” 45¼”×25⅝”×38 3/16” CART-1000-S-HR 23⅝” x 35 7/16” Ø8” x 2”... -
Page 9: Service Instruction
Service instruction 7-1. Lubricate each point described below every month: 7-2.Change hydraulic oil every 12 months. Lubricating Points (1) Fitting of slipper…… Oil (2) Fitting of cylinder……Oil (3) Guideway surface……Grease (4) Pedal fitting point……Oil (5) Roller fitting point……Oil (6) Wheel fitting……Grease Grease nipple……Grease - 8 -... -
Page 10: Hydraulic Circuit
7. Hydraulic Circuit - 9 -... -
Page 11: Exploded View & Part
8. EXPLODED VIEW & PART LIST CART-400-D-HR - 10 -... -
Page 12: List
CZD203 LIFT TABLE SPARE PARTS LIST CART-400-D-HR Description. Qty's No. Description. Qty's 1. Piston rod 53. End cover 2. Oil cup M6 54. O-ring d10×2.65 3. Guide ring 55. Filler screw 4. Y-ring d40×D48×5.5 56. Retainer 10 5. Guide ring 57. - Page 13 26. Steel ball 7 78. Dormant bolt M8×14 27. O-ring d20×2.65 79. Washer 28. Y-ring d20×D28×5 80. Wheel 29. Pump plunger 81. Nylon washer 30. Spring 82. Washer 6 31. Spring 83. Nut M6 32. Pump bass 84. Chassis 33. Mesh 85.
- Page 14 CART-300/600/1000-S-HR (LIFT TABLE) - 13 -...
- Page 15 CZ503 LIFT TABLE SPARE PARTS LIST CART-300/600/1000-S-HR LIFT TABLE SPARE PARTS LIST Description. Qty's No. Description. Qty's 1. Piston rod 53. End cover 2. Oil cup M6 54. O-ring d10×2.65 3. Guide ring 55. Filler screw 4. Y-ring d40×D48×5.5 56. Retainer 10 5.
- Page 16 26. Steel ball 7 78. Dormant bolt M8×14 27. O-ring d20×2.65 79. Washer 28. Y-ring d20×D28×5 80. Wheel 29. Pump plunger 81. Nylon washer 30. Spring 82. Washer 6 31. Spring 83. Nut M6 32. Pump bass 84. Chassis 33. Mesh 85.
- Page 17 (you) for warranty service. Who may request service? Only a warrantee may request service. You are a warrantee if you purchased the product from Vestil or from an authorized distributor AND Vestil has been fully paid.
