Vestil HYD-10 Owner's Manual

Vestil Manufacturing Corporation
2999 North Wayne St., Angola, IN 46703
Phone (260) 665-7586 • Fax (260) 665-1339
E-mail: sales@vestil.com Website: www.vestil.com
Ergonomic Solutions
Contents
Safety Precautions .......................................... 1
Receiving Instructions ..................................... 1
Warranty .......................................................... 1
Parts List for HYD-5 & HYD-10 .................... 2-3
Troubleshooting Guide for HYD-5 & HYD-10 .. 4

SAFETY PRECAUTIONS

Read owner's manual completely before operating unit!
• Never exceed the maximum loading capacity of 880 pounds.
• Stand clear of load while loading and unloading.
• Load must be evenly distributed on deck to insure stability.
• Use caution in moving a loaded unit; avoid obstructions and
floor defects.
• Always apply wheel brakes when unit is not in motion.
• Never go under deck if there is weight on unit.
• Do not continue to pump on the foot lever if the deck is not
raising.
• Remove weight before working on unit.
• Do not use brake fluid or jack oils. Use AW-32 hydraulic oil
or equivalent.
• Use only replacement parts supplied or approved by the
manufacturer.
• Consult factory before performing any modification to the
original equipment.
• Make sure all operator safety labels are in place (p.11).

RECEIVING INSTRUCTIONS

Every unit is thoroughly tested and inspected prior to
shipment. However, it is possible that the unit may incur
damage during transit. If damage is noticed when unloading,
make a note of it on the BILL OF LADING. Remove all packing
and strapping material, then inspect the unit again for damage.
IF DAMAGE IS EVIDENT, FILE A CLAIM WITH THE CAR-
RIER IMMEDIATELY!
Revised 0507
A company dedicated to solving ergonomic and material
handling problems since 1955.
OWNER'S
MANUAL

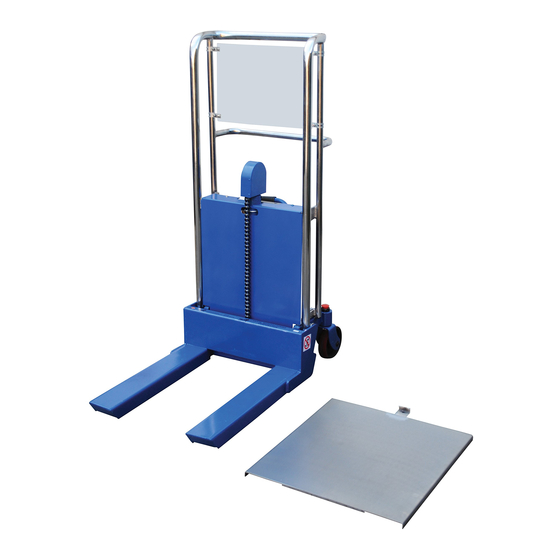

HEFTI-LIFT • MODEL HYD-5 & HYD-10
Operating Instructions for HYD-10-DC ........ 5-6
Electrical Diagram for HYD-10-DC ................. 7
Bill of Materials for HYD-10-DC ..................... 8
Hydraulic Diagram for HYD-10-DC ................ 9
Troubleshooting Guide for HYD-10-DC ....... 10
Warning Label Identification ......................... 11

WARRANTY

This product is warranted for 90 DAYS from date
of purchase to be free of manufacturing defects in material
and workmanship. The manufacturer's obligation hereun-
der is limited to repairing such products during the warranty
period, provided the product is sent prepaid back to the
factory.
This warranty does not cover normal wear of parts
or damage resulting from any of the following: negligent
use or misuse of the product, use or application contrary
to installation instructions, or disassembly, repair or alter-
ation by any person prior to authorization from a factory
representative.
HEFTI-LIFT
MODEL HYD 5 & HYD-10
33-126-101
E
N
G
L
I
S
H
E
S
P
A
N
O
L
F
R
A
N
Ç
A
I
S
1
