Summary of Contents for ACME IU-01

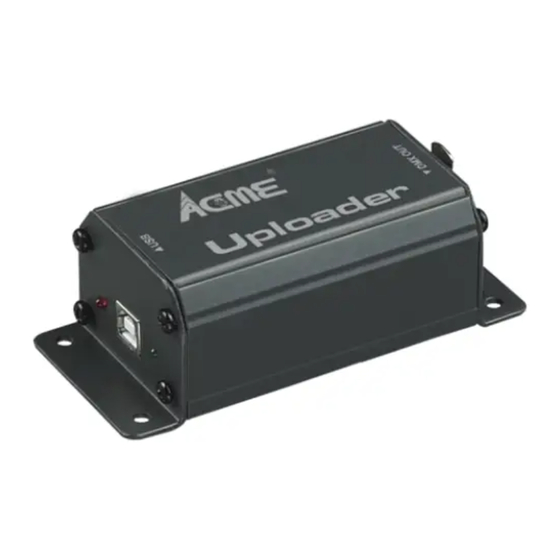

- Page 2 There are no user serviceable parts inside the unit. Do not open the housing or attempt any repairs by yourself. In the unlikely event your unit may require service, please contact your nearest dealer. Product Items: IU-01 1 x USB cable 1 x CD...
- Page 3 98 x 53 x 40mm，0.2kg 3.8"x2.1"x1.6"in, 0.44lbs 3. Connection Connect as below to update program for lightings: 4. Operation 4.1 Download ACME Upgrade setup software from our web site and install it. A. Double-click setup file, click “Next” to confirm.
- Page 4 B. Click “Browse” select path to store installation files, Click “Next” to confirm. C. Click “Next” to start install.
- Page 5 D. Click “Close” to finish installation. 4.2 Update Program A. Double- click the shortcut on the desktop...
- Page 6 Upgrade” to update software for fixtures. B. DMX signal output Click “DMX Console”, the red signal indicator LED of IU-01 will be on and pop-out the dialog box shown below Total 512 channels DMX output, click “DMX Out” to start output, the green signal indicator LED of IU-01 blinking, push to adjust the value.
- Page 7 LED of IU-01 becomes off. C. Update software Click “DMX Console”, the red signal indicator LED of IU-01 will be on and pop-out the dialog box shown below Click “Open” to select a ACME software file that download from our web site, push to set upgrade speed from 100 (fastest) to 1 (slowest).
- Page 8 Declaration of Conformity We declare that our products (lighting equipments) comply with the following specification and bears CE mark in accordance with the provision of the Electromagnetic Compatibility (EMC) Directive 89/336/EEC. EN55103-1: 2009 ; EN55103-2: 2009; EN62471: 2008; EN61000-3-2: 2006 + A1:2009 + A2:2009; EN61000-3-3: 2008. &...
