Can Connector - Directed XpressStart Basic Installation Instructions

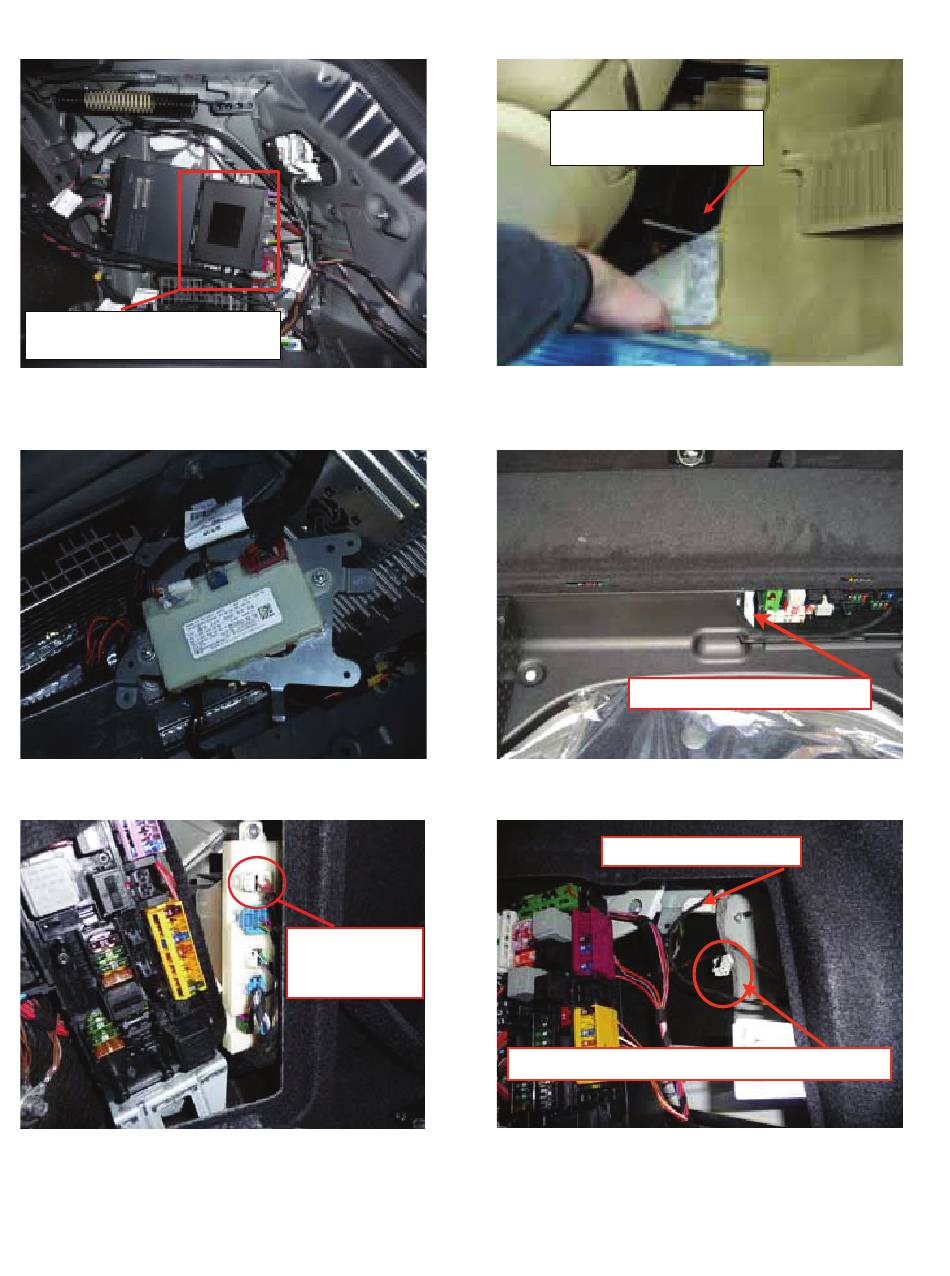

S and CL (2007-2010)
Keylessgo Module
Right rear corner of trunk
S and CL (2011-2012)
Left side trunk, remove metal bracket
E coupe KeylessGo module -- right rear of trunk
6
KeylessGo
plug on module
in trunk

CAN connector

Under rear of driver's seat
C, E, and GLK
KeylessGo Module
GLK under cargo floor behind seat
KeylessGo Module
Plug removed - faces body of car
C and E Sedan KeylessGo module -- right rear trunk
