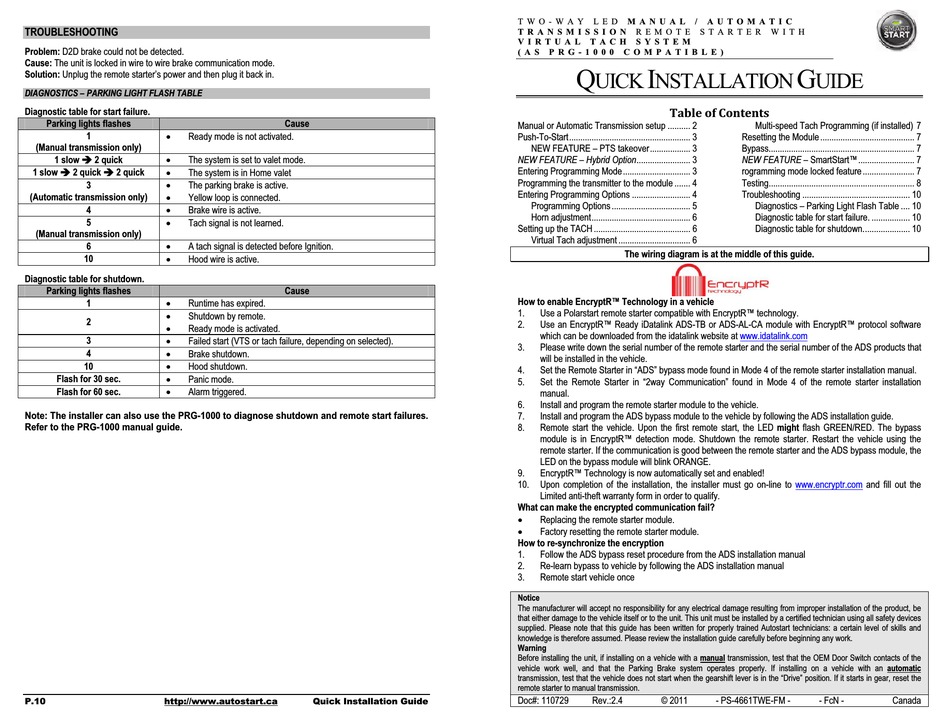

Directed PS-4661TWE-FM Quick Installation Manual

TROUBLESHOOTING
Problem: D2D brake could not be detected.
Cause: The unit is locked in wire to wire brake communication mode.
Solution: Unplug the remote starter's power and then plug it back in.
DIAGNOSTICS – PARKING LIGHT FLASH TABLE
Diagnostic table for start failure.
Parking lights flashes
x
1
Ready mode is not activated.
(Manual transmission only)
1 slow Î 2 quick x
The system is set to valet mode.
1 slow Î 2 quick Î 2 quick x
The system is in Home valet
x
3 The parking brake is active.
x
(Automatic transmission only) Yellow loop is connected.
x
4 Brake wire is active.
x
5
Tach signal is not learned.
(Manual transmission only)
x
6 A tach signal is detected before Ignition.
x
10 Hood wire is active.
Diagnostic table for shutdown.
Parking lights flashes
x
1
Runtime has expired.
x
Shutdown by remote.
2
x
Ready mode is activated.
x
3 Failed start (VTS or tach failure, depending on selected).
x
4 Brake shutdown.
x
10 Hood shutdown.
x
Flash for 30 sec.
Panic mode.
x
Flash for 60 sec. Alarm triggered.
Note: The installer can also use the PRG-1000 to diagnose shutdown and remote start failures.
Refer to the PRG-1000 manual guide.
P.10 http://www.autostart.ca
Cause
Cause
Quick Installation Guide
T W O - W A Y L E D M A N U A L /
T R A N S M I S S I O N R E M O T E
V I R T U A L T A C H S Y S T E M
( A S P R G - 1 0 0 0 C O M P A T I B L E )
Q I
UICK NSTALLATION
Table of Contents
Manual or Automatic Transmission setup .......... 2
Push-To-Start ...................................................... 3
NEW FEATURE – PTS takeover .................. 3
NEW FEATURE – Hybrid Option ........................ 3
Entering Programming Mode .............................. 3
Programming the transmitter to the module ....... 4
Entering Programming Options .......................... 4
Programming Options ................................... 5
Horn adjustment ............................................ 6
Setting up the TACH ........................................... 6
Virtual Tach adjustment ................................ 6
The wiring diagram is at the middle of this guide.
How to enable EncryptR™ Technology in a vehicle
1. Use a Polarstart remote starter compatible with EncryptR™ technology.
2. Use an EncryptR™ Ready iDatalink ADS-TB or ADS-AL-CA module with EncryptR™ protocol software
which can be downloaded from the idatalink website at
3. Please write down the serial number of the remote starter and the serial number of the ADS products that
will be installed in the vehicle.
4. Set the Remote Starter in "ADS" bypass mode found in Mode 4 of the remote starter installation manual.
5. Set the Remote Starter in "2way Communication" found in Mode 4 of the remote starter installation
manual.
6. Install and program the remote starter module to the vehicle.
7. Install and program the ADS bypass module to the vehicle by following the ADS installation guide.
8. Remote start the vehicle. Upon the first remote start, the LED might flash GREEN/RED. The bypass
module is in EncryptR™ detection mode. Shutdown the remote starter. Restart the vehicle using the
remote starter. If the communication is good between the remote starter and the ADS bypass module, the
LED on the bypass module will blink ORANGE.
9. EncryptR™ Technology is now automatically set and enabled!
10. Upon completion of the installation, the installer must go on-line to
Limited anti-theft warranty form in order to qualify.
What can make the encrypted communication fail?
x
Replacing the remote starter module.
x
Factory resetting the remote starter module.
How to re-synchronize the encryption
1. Follow the ADS bypass reset procedure from the ADS installation manual
2. Re-learn bypass to vehicle by following the ADS installation manual
3. Remote start vehicle once
Notice
The manufacturer will accept no responsibility for any electrical damage resulting from improper installation of the product, be
that either damage to the vehicle itself or to the unit. This unit must be installed by a certified technician using all safety devices
supplied. Please note that this guide has been written for properly trained Autostart technicians: a certain level of skills and
knowledge is therefore assumed. Please review the installation guide carefully before beginning any work.
Warning
Before installing the unit, if installing on a vehicle with a manual transmission, test that the OEM Door Switch contacts of the
vehicle work well, and that the Parking Brake system operates properly. If installing on a vehicle with an automatic
transmission, test that the vehicle does not start when the gearshift lever is in the "Drive" position. If it starts in gear, reset the
remote starter to manual transmission.
Doc#: 110729 Rev.:2.4 © 2011
A U T O M A T I C
S T A R T E R W I T H
G
UIDE
Multi-speed Tach Programming (if installed) 7
Resetting the Module .......................................... 7
Bypass ................................................................. 7
NEW FEATURE – SmartStart™ ......................... 7
rogramming mode locked feature ....................... 7
Testing ................................................................. 8
Troubleshooting ................................................ 10
Diagnostics – Parking Light Flash Table .... 10
Diagnostic table for start failure. ................. 10
Diagnostic table for shutdown. .................... 10
www.idatalink.com
www.encryptr.com and fill out the
- PS-4661TWE-FM - - FcN - Canada
