- Page 1 ORIGINAL INSTRUCTIONS MULTIFUNCTION SANDER SURFACER5 Instruction manual Warning: Please read the manual carefully before using the unit! BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux -France MADE IN PRC...
-
Page 2: Table Of Contents
CONTENTS 1. SAFETY INSTRUCTIONS 2. YOUR PRODUCT 3. ASSEMBLY 4. OPERATION 5. MAINTENANCE AND STORAGE 6. DISPOSAL 7. DECLARATION OF CONFORMITY EC 8. WARRANTY 9. PRODUCT FAILURE 10. WARRANTY EXCLUSIONS... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. - Page 4 g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards. 4) Power tool use and care a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
- Page 5 g) Do not use a damaged accessory. Before each use inspect the accessory such as abrasive wheels for chips and cracks, backing pad for cracks, tear or excess wear, wire brush for loose or cracked wires. If power tool or accessory is dropped, inspect for damage or install an undamaged accessory. After inspecting and installing an accessory, position yourself and bystanders away from the plane of the rotating accessory and run the power tool at maximum no-load speed for one minute.
- Page 6 c) Do not position your body in the area where power tool will move if kickback occurs. Kickback will propel the tool in direction opposite to the wheel’s movement at the point of snagging. d) Use special care when working corners, sharp edges etc. Avoid bouncing and snagging the accessory. Corners, sharp edges or bouncing have a tendency to snag the rotating accessory and cause loss of control or kickback.
- Page 7 Residual risks Even if you use this product in accordance with all safety requirements, the risk of injury and damage remains: Adverse health effects resulting from vibration if the product is used for long periods or if it is not handled properly and properly maintained Risk of injury to persons and property caused by projectiles.
-
Page 8: Your Product

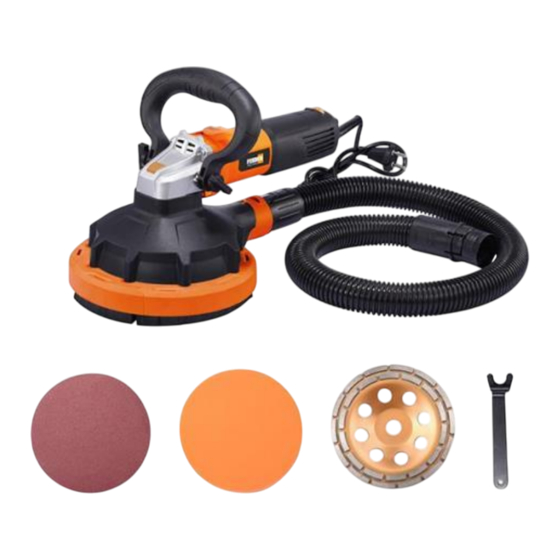

YOUR PRODUCT... - Page 10 1. Rotary speed selection adjustment wheel 11. Suction hose 2. Spindle stop 12. Hose adapter 3. Handle 13. Sponge 4. Brush edge 14.Tungsten carbide grinding wheel (not provided with 5. Auxiliary handle this model) 6. Screw for the auxiliary handle 15.
- Page 11 a. Technical data 220-240V~ 50Hz Voltage Rated power 1100W No load speed 1000-1600/min Disc diameter Ø180mm Weight 2,80 kg Protection class / II Sound pressure level =82.5 dB(A) K=3dB(A) =93.5 dB(A) K=3dB(A) Sound power level = 3.8m/s K=1.5 m/s Vibration Information: The declared vibration total value has been measured in accordance with a standard test method and may be used for comparing one tool with another;...
-
Page 12: Assembly
ASSEMBLY 3.1 Installation of the auxiliary handle (B2) Warning! This appliance must not be used without an auxiliary handle. Mount the auxiliary handle on the machine. Tighten it with the two screws (B2, 6). The tilt of the auxiliary handle can be adjusted so that the guide hand is in a good working posture for certain applications. -
Page 13: Maintenance And Storage
4.4 Polishing Before polishing, thoroughly clean the device, in particular the edge of the brush (4) and the protective and suction hood. Dirt and dust residue can influence the result of polishing. - Mount the sanding plate (10). - Before placing a new foam disc, remove dirt and dust from the sanding plate with a brush. - Place the foam disc in the center of the sanding plate and press it firmly. -
Page 14: Declaration Of Conformity Ec
Tel: +33 (0) 5.34.508.508 Fax: +33 (0) 5.34.508.509 Declares that the machine indicated below: MULTIFUNCTION SANDER SURFACER5 Serial number: 20210865841-20210866440 Complies with the provisions of the Directive "machinery" 2006/42/EC and national laws transposing it; Also complies with the following European directives:... -
Page 15: Warranty
8. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identifed as defective by the designated distributor. -
Page 16: Product Failure
9. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 17: Warranty Exclusions
10. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
