The DI stands for digital IO, and it switches solution via external trigger signal. The trigger source
includes line 0, line 1, and line 2. After enabling DI, set Trigger Source and Trigger Type, and enter
Filter Time according to actual demands.
Note
Each trigger source can link one solution only.
If the duration of trigger signal is smaller than filter time, and this trigger signal is ignored.
When specific trigger source is used in DI for switching solutions, you cannot use it as a trigger
source for triggering device to acquire images.
COMM. stands for communication, and it switches solution via communication string. Go to
Output to select communication tool to receive strings, and set related parameters. DI/COMM.
refers to use both digital IO and communication string to switch solution. OFF refers to disable
solution switch function.

9.4 View Camera Info

In device information area, you can view the device serial number, MAC address, subnet mask,
firmware, and edit user ID or IP address.
Note
Before editing IP address, you need to stop solution operation first. After editing, the device will
reboot automatically, and you may enter new IP address in web browser to log in again.

9.5 Operate Image

After setting device parameters, click
images. The function of different icons in the image display area is shown below.
SC7000 Series Smart Camera User Manual

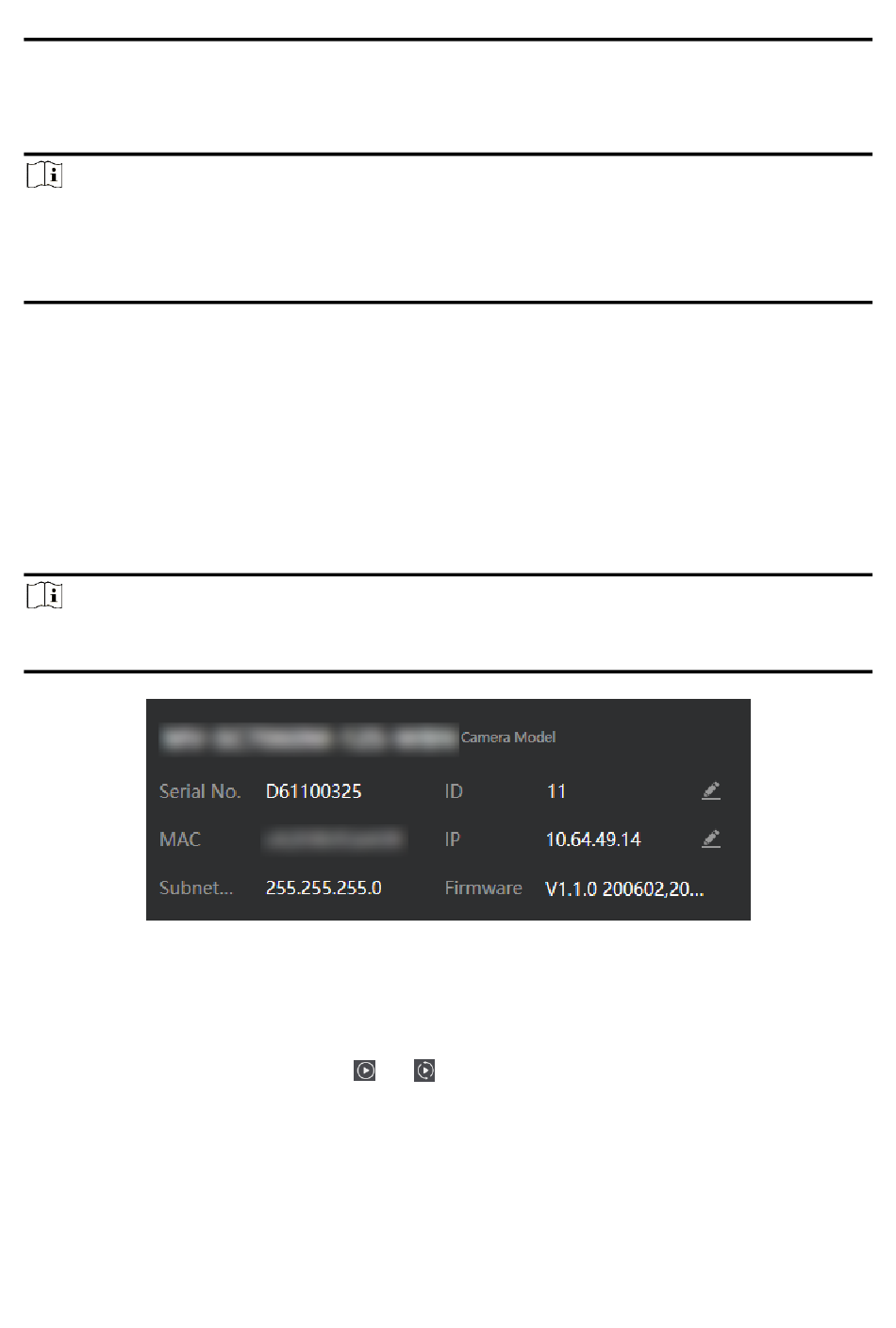

Figure 9-4 View Camera Info
or to run a solution, and the device starts to acquire
61
