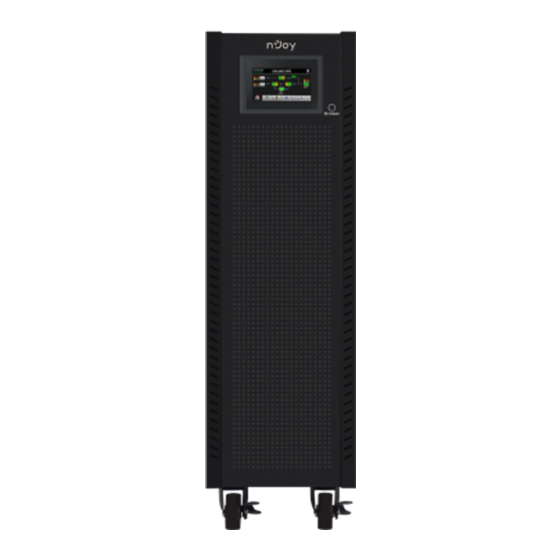

- Page 1 Garun Series 10KL / 15KL / 20KL 3:3 / 3:1 / 1:1 UPS UP33TOP110KGAAZ01B UP33TOP110KGAAZ02B User Manual UP33TOP115KGAAZ01B UP33TOP120KGAAZ02B UP33TOP120KGAAZ01B Before using this product, carefully read all product documentation and retain it for future reference. 938.35.21.0...
-
Page 2: Table Of Contents
3. Operations ......................18 3-1. Initial operation ......................18 3-2. Screen description ....................19 3-2.1. Main screen ....................19 This User Manual is compatible with the following Garun Series models: 3-2.2. Control screen ....................20 3-2.3. Measure screen ..................... 22 10K VA Garun 10KL 3-2.4. -
Page 3: Safety And Emc Instructions
Safety and EMC instructions All safety instructions in this document must be read, understood and followed. 1.1. Transportation and storage WARNING • Please transport the UPS system only in the original packaging to protect against shock and damage. Please comply with all warnings and operating instructions in this manual. •... -
Page 4: Connection Warnings
1.4. Connection warnings Before working on this circuit • There is no standard backfeed protection inside of the UPS. However, 1. Isolate Uninterruptible Power Supply (UPS) there are relays on the Input to cut off line voltage while the neutral is still 2. -
Page 5: Installation And Operation
2.2. Wiring terminal view Installation and operation RS-232 communication port USB communication port 2.1. Unpacking and inspection Emergency power off function connector (EPO connector) Unpack the package and check the package contents. The shipping package Share current port should contain: Parallel port Intelligent slot •... -
Page 6: Ups Positioning
2.3. UPS Positioning The UPS should be installed in the environment with free ventilation, less dust, optimum ambient temperature and humidity. The recommended ambient temperature is 20°C~25°C with 50% humidity. • Ambient temperature: 0°C~+40°C • Storage temperature: -15ºC ~ 60ºC •... -
Page 7: Single Ups Installation
2.4. Single UPS installation Installation and wiring must be carried out in accordance with the local electric laws and regulations by trained professionals. Step 1. Make sure that the mains wire and breakers of the building are rated for the capacity of the UPS to prevent electric shock or risk of fire. NOTE! Do not use the wall receptacle as the input power source for the UPS, as its rated current is less than the UPS’s maximum input current. - Page 8 3:3 phase configuration NOTE! For 3:1 configuration, you need to connect only one phase to Bypass Input Please use the below diagram: (3.a) connector and Output connector. Each of the three connectors from Bypass input and from Output needs to be connected with cables. •...
-
Page 9: Ups Installation For Parallel System
NOTE! 2.5. UPS installation for parallel system Please install the output breaker between the output terminal and the load, If the UPS is only available for single operation, you may skip this section to and the breaker should be qualified with leakage current protective function the next. -
Page 10: Operations
3.2. Screen description Operations After initialization, the LCD will display main screen. There are five sub-menus: Control, measure, setting, information and data log. 3.1. Initial operation Touch any sub-menu icon to enter into the sub-screen. Step 1. Before operation, make sure that the two strings of batteries are connected correctly in order of ”+,GND,-”... -
Page 11: 3-2.2. Control Screen
3.2.2. Control screen Battery test It will show “Battery Test” if the UPS is not in test. Touch “Yes” to start Touch the icon to enter control sub-menu. battery test. Then, it will show “Battery testing..…” during battery test period. After few seconds, battery test result will show on the screen. -
Page 12: 3-2.3. Measure Screen
ON/OFF Charger LINE VOL: The real time value of R, S and T phase voltage, RS, ST, TR voltage and input frequency. It will show “Turn on Charger?” when charger is off. INVERTER VOL: The real time value of R, S and T inverter voltage, RS, ST and It will show “Turn off Charger?”... -
Page 13: 3-2.4. Setting Screen
Setting Menu Measure screen page 3 GENERAL: It’s to set up basic information of the UPS. It’s not related to any function parameter. INPUT W: R, S and T input power in watt. ADVANCE: It’s required to enter password to access to the “ADVANCE” INPUT VA: R, S and T input power in VA. - Page 14 Service Contact: Set the name of contact person and the maximum length is Advance 18 characters. Service Phone: Set the service phone number. Only 0~9, + and – are accepted. The maximum length is 14 characters. Service Mail: Set the service email accounts up to two and the maximum length is 36 characters.
- Page 15 CVCF Mode (constant voltage and constant frequency function) Enable: CVCF function is enabled. The output frequency will be fixed at 50Hz or 60Hz according to setting of “OP Freq.”. The input frequency could be from 46Hz to 64Hz. Disable: CVCF function is disabled. The output frequency will synchronize with the bypass frequency within 46~54 Hz for 50Hz system or within 56~64 Hz for 60Hz system.
- Page 16 • MISCELLANEOUS ECO Voltage Range: Set the ECO voltage range. L: Low voltage point for ECO mode. The setting range is from “Rated output voltage – 5V” to “Rated output voltage - 11V”. “Rated output voltage – 5V” is default setting. H: High voltage point for ECO mode.
-
Page 17: 3-2.5. Information Screen
3.2.5. Information screen PAR State: The information of parallel state. PAR ID: The UPS ID number in parallel state. Touch the icon to enter information page. Touch the icon Customer code: Customer code for UPS browse information. Touch the icon to return to main screen. -
Page 18: 3-2.6. Data Log Screen
Line Voltage Range: The acceptable line input voltage range. Line FRE Range: The acceptable line input frequency range. Bypass Voltage Range: The acceptable input voltage range for bypass mode. Bypass FRE Range: The acceptable input frequency range for bypass mode. ECO Voltage Range: The acceptable input voltage range for ECO mode. -
Page 19: Audible Alarm
the UPS enter to power on mode for initialization, several seconds later, UPS operates in Bypass mode and supplies power to the load via the bypass. NOTE! When UPS is in Bypass mode, the output voltage will draw power from utility after you switch on the input breaker. - Page 20 3.4.4. Charge the batteries If the UPS has been set to bypass output, it will bypass voltage from the utility power to output terminal even though you have turned off the UPS (inverter). • After the UPS is connected to the utility power, the charger will charge After turning off the UPS, please be aware that the UPS is working at Bypass the batteries automatically except in battery mode or during battery self-test mode and there is risk of power loss for connected devices.
-
Page 21: Parallel Operation
3.5. Parallel operation NOTE! Garun series supports parallel operations up to 3 units. Parallel operation should be done only by authorized personal only. Please contact technician that installed the UPS if you need to start parallel operations. -
Page 22: Fault Code
3.5.2. Add new units into the parallel system 3.6. Fault Code • You can’t add one new unit into the parallel system when whole system is running. You must cut off the load and shutdown the system. Fault code Fault event Fault code Fault event •... -
Page 23: Warning Code
3.7. Warning Code Inverter relay short Battery polarity reverse circuited Warning Warning PFC IGBT over-current Warning event Warning event Line wiring fault code code in A phase Line situations are different in Parallel communication PFC IGBT over-current Battery unconnected parallel system failure in B phase Bypass situations are... -
Page 24: Troubleshooting
Problem Possible cause Solutions Troubleshooting The UPS shut Fault code is down automatically Check output wiring and if If the UPS system does not operate correctly, please solve the problem by shown as 14, because short circuit connected devices are in short using the table below. -
Page 25: Storage And Maintenance
• Batteries may cause electric shock and have a high short-circuit current. Storage and maintenance Please remove all wristwatches, rings and other metal person objects before maintenance or repair, and only use tools with insulated grips and handles for 5.1. Storage maintaining or repairing. - Page 26 Memo Memo...
- Page 27 Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems) This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.
