Njoy Theron, UPCMRSS680TTRCG01B - Power Supply Manual

Introduction

nJoy is a brand of power and backup protection products that create solutions for multiple levels of environment complexity, residential to industrial.
This UPS will protect your electronic equipment from physical damage and will provide emergency battery backup power to prevent data loss in the event of power problems.

Package Contents

The box should contain the following:

1. UPS Unit x 1
2. User manual x 1
3. Power cord x 1
4. Rack mount ears (stands) x 2
5. Flat head screws (M4x8L) x 8
6. Screw hole dust covers x 14
7. USB Cable x 1 (Optional)

NOTE: Before installation, please inspect the unit. Be sure that nothing inside the package is damaged.

Installing your UPS system

Overview

The UPS ensures consistent power to your computer system and its included software will automatically save your open files and shutdown your computer system during a utility power loss.

How to determine the power requirements your equipment

1. Make sure that the total Volt-Amp (VA) requirements of your computer, monitor, and peripheral equipment does not exceed rated capacity.
2. Ensure that the equipment plugged into the battery power-supplied/surge outlets does not exceed the UPS unit's rated capacity. If the rated unit capacities are exceeded, an overload condition may occur and cause the UPS unit to shut down or the circuit breaker to trip.

Hardware installation guide

1. Your new UPS may be used immediately upon receipt. However, recharging the battery for at least 8 hours is recommended to ensure that the battery's maximum charge capacity is achieved. Charge loss may occur during shipping and storage. To recharge the battery, simply leave the unit plugged into an AC outlet. The unit will charge in both the on and off position.
2. With the UPS unit off and unplugged, connect the computer, monitor, and any externally powered data storage device (Zip drive, Jazz drive, Tape drive, etc.) into the battery power supplied outlets. DO NOT plug a laser printer, copier, space heater, vacuum, paper shredder or other large electrical device into the UPS. The power demands of these devices will overload and possibly damage the unit.
3. Plug the UPS into a 2 pole, 3 wire grounded receptacle (wall outlet). Make sure the wall branch outlet is protected by a fuse or circuit breaker and does not service equipment with large electrical demands (e.g. air conditioner, refrigerator, copier, etc.) Avoid using extension cords.
4. Depress the power switch to turn the unit on. The power on indicator light will illuminate.
5. If an overload is detected, an audible alarm will sound and the unit will emit one long beep. To correct this, turn the UPS off and unplug at least one piece of equipment from the outlets. Wait 10 seconds. Make sure the circuit breaker is depressed and then turn the UPS on.
6. Your UPS is equipped with an auto-charge feature. When the UPS is plugged into an AC outlet, the battery will automatically recharge.
7. To maintain optimal battery charge, leave the UPS plugged into an AC outlet at all times.
8. To store your UPS for an extended period, cover it and store with the battery fully charged. Recharge the battery every three months to ensure battery life.

Basic operation

Description

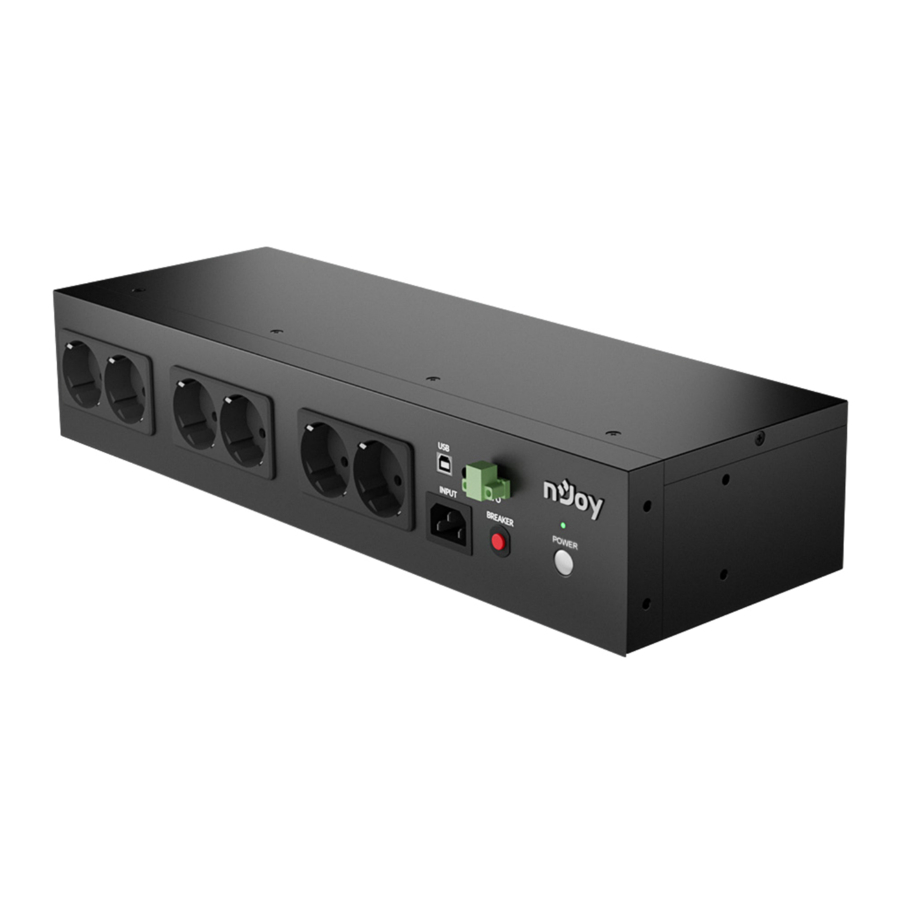

1. Power On/Off Switch
   Press the power switch for 2 seconds to turn the UPS ON or OFF.
   Mute setting: The audible alarm can be turned OFF or ON by quickly pressing the Power button twice. The default setting is for the Alarm On.
2. LED Indicators
   This LED is illuminated when the UPS is working.
3. Battery Backup & Surge Protected Outlets
   Provide battery backup and surge protection. They ensure power is provided to connected equipment over a period of time during a power failure.
4. AC Inlet
   Connect to utility power through the input power cord.
5. USB Port
   This port allows connection and communication from the USB port on the computer to the UPS unit.
6. EPO Port
   Enables an emergency UPS Power-Off from a remote location. EPO terminal open, the UPS will turn off and the output shutdown immediately.
7. Input Circuit Breaker
   The Circuit Breaker provides optimal overload protection.

Definitions for illuminated LED indicators

Trouble shooting

Brackets installation

Install the brackets with the screws provided. Align the brackets with screw holes on the side of the UPS.

Software download

PowerMaster+ Management Software provides a user-friendly interface for your power systems. The graphic user interface is intuitive and displays essential power information at a glance. Please follow procedure below to install the software.
Installation procedure:

1. Download PowerMaster+ from the website: http://www.powermonitor.software/
2. Double-click the file and follow the installation steps.

When your computer restarts, the PowerMaster+ software will appear as a blue icon located in the system tray.

Important safety instructions

This manual contains important instructions that should be followed during installation and maintenance of the UPS and batteries. Please read and follow all instructions carefully during installation and operation of the unit. Read this manual thoroughly before attempting to unpack, install, or operate.

The UPS must be connected to a grounded AC power outlet with fuse or circuit breaker protection. DO NOT plug the UPS into an outlet that is not grounded. If you need to de-energize this equipment, turn off and unplug the UPS.

The battery can energize hazardous live parts inside even when the AC input power is disconnected.

To prevent the risk of fire or electric shock, install in a temperature and humidity controlled indoor area, free of conductive contaminants. (Please see specifications for acceptable temperature and humidity range).

To reduce the risk of electric shock, do not remove the cover. There are no user serviceable parts inside.

To avoid electrical shock, turn off the unit and unplug it from the AC power source before installing a computer component.

DO NOT USE WITH OR NEAR AQUARIUMS!
To reduce the risk of fire, do not use with or near aquariums. Condensation from the aquarium can come in contact with metal electrical contacts and cause the machine to short out.

DO NOT USE WITH LASER PRINTERS! The power demands of laser printers are too large for a UPS.
