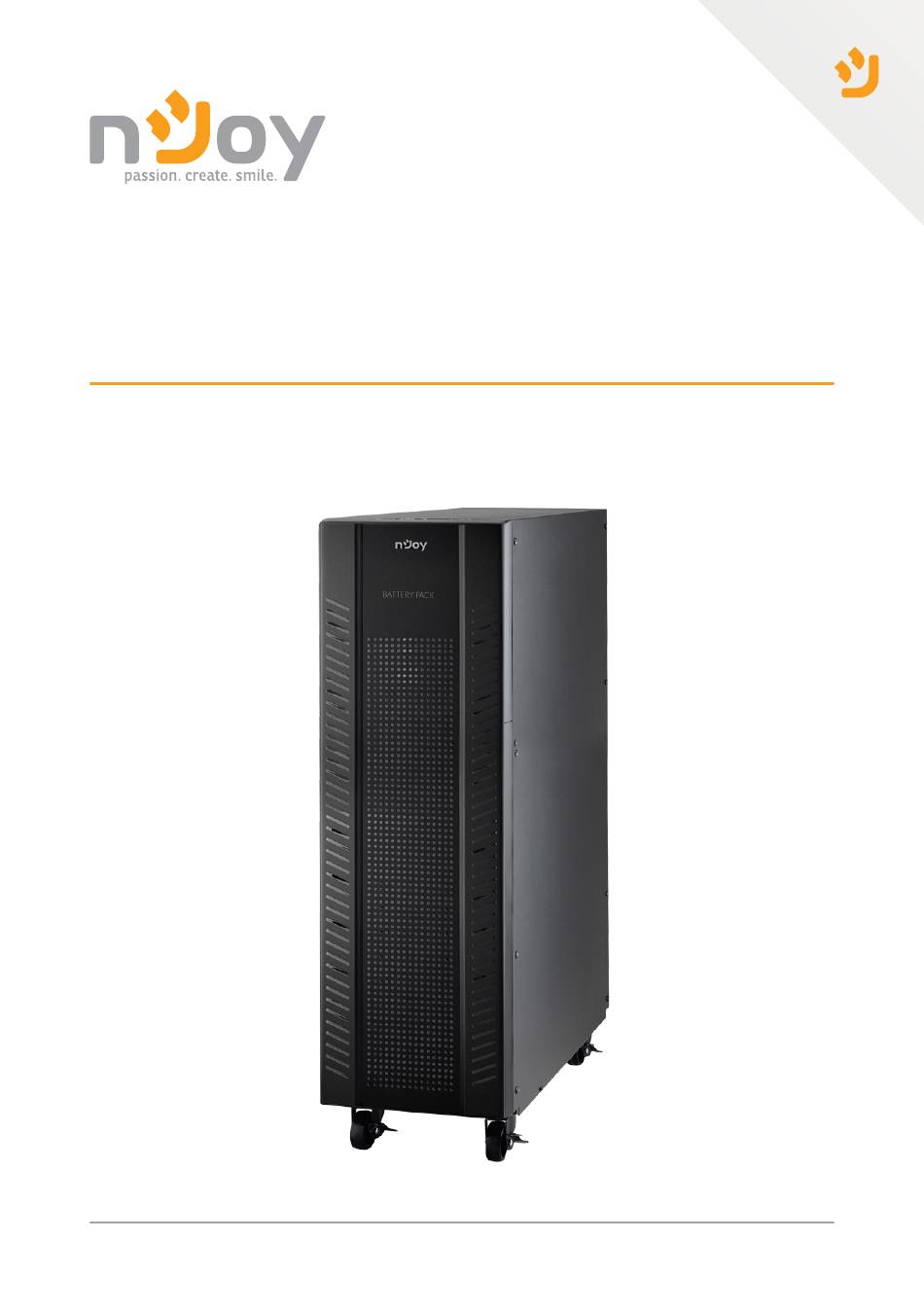

- Page 1 Garun Series 64 pieces battery cabinet UPBPTA2422CX-AZ01B Installation and battery connection for 64 pieces EBM, sequence (16+16) x 2 150.1 Before using this product, carefully read all product documentation and retain it for future reference.
- Page 2 The battery pack is a product that works only with an UPS. The battery pack will provide or extend the backup time of your UPS. Left side view Garun Series models that are compatible with this EBM model: 15K VA Garun 15KL 20K VA...
- Page 3 Step 3 On the same tray, through the left side, place Find the first tray, second another set of 10 batteries, tray, third tray and fourth Fourth tray vertically, with the terminals tray on which to place the facing outwards and down. batteries, as shown on the side picture.
- Page 4 Step 7 The following connections are made (according to the diagram on pages 8-9). Using the no.1 cables connect in series all the adjacent batteries, the (-, black) terminal of a battery connecting to the (+, red) terminal of the battery immediately adjacent.
- Page 5 Switch Front of the cabinet Front of the cabinet Switch One Red cable no.3 and one black cable no.2 and the One black cable no.2 and one red cable no.3 and the second second set of blue cables no.5 connect on the other side set of blue cables no.5 connect on the other side Right side view Bottom...
- Page 6 Step 9 Switch the power to ON. The EBM Front Front of the is now active and functioning. of the cabinet cabinet Step 8 Left side view Make sure the cables are Left side view correctly connected on each side, then slide the top lid back on and secure it in place.
