Trip distance: The total distance traveled (in km or miles) from the moment the
machine was turned On. The counter automatically resets when the machine is
turned Off.
Uptime: The time (in hours) that has passed since the machine was turned on. The
counter automatically resets when the machine is turned Off
Spray mode set (Spot plain / Spot spraying / Full coverage / Dual function / GoG
plain (optional)/ GoG spot (optional).
Usage: If a flow meter is connected, liquid use (in L/Ha or gal/acre) is displayed
instead of the uptime clock.
Sensitivity: The currently selected sensitivity preset (default 1-5 available).
GoG Sensitivity: Current selected sensitivity preset for Green on Green (optional)
(Default 1-6 available).
Flow: The current liquid flow (in L/min or gal/min).
Sun: The strength of the sunlight on a scale of 1 to 10. Extremely bright sunshine
(9-10) causes noise and reduces system accuracy.
Margin: The margin (mm) preset indicates the distance that is sprayed in front and
after a weed that has been detected. Margin preset 1-4 are available.

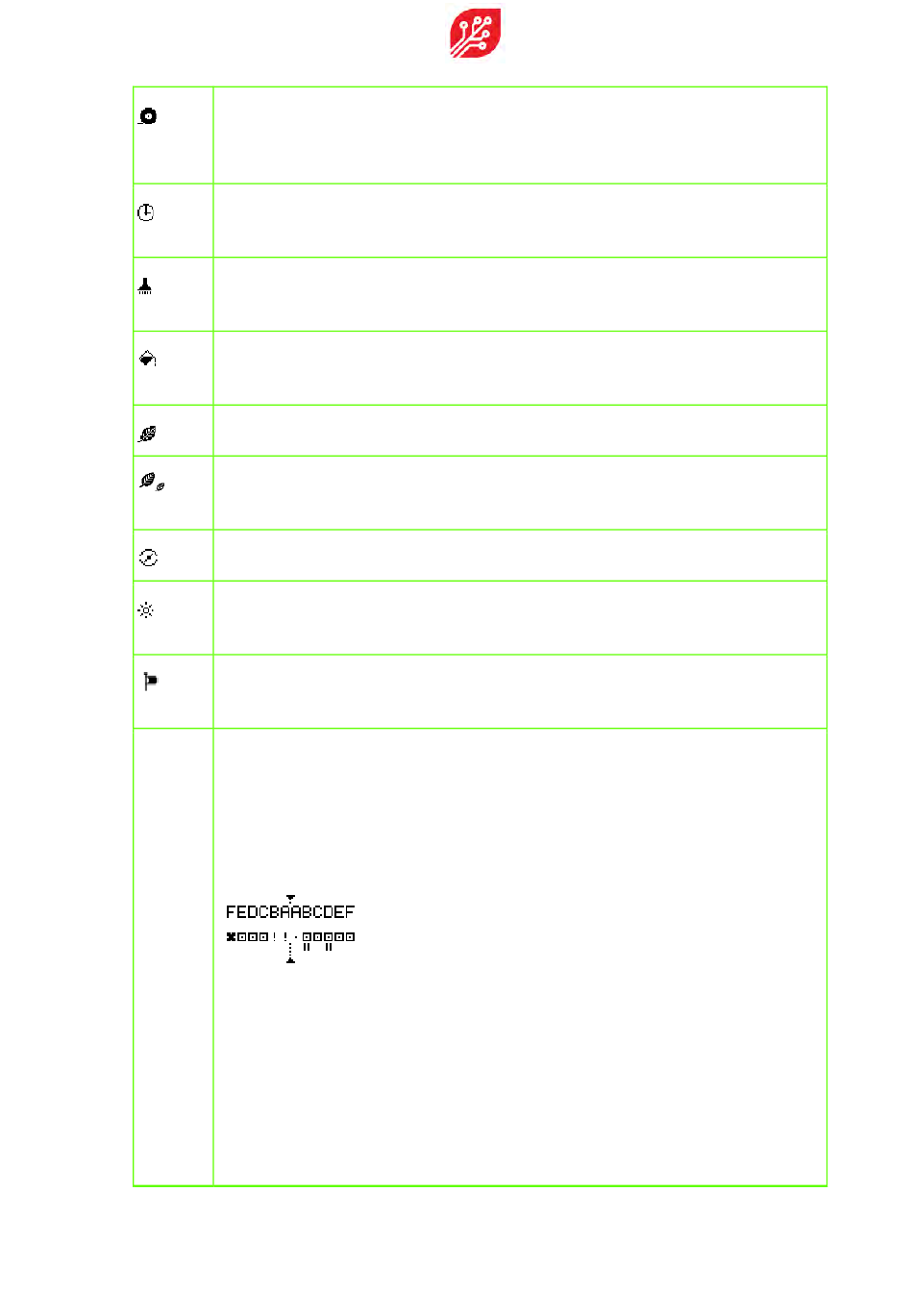

All Sensors are shown in the center of the display. Sensors are named from the
Sensors
center outwards, as seen from the back of the sprayer.
Each sensor is presented as a small square with a centered dot and is identified by
a single letter (starting with A for the sensor nearest to the driver seat).
Example: 12 sensors, 6 on either side of the boom:
• each sensor has 4 nozzles that spray a corresponding lane of the surface.
• in the example above, two sensors show activity: vertical bars indicate
nozzle activity.
• an exclamation mark indicates that there is a problem (sensor A on the left
boom)
• a dot indicates a disabled sensor
• a cross indicates an error
